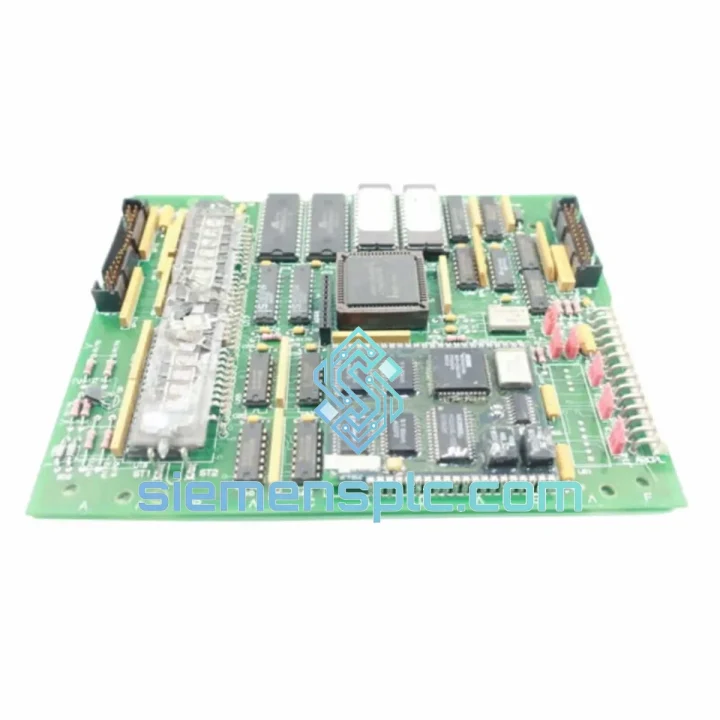

GE 531X301DCCAGG2DC DC Power Conversion Board – Mark V 531X-Series

GE 531X301DCCAGG2DC: DC/DC Power Conversion Board for Mark V Drive Control Architecture

Within GE’s 531X-series modular drive control platform, the 531X301DCCAGG2DC performs a structurally critical function: it accepts an unregulated or semi-regulated DC bus input from the upstream power supply assembly and delivers multiple isolated, conditioned DC rails to the downstream signal-processing and control boards that govern motor excitation, speed reference, and fault logic. Without stable, low-ripple DC power at the board level, the deterministic timing of the Mark V control loop degrades — gate firing pulses drift, current regulators saturate, and protective relay logic produces nuisance trips. The 531X301DCCAGG2DC eliminates this failure mode by maintaining output voltage stability within tight tolerance bands across the full operating temperature range of the drive cabinet.

The 531X-series platform was engineered for continuous-duty industrial environments where ambient temperatures reach 55 °C, vibration levels exceed 2 g RMS, and electromagnetic interference from SCR firing and motor switching is constant. The 531X301DCCAGG2DC is constructed to operate reliably under all three stressors simultaneously — a requirement that distinguishes it from general-purpose power conversion modules and makes it non-interchangeable with off-the-shelf alternatives.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 531X301DCCAGG2DC employs a transformer-isolated DC/DC topology — most likely a forward or push-pull converter architecture — which provides galvanic separation between the high-voltage DC bus and the low-voltage logic rails. This isolation is not incidental; it is a deliberate EMC design decision. In a Mark V drive cabinet, the SCR or IGBT switching events generate common-mode noise transients that can reach several hundred volts per microsecond (dV/dt). Without galvanic isolation at the power conversion stage, these transients couple directly into the 5 VDC and ±15 VDC logic rails, corrupting A/D converter readings and causing spurious interrupts in the microprocessor-based control boards.

The feedback regulation loop on this board uses optocoupler-based signal return paths, which maintain the isolation barrier while allowing the secondary-side output voltage to be sensed and corrected in real time. This closed-loop regulation ensures that load transients — caused by simultaneous switching of multiple downstream boards — do not produce output voltage excursions beyond ±2–3% of the nominal setpoint. For a 5 VDC rail, that translates to a worst-case deviation of ±150 mV, well within the operating margin of TTL and CMOS logic families used throughout the 531X board set.

The PCB substrate is a multi-layer FR4 laminate with dedicated ground planes separating primary and secondary circuits. Ground plane segmentation prevents high-frequency switching currents on the primary side from inducing ground bounce on the secondary logic ground, a failure mode that manifests as intermittent communication errors on the serial data buses between Mark V boards. Bulk capacitance on both input and output stages provides holdup time during brief DC bus sags — typically 10–20 ms — which prevents control board resets during upstream power supply transients.

Thermal management is addressed through component placement discipline: high-dissipation elements (switching transistors, rectifier diodes, and filter inductors) are positioned to maximize airflow exposure within the forced-air-cooled cabinet, and copper pour areas on the PCB act as heat spreaders to distribute junction temperatures across the board surface rather than concentrating them at individual component packages.

System Integration Benefits

• Deterministic Control Loop Stability: Regulated DC rails with <3% load regulation ensure that the Mark V CPU and regulator boards receive consistent supply voltage, preserving the timing accuracy of gate pulse generation to within microsecond tolerances.
• Galvanic Isolation Eliminates Ground Loop Faults: Transformer-coupled conversion prevents ground potential differences between cabinet sections from propagating into logic circuits, eliminating a common source of unexplained board failures in multi-drive installations.
• EMC Compliance at the Source: By filtering and isolating switching noise at the power conversion stage, the 531X301DCCAGG2DC reduces radiated and conducted emissions from the control section, supporting the drive system’s overall CE/EMC certification integrity.
• Holdup Capacity for Ride-Through: Input bulk capacitance provides 10–20 ms of output holdup during upstream bus sags, preventing control board resets that would otherwise trigger drive trips and require manual restart procedures.
• Direct Form-Fit-Function Replacement: Identical connector pinout, PCB mounting pattern, and output voltage specifications to the original OEM board — no rewiring, no firmware changes, no recalibration of downstream boards required after installation.
• Diagnostic Transparency: Stable power rails allow the Mark V fault logging system to accurately timestamp and attribute faults to their true root cause rather than masking them as power-related anomalies, improving mean time to repair (MTTR) in maintenance operations.
• Broad Thermal Operating Window: Rated for 0–55 °C cabinet ambient, covering steel mill, offshore platform, and tropical process plant environments without derating.
• Long-Term Platform Compatibility: Designed within GE’s 531X modular architecture, the board interfaces without modification to the full ecosystem of 531X-series terminal boards, regulator boards, and power supply boards, protecting the investment in existing drive infrastructure.

Quality Assurance & Global Logistics

Every 531X301DCCAGG2DC unit offered through siemensplc.com is sourced through verified industrial supply channels with full part traceability. New surplus units retain original GE factory packaging and date codes. Tested refurbished units undergo a structured verification protocol: visual inspection for physical damage, burnt components, and PCB delamination; power-on functional test against OEM output voltage specifications; and load testing under representative current draw to confirm regulation performance. Test data is documented and available upon request for critical maintenance applications.

All units are handled under ESD-safe procedures throughout receiving, testing, storage, and packing. Anti-static bags, foam cushioning, and rigid outer cartons are standard for all shipments. For air freight, units are packed to IATA standards. A 12-month warranty against manufacturing defects applies to all tested units, with clear terms provided at the time of order confirmation.

Logistics operations are based in Xiamen, China — a major international port city with direct access to DHL, FedEx, UPS, and TNT express networks. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for every shipment. For destinations requiring additional customs documentation — including EUR.1 movement certificates, FORM A GSP certificates, or specific HS code declarations — our logistics team handles preparation as part of the standard export process. Typical transit times: 3–5 business days to Europe and North America via express courier; 5–8 business days to Southeast Asia, Middle East, and South America.
