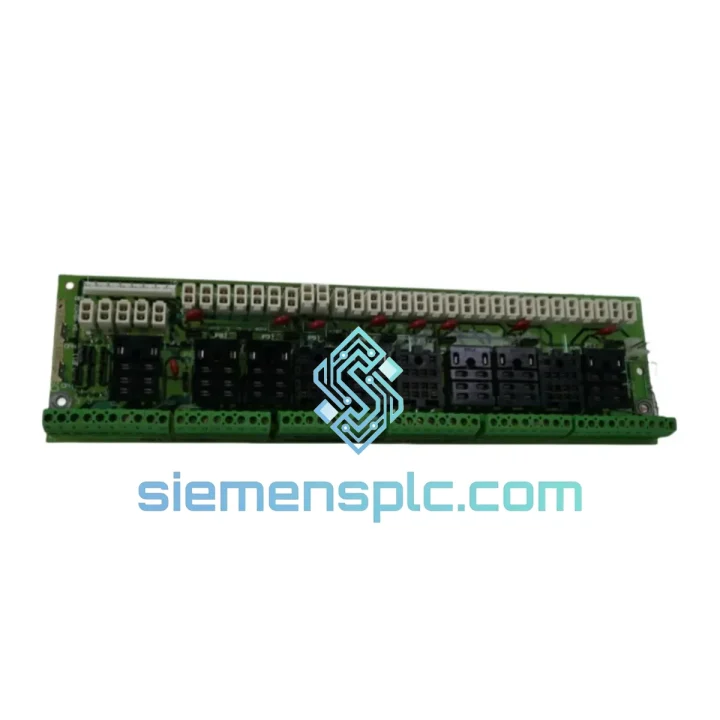

GE 531X305NTBACG1 Terminal Board

531X305NTBACG1 NTB/3TB Terminal Board: Stop the Clock on Your Downtime

Every minute your Mark V-controlled turbine or drive system sits idle, you’re bleeding money. The GE 531X305NTBACG1 NTB/3TB Terminal Board is the field-side I/O termination backbone of the Mark V platform — when it fails, nothing downstream talks. We stock this board in Xiamen and ship globally within 24 hours of order confirmation. No waiting on OEM lead times. No broker markups. Just the part, verified and on its way.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, here’s what actually goes wrong with the 531X305NTBACG1 and what to check before you even pull the board:

Symptom: Intermittent I/O faults on Mark V HMI, fault codes IOC-001 or IOFA
Root cause is almost always oxidized screw terminals or a cracked solder joint on the ribbon connector header. Before condemning the board, torque every terminal to spec (typically 0.5–0.6 Nm) and reseat the ribbon. If faults persist after power cycle, the NTB is the culprit.

Symptom: Complete loss of field I/O on one I/O processor card
The 531X305NTBACG1 maps directly to a specific I/O card address in the Mark V rack. Verify the address map in GE Application Manual GEH-5980. A mismatch between the NTB position and the I/O card’s configured address will cause a full channel blackout — the board itself is fine, but the system won’t see it.

Replacement procedure (field-verified):

1. De-energize the Mark V rack and lock out / tag out per site LOTO procedure. Do not hot-swap this board — the NTB carries live field wiring.
2. Photograph all terminal wiring before disconnection. Label each wire with its terminal number using adhesive markers. The 3TB layout (Common / Signal / Shield per channel) is easy to mis-wire under pressure.
3. Disconnect field cables from screw terminals. Note: terminals are numbered left-to-right; verify against your as-built drawing, not the generic GEH-5980 diagram, as site-specific modifications are common in legacy installations.
4. Remove the ribbon cable connecting the NTB to the I/O processor card. Handle the connector latch carefully — these are brittle on boards that have been in service for 10+ years.
5. Swap in the replacement 531X305NTBACG1. There are no DIP switches or jumpers on this board — it is passive termination hardware. No address configuration required on the NTB itself.
6. Reconnect ribbon cable first, then field wiring terminal by terminal per your labeled photograph.
7. Re-energize and monitor the Mark V HMI for I/O status. All channels should report healthy within one scan cycle. If any channel shows fault, recheck terminal torque and ribbon seating before suspecting the replacement board.
8. Firmware note: The 531X305NTBACG1 is passive hardware — no firmware resides on this board. Firmware compatibility concerns apply to the I/O processor card, not the NTB. Confirm your I/O card firmware revision matches the Mark V system software version per GEH-5980 revision matrix.

Common mistake to avoid: Engineers sometimes confuse the NTB (531X305NTBACG1) with the I/O processor card it connects to. The NTB is the passive termination board — it has no active components, no firmware, and no self-addressing logic. If you’re seeing processor faults rather than I/O channel faults, the NTB is not your problem.

Reliability in Harsh Conditions

The 531X305NTBACG1 was engineered for the environments where Mark V systems actually live — not climate-controlled server rooms, but turbine halls, compressor stations, and refinery control buildings where ambient conditions are anything but gentle.

The PCB substrate is rated for continuous operation at 60°C ambient, with short-term excursions to 70°C without derating. The screw-terminal block construction eliminates the contact degradation that plagues connector-based alternatives in high-vibration installations — gas turbine skids running at 3,000–3,600 RPM generate continuous vibration that loosens crimped connections within months. Screw terminals, properly torqued, hold indefinitely.

Conformal coating on the PCB provides protection against condensation and airborne contaminants — a real concern in coastal petrochemical facilities and offshore platforms where salt-laden air accelerates corrosion on unprotected boards. Each unit we ship has been inspected for coating integrity; boards showing delamination or corrosion are rejected before they reach our warehouse shelf.

EMI immunity is inherent in the 3TB terminal layout: the dedicated shield terminal per channel provides a low-impedance path to chassis ground for cable shields, suppressing common-mode noise from variable frequency drives and high-current switching equipment operating in the same panel. In high-EMI environments, this is not optional — it’s the difference between stable I/O and chronic nuisance faults.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. When you place an order before 18:00 CST, the unit ships same day. Here’s what the timeline looks like from your purchase order to your hands:

• Order confirmation: Within 2 hours of inquiry during business hours (09:00–18:00 CST, Mon–Sat)
• Packing & export documentation: Commercial invoice, packing list, and certificate of conformance prepared same day
• Carrier handoff: DHL Express or FedEx International Priority, depending on destination and urgency
• Transit to Southeast Asia / East Asia: 1–2 business days
• Transit to Europe / Middle East: 2–4 business days
• Transit to North America: 3–5 business days
• Transit to South America / Africa: 4–7 business days

All shipments include real-time tracking. The board ships in an anti-static ESD bag inside a foam-padded carton — the same packaging spec used for OEM distribution. For orders requiring customs clearance documentation, HS code 8537.10 applies; we provide a complete commercial invoice with accurate declared value to prevent customs delays.

For plant shutdowns or emergency outages where every hour counts, contact us directly via WhatsApp for expedited processing. We have handled same-day air freight arrangements for critical outage situations — it costs more, but it’s cheaper than another day of lost production.
