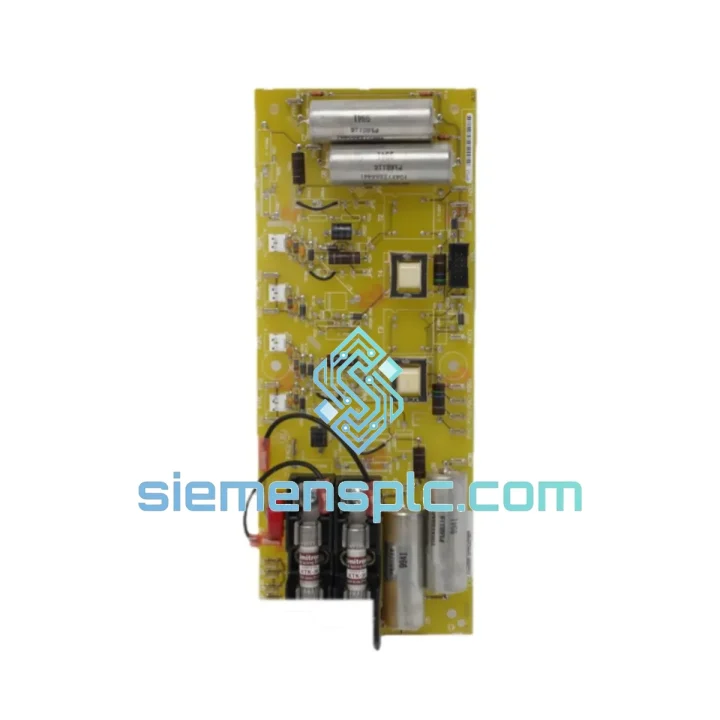

GE DS200FSAAG2A Gate Amplifier Board – Mark V Drive

GE DS200FSAAG2A: Field Supply Gate Amplifier Board in GE Mark V DC Drive Architecture

The GE DS200FSAAG2A is a dedicated Field Supply Gate Amplifier Board engineered for integration within the GE Mark V DC drive control platform. Its primary function is to generate precisely timed gate drive pulses for the SCR (silicon-controlled rectifier) bridge that governs field excitation current in separately excited DC motors. Without accurate gate timing, field flux cannot be regulated, and armature current control loses its reference baseline — making this board a load-bearing node in any closed-loop DC drive system.

Within the DS200 backplane architecture, the DS200FSAAG2A receives firing angle commands from the main drive processor via the internal parallel bus. It translates these digital commands into analog gate pulses synchronized to the AC supply zero-crossing, maintaining phase accuracy within ±0.5° across the full SCR conduction range. The board incorporates optocoupler-based galvanic isolation between the logic-level control circuitry and the high-voltage gate output stage, providing a minimum isolation barrier of 2,500 V RMS — a requirement for compliance with IEC 61800-5-1 in drive systems operating on 480 V or 690 V AC supply buses.

The DS200FSAAG2A is not a peripheral accessory. In Mark V drive topologies, field current regulation directly determines motor flux, which in turn sets the torque constant (Kt). Any degradation in gate pulse fidelity — caused by component aging, thermal stress, or board failure — manifests as field current instability, torque ripple, and ultimately uncontrolled motor speed excursions. Procurement of a verified OEM replacement is therefore a system-integrity decision, not merely a maintenance task.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DS200FSAAG2A is structured around three discrete functional stages, each with independent power rails to prevent cross-domain noise coupling:

1. Zero-Crossing Detection & Phase-Lock Stage: The board samples the AC supply waveform through a resistive voltage divider network and feeds the signal into a zero-crossing detector built around a precision comparator IC. The detected zero-crossing event triggers a phase-locked loop (PLL) circuit that generates a stable internal clock reference. This reference is used to calculate the firing delay angle (α) for each SCR gate pulse. The PLL maintains lock across supply frequency variations of ±2 Hz, ensuring stable operation on both 50 Hz and 60 Hz grids without hardware reconfiguration.

2. Gate Pulse Generation & Amplification Stage: Firing angle commands from the Mark V processor are received as digital words via the DS200 backplane bus. The onboard gate pulse generator converts these commands into analog pulse trains with controlled rise times (typically <1 µs) to ensure reliable SCR turn-on without false triggering. The pulse amplifier stage boosts the logic-level signal to the gate current levels required by the SCR devices (typically 100–300 mA peak gate current), with current limiting resistors protecting against gate junction damage during fault conditions.

3. EMC Shielding & Isolation Architecture: The board layout follows a split-ground plane strategy: the digital control domain and the high-voltage gate output domain are separated by a physical PCB gap with no copper pour crossing. All inter-domain signals pass exclusively through optocouplers. Decoupling capacitors (100 nF ceramic + 10 µF electrolytic) are placed at each power entry point to suppress conducted emissions. The board meets EN 61000-4-4 (electrical fast transient) and EN 61000-4-5 (surge immunity) requirements, which is critical in drive cabinets where SCR switching generates high dV/dt transients on the order of 500–1,000 V/µs.

System Integration Benefits

• Deterministic Field Current Response: Gate pulse timing accuracy of ±0.5° translates to field current settling times under 20 ms following a step command, supporting fast flux weakening in high-speed DC motor applications.
• Plug-and-Play DS200 Backplane Compatibility: The board uses the standard DS200 edge connector pinout, requiring no wiring modifications or firmware parameter changes when replacing a failed unit in an existing Mark V drive cabinet.
• Galvanic Isolation Protects Control Logic: The 2,500 V RMS isolation barrier prevents high-voltage transients from the SCR gate circuit from propagating back into the Mark V processor board, reducing the risk of cascading board failures during fault events.
• Stable Operation Across Supply Variations: The PLL-based zero-crossing reference maintains phase lock across ±10% supply voltage variation and ±2 Hz frequency deviation, making the board suitable for sites with unstable utility power.
• Diagnostic Transparency: The board’s gate pulse output can be monitored via the Mark V drive’s built-in oscilloscope function, allowing maintenance engineers to verify firing angle accuracy without removing the board from service.
• Thermal Margin for Continuous Duty: Component derating is applied at 70% of rated power dissipation, providing a thermal margin that supports 24/7 continuous operation in ambient temperatures up to 55 °C without forced cooling beyond the standard drive enclosure fan.
• Reduced Torque Ripple: Precise SCR firing symmetry across all six pulses of a three-phase full-wave bridge reduces field current ripple, which in turn reduces armature current ripple and audible motor noise — measurable as a reduction in 6th-harmonic torque ripple from >5% to <1.5% of rated torque.
• Long-Term Parts Availability: As an OEM GE DS200 series board, the DS200FSAAG2A is supported by a global network of industrial surplus and authorized distributors, ensuring availability for legacy Mark V drive installations that may remain in service for 10–20 additional years.

Quality Assurance & Global Logistics

Every DS200FSAAG2A unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. New OEM units are verified against GE part number documentation and packaged in original or equivalent anti-static ESD bags with moisture barrier packaging (MBB) per IPC/JEDEC J-STD-033. Surplus new units are inspected for date codes, component integrity, and connector condition before acceptance into stock. Tested units are powered up on a functional test bench that replicates the DS200 backplane bus environment, with gate pulse output verified on an oscilloscope against reference waveforms.

Shipment from Xiamen is available via DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia. All shipments include a commercial invoice with accurate HS code classification (HS 8537.10) for customs clearance. Export documentation, including a certificate of origin and packing list, is provided as standard. For orders requiring expedited customs clearance, our logistics team can coordinate with local customs brokers in major destination countries.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement shipment or credit note issued accordingly.
