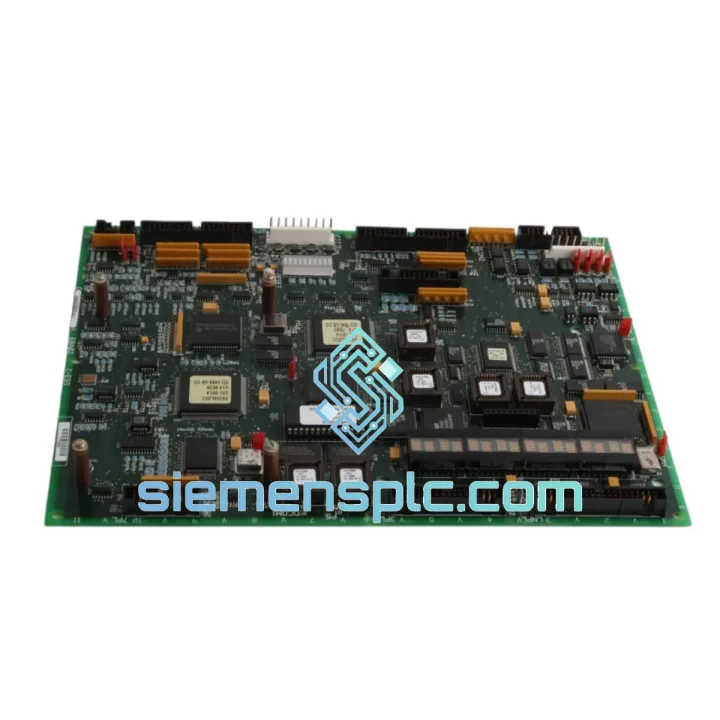

GE DS200LDCCH1AKA Communication Controller Card – Mark VI

DS200LDCCH1AKA: LAN Data Communication Controller in GE Mark VI Distributed Turbine Control Architecture

The DS200LDCCH1AKA is a LAN Data Communication Controller (LDCC) card manufactured by GE’s Power Controls Division for deployment within the Mark VI Turbine Control System. Its primary function is to arbitrate and relay deterministic data traffic across the IONet backplane bus — the proprietary high-speed serial network that interconnects processor boards, I/O packs, and supervisory interfaces within a Mark VI control cabinet. Without a correctly functioning LDCC, the Mark VI controller loses its ability to synchronize cross-channel data in Triple Modular Redundancy (TMR) configurations, directly compromising turbine protection logic integrity.

In a typical Mark VI rack assembly, the DS200LDCCH1AKA occupies a dedicated VME-format slot within the VCMI (VME Communication Module Interface) chassis. It interfaces upstream with the VCRC or VTUR processor boards via the backplane IONet bus, and downstream with distributed I/O packs — including VPRO protection modules, VDIO digital I/O packs, and VAIO analog I/O packs — as well as HMI workstations and plant historian servers. In TMR configurations, the card also manages lateral peer-to-peer communication between the three independent controller channels (R, S, T), enabling hardware-level voting arbitration for fault detection and automatic channel isolation.

This card is a direct OEM component, not a third-party reproduction. It is applicable to GE Frame 6B, 7E, 7EA, and 9E gas turbine control panels, GE steam turbine Mark VI cabinets, and combined-cycle power plant DCS integration nodes. It is also the standard replacement component for retrofit projects migrating from Mark IV or Mark V communication architectures to Mark VI.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

IONet Bus Arbitration Architecture: The DS200LDCCH1AKA implements a token-passing arbitration scheme on the IONet backplane bus. Each LDCC card holds a time-slotted transmission window, preventing bus contention between multiple VME boards. This deterministic scheduling ensures that critical protection data — such as turbine overspeed trip signals — is never delayed by lower-priority diagnostic traffic. The hardware scheduler operates independently of the host processor, meaning bus arbitration continues even during a processor board soft reset.

CRC-Based Signal Integrity: All data frames transmitted across the IONet bus are wrapped with a 16-bit CRC checksum computed in hardware by the LDCC’s onboard ASIC. Frames failing CRC validation are discarded at the receiver without propagating corrupted data to the processor. A hardware counter tracks consecutive CRC failures; upon reaching a configurable threshold, the card asserts a fault flag on the backplane, triggering the Mark VI’s built-in diagnostic alarm without requiring software intervention.

EMC Design and Isolation: The DS200LDCCH1AKA incorporates transformer-coupled isolation on all external serial interfaces (RS-422/RS-485), providing galvanic separation between the VME backplane ground plane and field wiring. This isolation barrier is rated to withstand common-mode transients consistent with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) test levels, which are standard requirements for turbine hall environments where high-energy switching events from generator excitation systems generate significant conducted interference.

Watchdog Timer and Autonomous Fault Response: An independent hardware watchdog timer monitors the LDCC’s internal microcontroller. If the microcontroller fails to service the watchdog within a 100 ms window — indicating a firmware hang or hardware fault — the watchdog asserts a hardware reset and simultaneously drives a fault output on the backplane. In TMR configurations, this fault output is read by the peer VCRC boards, which can then exclude the faulted channel from the voting logic without waiting for a software-level health report. This hardware-first fault propagation reduces the latency between fault occurrence and protective action to under 150 ms.

Thermal Management: The card’s power dissipation is managed through a combination of low-power CMOS logic and a passive aluminum heat spreader bonded to the primary ASIC. The thermal design is validated for continuous operation at the rated 60°C ambient without forced airflow, relying on the Mark VI cabinet’s standard convection cooling. This eliminates fan-related failure modes in the communication subsystem.

System Integration Benefits

• Deterministic Real-Time Response: Token-passing IONet arbitration guarantees fixed worst-case latency for protection-class data frames, enabling the Mark VI to meet IEC 61511 SIL 2 response time requirements for turbine trip functions.
• Transparent Diagnostic Visibility: Hardware CRC counters and watchdog fault flags are mapped directly into the ToolboxST diagnostic display, giving plant engineers real-time visibility into communication health without requiring custom scripting or third-party tools.
• Zero-Modification Slot Replacement: The DS200LDCCH1AKA is a direct plug-in replacement within any Mark VI VCMI rack slot. No backplane rewiring, jumper changes, or firmware re-flashing is required for a like-for-like swap.
• TMR Voting Integrity: The card’s hardware fault output integrates directly with the Mark VI’s cross-channel voting logic, ensuring that a failed LDCC is automatically excluded from the voting pool within one scan cycle, preventing a single-card failure from propagating to a spurious trip or a missed trip.
• Scalable Topology Support: The DS200LDCCH1AKA supports both simplex and TMR configurations within the same hardware revision. The operating mode is selected entirely through ToolboxST configuration parameters, allowing the same spare card to serve multiple turbine units with different redundancy architectures.
• Historian and HMI Connectivity: The card’s Ethernet interface (where fitted) provides a direct data path to GE’s Cimplicity HMI and plant historian systems, enabling high-resolution trend data capture at up to 100 ms sample intervals without loading the processor board’s primary control loop.
• Retrofit Compatibility: The DS200LDCCH1AKA is the standard communication board used in Mark V-to-Mark VI migration projects. Its IONet interface is backward-compatible with Mark VI I/O packs originally commissioned under earlier firmware baselines, reducing the scope of I/O pack replacement during control system upgrades.
• Reduced Unplanned Downtime: Hardware-level fault detection and autonomous fault reporting allow maintenance teams to identify a degraded LDCC during scheduled inspection windows rather than discovering the failure during a turbine trip event. Mean time to repair (MTTR) is reduced because the faulty board is identified by the diagnostic system before the unit is taken offline.

Quality Assurance & Global Logistics

Each DS200LDCCH1AKA unit supplied through siemensplc.com undergoes a structured pre-shipment verification process. Visual inspection confirms board-level physical integrity — no cracked solder joints, corroded traces, or damaged connectors. Label and serialization data are cross-referenced against OEM records where available. Functional verification is performed using a Mark VI-compatible test bench to confirm IONet bus participation and fault output behavior prior to packaging.

Units are packaged in anti-static ESD shielding bags, placed within foam-lined rigid cartons rated for international air freight handling. Shipments originate from our warehouse in Xiamen, China, with dispatch via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — carrier selection based on destination and urgency. Standard dispatch lead time is 3–5 business days from order confirmation. Expedited same-day dispatch is available for confirmed in-stock units with orders placed before 14:00 CST.

A certificate of conformance and pre-shipment inspection report are issued with every order. For power utility procurement departments requiring additional documentation — including chain-of-custody records or third-party inspection — these can be arranged at the quotation stage. All units carry a 12-month warranty against manufacturing defects, with direct technical support from our engineering team throughout the warranty period.
