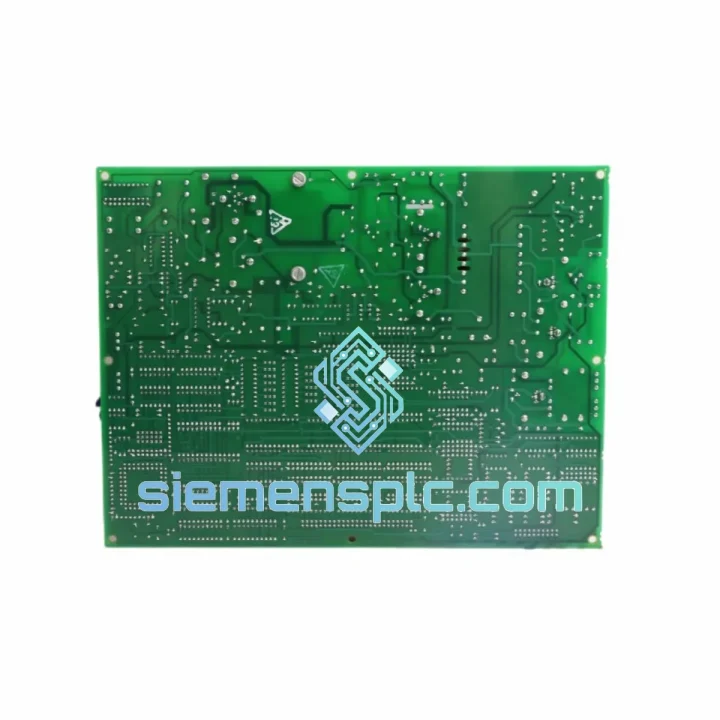

GE DS200TCEAG2BTF Turbine Control Board

DS200TCEAG2BTF: Your Mark V Is Down — Every Minute Costs Real Money

A failed overspeed trip card at 2 AM is not a scheduled maintenance event. It is a production crisis. Gas turbines, steam turbines, and combined-cycle units running GE Mark V control systems depend on the DS200TCEAG2BTF as the primary hardware layer for emergency overspeed protection. When this board fails, the unit cannot be safely returned to service — period. There is no bypass, no software patch, no temporary workaround that satisfies safety interlock requirements. You need the exact board, the correct hardware revision, and you need it before your next shift change.

We maintain verified stock of the DS200TCEAG2BTF in our Xiamen warehouse. Every unit is bench-tested under functional load before it is cleared for shipment. Revision suffix confirmed against PCB silkscreen. Anti-static packaged and ready for same-day dispatch via DHL or FedEx international express. No OEM lead times. No unverified surplus pulled from scrapped panels. One call, one shipment, one path back to operation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with Mark V systems surfaces the same DS200TCEAG2BTF failure patterns repeatedly. Here is what the alarm logs actually indicate and what the correct response is — not the textbook answer, the field answer.

TCEA / TCET Diagnostic Alarm on Mark V HMI
This alarm targets the TCE card slot directly. Before condemning the board, pull it, inspect the 96-pin backplane connector under magnification, and reseat firmly. Oxidized or mechanically deformed pins account for roughly 30% of TCE alarms that initially present as board failures. If the alarm clears on reseat but returns within 48 hours, the onboard communication controller has degraded beyond recovery. Replace the DS200TCEAG2BTF — reseating is no longer a valid intervention.

Spurious Overspeed Trips Below Rated Speed
Unit trips at 95–98% of rated RPM with no confirmed overspeed event from independent speed measurement? The comparator reference circuit on the DS200TCEAG2BTF has drifted due to thermal cycling. This is a component-level failure, not a calibration offset. Recalibration will restore normal operation for days to weeks, then the drift returns. Replace the board. Recalibrate on the new unit. Do not recalibrate your way through a hardware failure.

Single-Channel Dropout (R, S, or T)
Mark V’s 2-out-of-3 voting architecture means a single channel loss generates a diagnostic alarm without tripping the unit. This is not a low-priority item to defer to the next planned outage. One additional channel failure from any cause — power transient, vibration fatigue, secondary component failure — produces an unplanned trip. If your next planned maintenance window is more than two weeks out, treat a single-channel dropout as an emergency. Schedule replacement now.

IONet Communication Loss to TCE Slot
If TCCA / TCCB / TCCC processor boards report loss of communication with the TCE slot and backplane connector inspection is clean, the board’s IONet interface logic has failed. This failure mode does not respond to firmware reload or parameter reset. The DS200TCEAG2BTF requires physical replacement.

Replacement — Configuration Points That Cannot Be Skipped

• Revision matching is mandatory: The suffix G2BTF encodes hardware and firmware revision. A mismatched revision installed into a Mark V cabinet can produce voting logic errors that are difficult to diagnose and operationally dangerous. Read the full part number from the PCB silkscreen of the board being replaced — not from the system BOM, which may not reflect field modifications made during previous maintenance cycles.
• DIP switch documentation before extraction: The DS200TCEAG2BTF carries onboard DIP switches that configure overspeed trip setpoint scaling and channel assignment. Photograph the switch bank before removing the failed board. Replicate exact switch positions on the replacement unit. Factory default positions are not necessarily correct for your turbine’s rated speed and trip setpoint — they reflect a generic configuration, not your installation.
• LOTO is not optional: The Mark V cabinet operates at hazardous voltages. The TCE slot does not support hot-swap under any operating condition. Full lockout/tagout is mandatory before card extraction. No exceptions.
• Post-installation overspeed test: After seating the replacement board, execute the Mark V overspeed test procedure per GEH-6195 or your site-specific test document. Verify all three channels respond correctly and that the HMI shows no diagnostic alarms before returning the unit to service. A misconfigured overspeed board is operationally more hazardous than a failed one.
• Firmware compatibility verification: If your Mark V system has received TCCA/TCCB firmware updates since original commissioning, confirm the DS200TCEAG2BTF revision is compatible with the current software version. Contact us with your Mark V software release number before ordering — we will verify compatibility at no charge.

Reliability in Harsh Conditions

Turbine control enclosures are not clean-room environments. Sustained elevated temperatures from continuous operation, mechanical vibration transmitted through the turbine foundation, condensation cycles in coastal and tropical installations, and airborne particulates in petrochemical and refinery facilities all degrade electronics that were not specifically engineered for the application.

The DS200TCEAG2BTF’s PCB uses high-Tg FR4 laminate, which maintains dimensional stability and dielectric integrity at the sustained temperatures found inside Mark V cabinets during continuous operation — temperatures that cause standard FR4 to creep and delaminate over multi-year service cycles. The component side carries conformal coating that provides a physical barrier against moisture ingress, salt-laden air, and conductive particulates. This matters in coastal power stations and offshore platform installations where humidity and salt content would otherwise attack unprotected PCB surfaces within months.

The 96-pin DIN edge connector uses gold-plated contacts. This is a specification detail that becomes critical when a board spends years in a spare parts cabinet before being called into emergency service. Gold contacts do not oxidize. Tin contacts do — and an oxidized contact on an overspeed trip board is a failure waiting to happen at the worst possible moment.

Vibration is a constant in any turbine installation. The board’s component placement and PCB trace routing were validated against GE’s internal vibration and shock specifications for turbine control hardware. Through-hole construction at mechanically critical circuit nodes provides robustness that surface-mount-only designs cannot deliver in high-vibration environments where solder joint fatigue is a real failure mechanism over multi-year service life.

Every DS200TCEAG2BTF dispatched from our Xiamen facility passes a functional bench test under load before packaging. Visual inspection alone does not qualify a board for shipment. If a unit fails functional testing, it does not ship — regardless of order urgency or stock pressure.

Global Express Logistics

Xiamen Gaoqi International Airport (XMN) operates direct cargo connections to DHL and FedEx international hubs. Our warehouse is 25 minutes from the cargo terminal, giving us genuine next-flight-out capability for emergency orders confirmed before the daily cutoff.

• DHL Express Worldwide: 2–4 business days to Europe, Middle East, Southeast Asia, and North America. Full track-and-trace from warehouse pickup through final delivery at your facility.
• FedEx International Priority: 1–3 business days to major industrial destinations in North America and Europe. The correct choice when you have a hard delivery deadline tied to a maintenance window.
• Same-Day Dispatch: Orders confirmed and payment cleared before 14:00 CST ship the same calendar day on the first available outbound flight. Orders received after cutoff ship the following morning.
• Export Documentation: Commercial invoice, packing list, certificate of origin, and HS code declaration prepared as standard on every shipment. We manage all export customs clearance from China — your receiving team handles import clearance at destination only.
• Emergency Freight: For active plant shutdowns where standard express transit is too slow, we coordinate charter air freight or hand-carry courier arrangements. Contact us directly on WhatsApp for emergency logistics — do not use email for time-critical situations where hours matter.
• Packaging Standard: All boards ship double-bagged in anti-static ESD packaging, seated in foam-lined rigid cartons with desiccant packs. Packaging is specified to survive international express freight handling conditions, not domestic parcel delivery standards.
