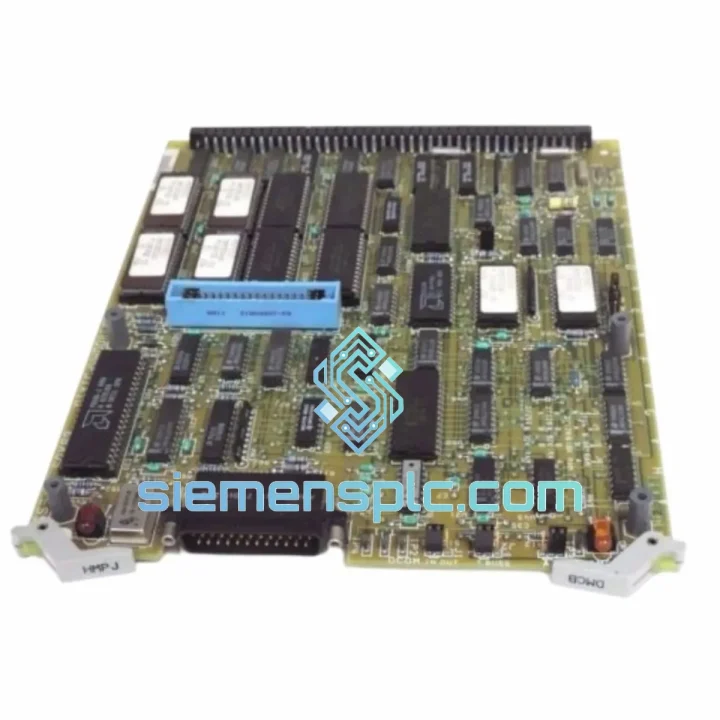

GE DS3800HMPJ1A1D HMI Panel Board

DS3800HMPJ1A1D Down? Every Minute of Turbine Downtime Costs You — We Ship Today

Your gas turbine is offline. The control room is silent. Maintenance is on the phone. You’ve traced the fault to the GE DS3800HMPJ1A1D HMI panel board — the operator interface backbone of the Speedtronic MKIV system. You don’t have time for a 6-week OEM lead time. Neither do we.

We stock the DS3800HMPJ1A1D in Xiamen and ship same-day via DHL Express or FedEx International Priority. Most customers in Southeast Asia, the Middle East, and Europe receive their unit within 48–72 hours of order confirmation. That’s the difference between a 3-day outage and a 3-week one.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work on Speedtronic MKIV systems, these are the failure patterns and swap pitfalls I see most often with the DS3800HMPJ1A1D:

Common Fault Indicators:

• Blank or frozen operator display — the HMI panel board drives the local operator interface. A dead screen with the rest of the MKIV rack healthy almost always points here first.
• Fault code L3TRIP or L86G with no upstream cause — corrupted HMI-to-controller communication can generate spurious trip signals. Swap the board before chasing the logic.
• Intermittent keypad response — membrane contact degradation on the panel PCB. Cleaning rarely fixes this permanently; replacement is the correct call.
• Watchdog reset loops — if the MKIV controller is cycling but the HMI never completes its boot sequence, the DS3800HMPJ1A1D firmware ROM may be corrupted.

Replacement Procedure — Field Checklist:

1. Controlled shutdown first. Never hot-swap the HMI board on a running turbine. Initiate a normal shutdown sequence and confirm the unit is in STOP/RESET state before opening the panel.
2. Document the existing board revision. Check the silkscreen on the PCB edge — the suffix letters (e.g., J1A1D) indicate hardware revision. Confirm your replacement matches. Mixing revisions within the same MKIV rack can cause communication handshake failures.
3. No DIP switch configuration required on the DS3800HMPJ1A1D itself — the board is auto-addressed by the MKIV backplane. However, verify the rack slot assignment in the system configuration file has not been altered since the last maintenance window.
4. Firmware compatibility check. If your MKIV system has been updated to a later software release (post-1990s field upgrades are common), confirm the replacement board’s ROM version is compatible. We can advise on this — send us your system’s software revision label before ordering if unsure.
5. Connector seating. The card-edge connector on MKIV boards is notorious for fretting corrosion in high-humidity environments. Clean the backplane slot contacts with IPA before inserting the new board. Seat firmly and check the retaining latch.
6. First power-on. Apply power and observe the HMI boot sequence. A healthy DS3800HMPJ1A1D will display the GE Speedtronic splash screen within 15–20 seconds. If you see a blank screen or error code, check backplane power rails (+5V, ±15V) before condemning the replacement board.
7. Functional test before restart. Cycle through all operator display screens, verify alarm acknowledgment functions, and confirm setpoint entry is responsive before initiating a turbine start sequence.

Reliability in Harsh Conditions

The DS3800HMPJ1A1D was designed for the turbine hall — not a climate-controlled server room. GE engineered the Speedtronic MKIV card set to operate continuously in environments that would destroy consumer-grade electronics within weeks.

The board’s PCB substrate uses a high-Tg FR4 laminate rated for sustained thermal cycling between cold startup conditions and the elevated ambient temperatures typical of gas turbine enclosures. Conformal coating on the component side provides a barrier against condensation, airborne particulates, and the hydrocarbon vapors common in petrochemical and power generation facilities.

Vibration tolerance is a design requirement, not an afterthought. The card-edge connector system and through-hole component mounting used on the DS3800HMPJ1A1D maintain electrical continuity under the continuous low-frequency vibration generated by large rotating machinery — a failure mode that destroys surface-mount-only designs over time.

Every unit we supply has been stored in climate-controlled, ESD-safe conditions. Boards that have been in uncontrolled storage — even genuine GE parts — can suffer from electrolytic capacitor degradation and connector oxidation. We inspect and test before shipment. You get a board that works on the first power-on, not one that fails six months later.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s how your order moves from our shelf to your control panel:

• Order Confirmed (Day 0): Stock reserved, export documentation prepared — commercial invoice, packing list, HS code 8537.10 classification, certificate of origin.
• Same-Day Dispatch: Orders confirmed before 15:00 CST ship the same business day. ESD-safe inner packaging, foam-lined outer carton, fragile and orientation labels applied.
• DHL Express / FedEx International Priority: Transit times — Southeast Asia: 1–2 days; Middle East / India: 2–3 days; Europe: 2–4 days; Americas: 3–5 days.
• Tracking Provided: AWB number sent to your email within 2 hours of carrier pickup. Real-time tracking link included.
• Customs Clearance Support: We prepare complete export documentation to minimize customs hold risk. For regulated markets, we can provide additional compliance documentation on request.
• Bulk Orders: For 5+ units or full BOM sourcing, contact us for consolidated shipment options and volume pricing.

We’ve shipped DS3800HMPJ1A1D boards to power plants in Saudi Arabia, refineries in India, and utility operators in Germany — all on emergency timelines. We know what’s at stake when your turbine is down.
