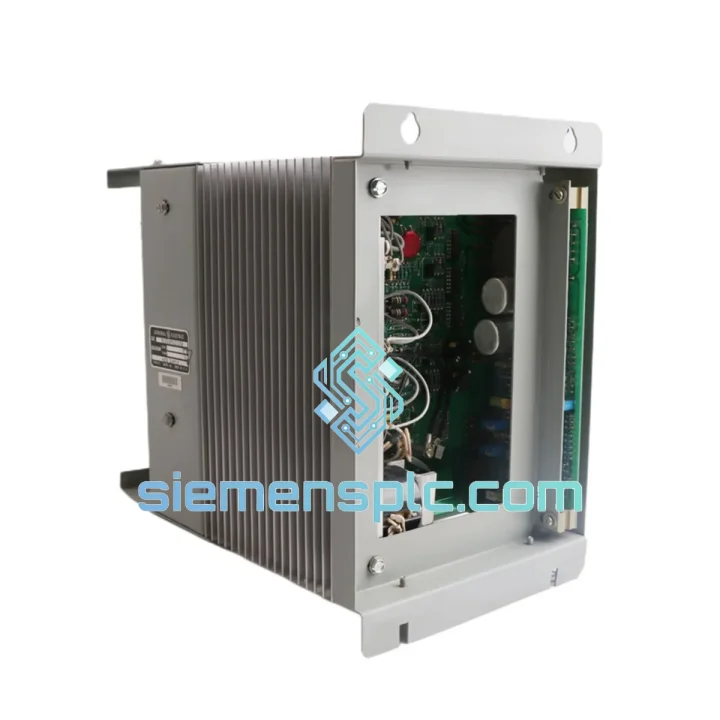

GE DS3820PSCC1D1B Power Supply Module – Mark VI Speedtronic

GE DS3820PSCC1D1B: Regulated DC Power Distribution Board for Mark VI Speedtronic Turbine Control Architecture

The DS3820PSCC1D1B is a dedicated power supply board engineered for the GE Mark VI Speedtronic turbine control platform — one of the most widely deployed gas turbine management architectures in global power generation, oil & gas, and petrochemical industries. Within the Mark VI cabinet structure, this board occupies a non-negotiable position in the power distribution hierarchy: it accepts upstream AC or DC input, conditions it through regulated conversion stages, and delivers stable, isolated DC rails to the downstream processor and I/O boards that execute fuel control, flame detection, vibration monitoring, and protective relay logic.

Unlike generic industrial power supplies, the DS3820PSCC1D1B is designed to the exact form factor, connector pinout, and output specification of the Mark VI rack system. It interfaces directly with the backplane bus, supplying the VCMI, VTUR, VPRO, and VGEN boards without requiring any intermediate wiring adaptation. This tight hardware integration eliminates the voltage drop and impedance mismatch risks that arise when non-OEM substitutes are used in high-reliability turbine control applications.

In gas turbine power plants operating on GE Frame 5, Frame 6, Frame 7, or Frame 9 units, the DS3820PSCC1D1B is the single point of power authority for the control rack. A degraded or failed unit does not produce a graceful degradation — it produces a turbine trip. For MRO teams managing planned outages or responding to unplanned shutdowns, having a verified, spec-matched replacement available is the difference between a four-hour restoration and a multi-day production loss event.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DS3820PSCC1D1B operates within a power distribution topology that prioritizes fault containment over raw efficiency. At the board level, the design separates the input conditioning stage from the output regulation stage using discrete conversion circuitry, which means a transient on the input bus — whether from a utility grid disturbance or a local switching event — does not propagate directly to the logic supply rails feeding the VCMI processor or the I/O boards.

The board’s overcurrent protection architecture uses staged current limiting rather than a single fuse-blow mechanism. This approach allows the protection circuit to respond to a downstream short circuit by throttling output current before tripping, giving the system controller time to log a diagnostic event and initiate a controlled shutdown sequence rather than an abrupt power loss. In turbine control applications, this distinction matters: an abrupt power loss to the VPRO board during active fuel control can leave the turbine in an undefined state, whereas a controlled shutdown preserves the last-known state in non-volatile memory.

EMC performance is addressed through board-level filtering on both the input and output sides. The DS3820PSCC1D1B includes common-mode chokes and decoupling capacitor arrays at the backplane connector interface, suppressing high-frequency noise that would otherwise couple into the analog measurement circuits on adjacent I/O boards. In turbine environments where large motor starters, variable frequency drives, and high-current switching loads operate in close proximity to the control cabinet, this filtering is not a design luxury — it is a functional requirement for maintaining measurement accuracy on thermocouple, RTD, and vibration sensor inputs.

The board’s thermal management relies on conduction cooling through the rack frame rather than active fan cooling, consistent with the Mark VI philosophy of minimizing moving parts inside the control enclosure. Thermal pads and copper pour layers on the PCB distribute heat from the regulation components to the board edge, where the rack frame acts as a heat sink. This passive approach is appropriate for the board’s power dissipation profile and eliminates the fan-failure failure mode that affects power supplies in less disciplined industrial designs.

System Integration Benefits

• Zero-adaptation installation: The DS3820PSCC1D1B slots directly into the Mark VI rack backplane with no wiring modifications, connector adapters, or firmware configuration changes required — restoration time is limited only by physical access to the cabinet.
• Deterministic power sequencing: The board’s output enable logic follows the Mark VI power-up sequence specification, ensuring that processor boards receive stable supply rails before I/O boards are energized, preventing undefined initialization states in the control software.
• Fault event logging support: The board’s protection circuits generate status signals readable by the VCMI processor, allowing the Mark VI system to log a timestamped power fault event in the historian before initiating a trip — providing maintenance teams with actionable diagnostic data rather than a bare trip record.
• Isolation between control and field power domains: The DS3820PSCC1D1B maintains galvanic separation between the control logic supply and the field device power rails, preventing ground loops and common-mode interference from field wiring from corrupting control logic supply integrity.
• Broad revision compatibility: The board is compatible across multiple Mark VI cabinet revisions, reducing the number of distinct spare part numbers that MRO teams must stock to cover their installed turbine fleet.
• Supports redundant power configurations: In Mark VI installations configured with redundant power supply slots, the DS3820PSCC1D1B participates in the hot-standby arbitration logic, allowing a failed unit to be replaced without de-energizing the control rack.
• Consistent output impedance: The regulated output rails maintain low output impedance across the full load range, ensuring that transient current demands from processor boards during scan cycle peaks do not produce voltage droop that could trigger undervoltage resets on sensitive logic ICs.
• Reduced diagnostic ambiguity: Because the board’s protection status is visible to the VCMI, maintenance engineers can distinguish between a power supply fault, a downstream load fault, and a backplane connectivity issue without removing boards — reducing mean time to diagnose (MTTD) during unplanned outages.

Quality Assurance & Global Logistics

Every DS3820PSCC1D1B unit offered through siemensplc.com undergoes a structured inspection and verification process before dispatch. Visual inspection covers component condition, solder joint integrity, connector pin straightness, and PCB surface for evidence of thermal stress, corrosion, or prior repair work. Refurbished units proceed to functional bench testing, where output voltage regulation, protection circuit response, and backplane interface signals are verified against the Mark VI specification.

Units are packaged in anti-static ESD bags, cushioned with conductive foam, and shipped in double-wall corrugated cartons rated for international air freight handling. Serial numbers and test records are documented for each unit and available upon request for plant maintenance records, insurance audits, or OEM warranty claim support.

Logistics operations are based in Xiamen, China — a major international freight hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Standard dispatch for in-stock units is within 3–5 business days. Emergency same-day dispatch is available for confirmed in-stock items when orders are placed before the daily freight cutoff. Xiamen’s port and air cargo infrastructure supports reliable transit times to Southeast Asia, the Middle East, Europe, and the Americas, with full shipment tracking provided from dispatch to delivery.

All units carry a 12-month warranty from the date of shipment, covering functional failure under normal operating conditions consistent with the Mark VI installation environment.
