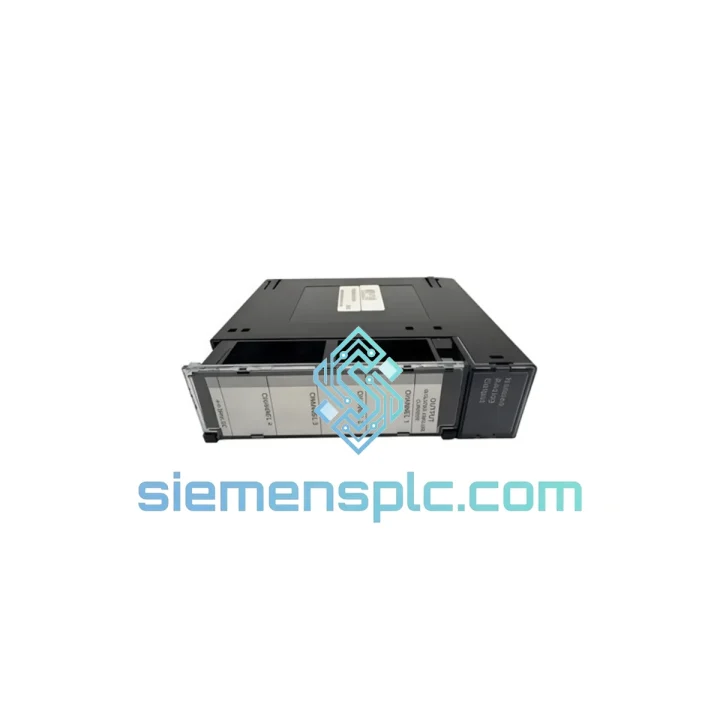

GE HE693THM449 Analog Input Module – Series 90-30

GE HE693THM449: Multi-Channel Thermocouple Input Module for Series 90-30 Control Architectures

In closed-loop process control, the fidelity of temperature data at the field boundary determines the stability of every downstream control action. The GE HE693THM449 is a dedicated thermocouple and millivolt analog input module engineered for the Series 90-30 PLC platform — a mid-range programmable controller family with a proven 30-year deployment record across power generation, petrochemical, food processing, and pharmaceutical manufacturing. This module occupies a single I/O slot on the Series 90-30 backplane and delivers calibrated, cold-junction-compensated temperature data directly to the CPU scan cycle, eliminating the signal conditioning hardware that would otherwise be required between field instruments and the controller rack.

The HE693THM449 is not a general-purpose analog input card. Its signal conditioning chain is purpose-built for the low-amplitude, high-impedance outputs characteristic of thermocouple junctions — signals that range from approximately −6 mV to +69 mV depending on thermocouple type and process temperature. The module’s internal amplifier stages are optimized for this range, providing the gain linearity and noise rejection that a standard ±10 V or 4–20 mA analog input card cannot deliver without external instrumentation amplifiers. This architectural decision reduces component count in the field junction box, shortens commissioning time, and eliminates a potential failure point in the signal chain.

Within the Series 90-30 I/O bus architecture, the HE693THM449 communicates with the CPU module via the backplane’s parallel I/O bus. The CPU reads the module’s channel data during each I/O scan, with the module performing its own analog-to-digital conversion and linearization independently of the CPU scan cycle. This asynchronous conversion architecture means the CPU is not stalled waiting for ADC completion — the module updates its output registers at its own conversion rate, and the CPU reads the most recently completed value on each scan. For temperature control loops where process dynamics are measured in seconds or minutes, this architecture provides adequate data freshness without imposing scan-time penalties on the CPU.

Real-time stock inquiry and RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The HE693THM449’s signal path begins at the terminal block, where thermocouple leads connect directly to the module’s input terminals. The first stage is a differential instrumentation amplifier with high common-mode rejection ratio (CMRR), typically exceeding 100 dB at 50/60 Hz. This is the primary defense against ground loop interference — a persistent problem in industrial environments where thermocouple extension cables run through cable trays shared with motor drive output conductors and solenoid wiring. The differential topology rejects common-mode noise induced on both conductors equally, passing only the true differential thermocouple EMF to the ADC stage.

Cold junction compensation is implemented using an on-board precision thermistor or RTD element mounted at the terminal block, measuring the actual temperature at the point where the thermocouple extension wire terminates. The module’s firmware applies the inverse Seebeck coefficient for the configured thermocouple type to this reference temperature, adding the computed correction to the measured junction voltage before linearization. This approach eliminates the need for isothermal terminal blocks or external reference junction enclosures — a meaningful reduction in installation hardware for multi-channel applications.

The ADC stage uses a sigma-delta conversion architecture, which provides inherent 50/60 Hz noise rejection through its oversampling and decimation filter. This is particularly relevant for Series 90-30 installations in facilities with variable-frequency drives, where switching noise at multiples of the drive carrier frequency can alias into the measurement band of successive-approximation ADCs. The sigma-delta filter’s sinc response attenuates these frequencies before they reach the digital output register.

Open-thermocouple detection is implemented by injecting a small bias current into the input circuit. When the thermocouple circuit is intact, this current is negligible relative to the thermocouple EMF. When the circuit is open, the bias current drives the input to a rail voltage, which the module interprets as an out-of-range condition and sets the corresponding channel fault bit in its status register. The CPU ladder logic can monitor this bit and execute a fault response — switching to a backup sensor, initiating a controlled shutdown, or triggering an alarm — without requiring external signal monitors or relay logic.

EMC design on the HE693THM449 follows GE’s Series 90-30 platform standard, which includes PCB-level filtering on all I/O lines, transient voltage suppression (TVS) diodes at the terminal interface, and a shielded module housing that connects to the backplane chassis ground. The module meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/Burst), and IEC 61000-4-5 (Surge) immunity levels appropriate for industrial installation Category II environments.

System Integration Benefits

• Direct backplane power — no external 24 VDC supply wiring: The module draws its operating power from the Series 90-30 backplane bus, eliminating the need for a dedicated field power supply circuit for the module itself. This simplifies panel design and reduces the number of power distribution terminals in the enclosure.
• Per-channel open-circuit fault flags in CPU memory: Each channel’s fault status is mapped to a discrete bit in the CPU’s %I (input) or %AI (analog input) reference table, depending on configuration. PLC ladder or function block logic can read these bits directly without additional hardware, enabling automated fault response within the same scan cycle that detects the fault.
• Thermocouple type configurable via software — no hardware jumpers: Channel configuration, including thermocouple type selection and engineering unit scaling, is performed through the Series 90-30 hardware configuration tool (Proficy Machine Edition or earlier Logicmaster 90-30). No physical jumper changes are required on the module, reducing the risk of misconfiguration during maintenance.
• Asynchronous ADC conversion preserves CPU scan determinism: Because the module performs its own conversion cycle independently of the CPU scan, the CPU scan time is not extended by ADC conversion latency. This is important in multi-module racks where several analog input modules are installed — scan time remains predictable regardless of the number of analog channels being sampled.
• Cold junction compensation eliminates isothermal terminal block requirement: Installations using the HE693THM449 do not require isothermal terminal blocks or separate reference junction enclosures. This reduces BOM cost and simplifies the wiring design for multi-zone temperature monitoring applications.
• Compatible with all Series 90-30 CPU variants: The module operates with the full range of IC693 CPU modules, from the IC693CPU311 entry-level processor to the IC693CPU374 high-performance variant. No firmware or hardware modifications are required when migrating between CPU types within the platform.
• Supports direct millivolt input for non-standard sensors: In addition to standard thermocouple types, the module accepts direct millivolt inputs, allowing connection of non-standard temperature sensors, pyrometer outputs, or other low-level DC voltage sources within the module’s input range.
• Diagnostic transparency through standard %I/%AI reference mapping: All module status information — channel data, fault flags, and module health — is accessible through the standard Series 90-30 reference table structure. No special function blocks or custom communication routines are required to read diagnostic data, simplifying program development and maintenance.

Quality Assurance & Global Logistics

Every HE693THM449 unit supplied by siemensplc.com is sourced as genuine GE / GE Fanuc Automation hardware. Units are inspected upon receipt against GE’s published part number, revision, and date code documentation. Physical inspection covers PCB condition, connector integrity, label authenticity, and housing condition. Where test equipment is available, functional verification is performed on a Series 90-30 rack prior to shipment.

Packaging follows ESD-safe handling protocols: modules are placed in anti-static bags, cushioned with foam inserts, and packed in double-wall corrugated export cartons. Each shipment includes a commercial invoice, packing list, and certificate of origin. Additional export documentation — including Form E (ASEAN), EUR.1 (EU), or CO legalization — can be arranged upon request.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port. Standard export shipments via DHL Express or FedEx International Priority reach most destinations in Southeast Asia within 3–5 business days, Middle East and Europe within 5–7 business days, and North America within 5–8 business days. Economy freight options via air cargo or sea freight are available for non-urgent orders or bulk quantities. All shipments include tracking numbers issued within 24 hours of dispatch. A 12-month warranty against manufacturing defects is provided on all units.
