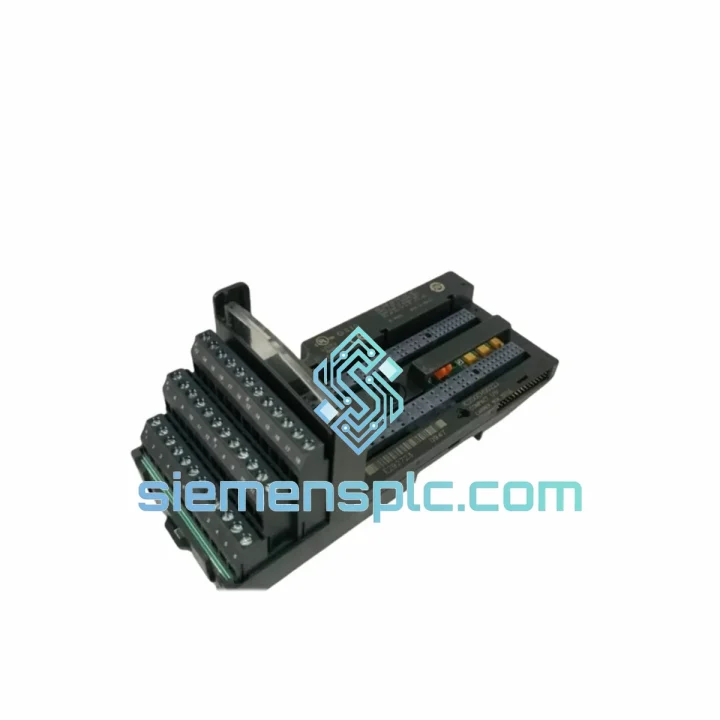

GE IC200CHS022K I/O Expansion Carrier

IC200CHS022K Carrier Down? Your Production Clock Is Already Running — Here’s How We Stop the Bleeding

You didn’t land on this page by accident. The VersaMax remote drop is dark, the NIU fault LED is lit, and your shift supervisor is standing behind you. The GE IC200CHS022K — the 10-slot I/O expansion carrier that physically interconnects every module in that node — has failed, and without it, every discrete input, every analog signal, every valve command in that drop is gone. The CPU sees nothing. The line sees nothing. You’re losing money by the minute.

We carry IC200CHS022K units in Xiamen, China. Not on order. Not inbound next week. In stock, inspected, and ready to clear export customs today. If your order is confirmed before 14:00 CST, it moves the same day via DHL Express or FedEx International Priority. That’s the difference between a 4-hour downtime and a 4-day one.

This isn’t a listing. It’s a recovery plan.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on VersaMax systems taught me one thing: most engineers waste the first 45 minutes chasing the wrong component. Here’s how to confirm the IC200CHS022K is actually the problem — and how to swap it without creating new ones.

Fault Pattern 1 — Full drop offline, NIU LED solid red or cycling red/green:
First, eliminate the NIU before you pull the carrier. Swap the NIU to a known-good spare. If the drop recovers, the carrier is fine — you have an NIU failure. If the drop stays dead with a fresh NIU, the IC200CHS022K backplane bus is compromised. The most common physical cause is cracked PCB traces from vibration fatigue at the DIN rail mounting points, or connector pin oxidation in humid environments. Neither is visible without magnification.

Fault Pattern 2 — Intermittent faults on specific slot addresses only:
This is a partial backplane failure — the internal bus traces degrade unevenly under thermal cycling. In PACSystems Machine Edition, you’ll see %I/%Q reference errors or Module Not Responding faults tied to specific slot numbers. Reseating the affected modules will not fix this. The carrier needs to come out. Continuing to run on a degraded carrier risks corrupting I/O data silently — a far worse outcome than a clean shutdown.

Fault Pattern 3 — Replacement carrier installed, drop still won’t initialize:
Work through this checklist before calling support: (1) NIU firmware version — older NIU firmware (pre-3.x) can reject newer IC200CHS022K hardware revisions. Update NIU firmware via Machine Edition before re-commissioning. (2) I/O configuration mismatch — the CPU project’s I/O configuration must match the physical module population in the new carrier exactly. Any slot discrepancy holds the drop in fault. (3) Bus terminator — confirm the end cap (IC200CHS002) is seated on the last slot. An open bus end generates communication errors that mimic a carrier fault and will send you in circles.

Field-Tested Swap Procedure — Target: 20 minutes:

1. Photograph the full slot layout before touching anything. Module positions are not keyed and a wrong reinstall creates a new fault.
2. Power down field-side 24 VDC first, then NIU logic power. The IC200CHS022K is not hot-swappable — do not attempt it.
3. Label each module with its slot number using tape or a marker. Do this even if you’re confident you’ll remember.
4. Remove modules from slot 10 toward slot 1 to minimize stress on the bus connectors.
5. Unclip the NIU from the carrier and set it aside on an anti-static surface.
6. Release the DIN rail clips and remove the failed carrier.
7. Mount the replacement IC200CHS022K. Press the DIN rail clips fully until you hear the engagement click — a loose carrier causes intermittent bus faults that are nearly impossible to diagnose remotely.
8. Reattach the NIU. Reinstall modules in correct slot order per your photo.
9. Power NIU logic first, then field-side power. All module LEDs should go green within 10 seconds of NIU initialization.
10. Force a full I/O scan from Machine Edition. Verify every reference address is responding before releasing the line to production.

Reliability in Harsh Conditions

The IC200CHS022K was built for environments that expose every design weakness within months. The carrier PCB carries standard conformal coating, which provides meaningful protection against condensation, cleaning agent mist, and airborne particulate — failure modes that are endemic in food processing, pharmaceutical, and chemical plant environments where washdown cycles are routine.

The DIN rail mounting clips are reinforced steel. This matters in compressor rooms, press lines, and any application where panel vibration is continuous. Plastic clips work loose over months of resonance exposure; steel clips don’t. The bus connector contacts use gold plating that resists oxidation in coastal and high-humidity environments — a failure mode that compromises cheaper alternatives within 18 months of installation in tropical climates.

Thermal performance is rated to 60 °C continuous ambient without derating. In practice, we’ve supplied these carriers to plants in Southeast Asia where panel ambient temperatures regularly reach 55 °C during summer production peaks. The carrier runs without complaint. Every unit we ship is inspected under magnification for connector pin deformation, PCB delamination, housing cracks, and any evidence of prior rework. Units with non-factory solder joints or signs of repair are rejected outright. We do not refurbish and resell.

Global Express Logistics

Our stock is held in Xiamen, Fujian Province — one of China’s primary industrial export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. Here is exactly how an emergency shipment moves from our shelf to your plant floor:

Day 0 — Order confirmed before 14:00 CST: Unit pulled from stock, inspected, packed in anti-static bag with foam insert inside a double-wall export carton. Commercial invoice and packing list prepared with correct HS code (8537.10) for smooth customs clearance at destination. Shipment handed to carrier same afternoon.

Day 0–1: Tracking number sent to your email within 2 hours of carrier pickup scan. You can monitor the shipment in real time from that point.

Estimated transit times: Southeast Asia 2–3 business days. Middle East and Europe 3–5 business days. North America 4–6 business days. Australia and New Zealand 3–4 business days.

We process export documentation for industrial automation components daily. If your procurement team requires a proforma invoice, certificate of origin, or a specific customs declaration format for your country’s import requirements, send the specifications to [email protected] at the time of order. Documents will be ready before the shipment leaves our facility. For orders requiring bonded warehouse delivery, free trade zone routing, or air freight consolidation, contact us via WhatsApp to build a logistics plan around your import constraints.
