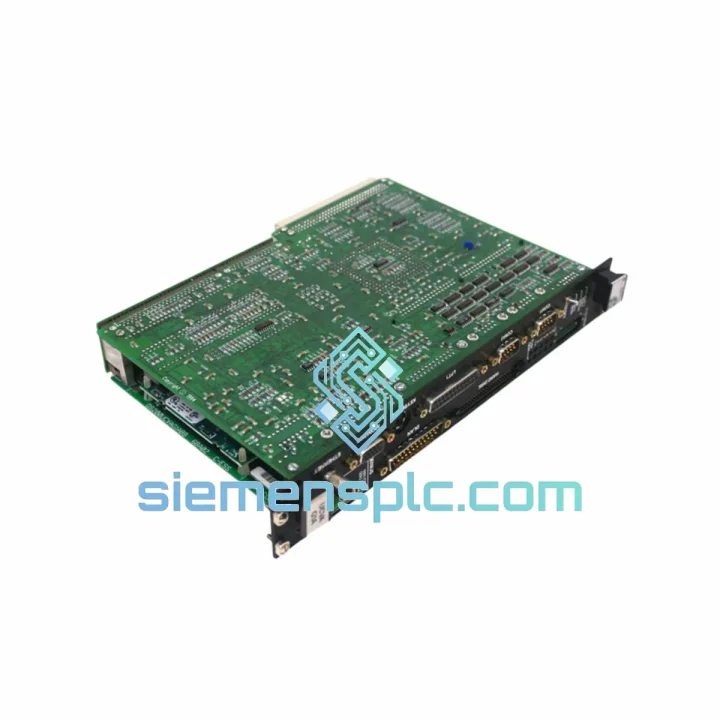

GE IC660ELB912G PLC Bus Interface Module – Series 90-60

GE IC660ELB912G — Genius Bus Interface Card: Backplane-to-Field Communication Architecture in Series 90-60 Control Systems

The GE IC660ELB912G is a Genius Bus Interface Card (GBIC) engineered for the Series 90-60 Programmable Logic Controller platform. Its primary function is to serve as the deterministic communication gateway between the VME-based Series 90-60 backplane and the Genius I/O field bus network — a token-passing serial architecture operating at a fixed baud rate of 153.6 Kbaud. In distributed control topologies where field device density, scan cycle predictability, and fault transparency are non-negotiable, the IC660ELB912G occupies a structurally critical position in the control loop.

Unlike passive I/O terminal blocks, the IC660ELB912G actively manages bus arbitration, device health polling, and data serialization for up to 32 Genius-compatible field devices per bus segment. This offloads a significant portion of communication overhead from the host CPU module, preserving CPU scan time for ladder logic execution and PID loop processing. The result is a measurable reduction in worst-case response latency across the entire I/O subsystem.

This module is widely deployed in continuous process industries — oil and gas, chemical processing, water treatment — as well as discrete manufacturing environments including automotive assembly lines, metal fabrication cells, and high-throughput packaging systems. Its compatibility with the full Series 90-60 rack ecosystem, including existing power supplies and CPU modules such as the IC693CPU374, means it can be inserted into operational systems without backplane modification or firmware reconfiguration of adjacent modules.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC660ELB912G implements a dual-interface architecture that separates backplane logic from field bus logic at the hardware level. On the backplane side, the module interfaces with the Series 90-60 VME bus through a dedicated bus controller ASIC that handles address decoding, interrupt generation, and DMA-style data transfer to the CPU’s I/O image table. This design eliminates polling latency from the CPU’s perspective — the GBIC pushes updated I/O data to the backplane at the conclusion of each Genius bus scan cycle, independent of the CPU scan.

On the field side, the Genius bus transceiver circuit is built around a differential signal driver compliant with RS-485 electrical standards, providing inherent common-mode noise rejection of up to ±7V. This is particularly relevant in industrial environments where variable-frequency drives, contactors, and high-current switching loads generate broadband electromagnetic interference. The differential pair topology, combined with the module’s internal signal conditioning, maintains data integrity on bus runs up to 7,500 feet (2,286 m) using Belden 9463 or equivalent shielded twisted-pair cable.

The token-passing arbitration logic embedded in the IC660ELB912G ensures that each Genius device on the bus receives exactly one transmission opportunity per bus scan cycle. This deterministic access model eliminates collision-based retransmission delays that are inherent in CSMA/CD architectures, producing a bounded worst-case I/O update time that can be calculated precisely from node count and bus speed — a property essential for closed-loop control applications with defined response time requirements.

The module also implements continuous device health monitoring. Each Genius node on the bus is polled for a heartbeat response during every scan cycle. If a node fails to respond within the defined timeout window, the IC660ELB912G sets a fault bit in the corresponding I/O status register and reports the fault condition to the host CPU via the backplane interrupt mechanism. This allows the CPU ladder logic to execute fault-handling routines — such as safe-state output forcing or alarm annunciation — without requiring a full system scan to detect the anomaly.

System Integration Benefits

• Deterministic I/O Scan Timing: The token-passing protocol produces a mathematically bounded bus scan cycle. With 32 nodes at 153.6 Kbaud, worst-case bus scan time is calculable and consistent — enabling precise tuning of PID loop sample rates and motion control timing.
• CPU Offload Architecture: Bus arbitration, device polling, and data serialization are handled entirely within the IC660ELB912G’s onboard logic. The host CPU receives pre-assembled I/O image data via backplane DMA, preserving CPU scan time for application logic execution.
• Fault Transparency at Node Level: Individual device faults are isolated and reported with node-level granularity. Maintenance personnel can identify the exact failing field device from the CPU diagnostic registers without physical inspection of the bus wiring.
• High Node Density per Segment: Supporting 32 Genius devices per bus segment significantly reduces the number of interface cards required in large installations, lowering rack slot consumption and associated hardware costs.
• Zero-Modification Backplane Integration: The IC660ELB912G is fully backward-compatible with all Series 90-60 rack configurations. No jumper changes, firmware updates to adjacent modules, or backplane hardware modifications are required for installation.
• Extended Bus Reach: The RS-485-based Genius bus supports cable runs up to 2,286 m, enabling centralized PLC control of geographically distributed field devices without signal repeaters in standard installations.
• Dual-Bus Redundancy Support: Two IC660ELB912G modules installed in separate rack slots can be configured for dual Genius bus operation, providing communication path redundancy for high-availability process control applications.
• Legacy System Longevity: For plants operating Series 90-60 infrastructure, the IC660ELB912G extends the operational life of existing control architectures without requiring migration to newer backplane standards, protecting capital investment in installed field wiring and I/O blocks.

Quality Assurance & Global Logistics

Every IC660ELB912G unit supplied by siemensplc.com is sourced through verified industrial supply channels with full traceability documentation. Prior to shipment, each module undergoes a structured inspection protocol: visual examination of PCB and connector integrity, label and revision-mark verification against GE manufacturing records, and functional pre-shipment testing where applicable. Certificates of conformance and lot traceability records are available upon request for quality-critical procurement processes.

Our operations are based in Xiamen, China — a major logistics hub with direct access to international express freight networks. Standard shipment is via DHL Express, FedEx International Priority, or UPS Worldwide, with typical transit times of 3–7 business days to North America and Europe, and 2–5 business days to Southeast Asia. All shipments include full tracking, commercial invoice, and packing list documentation compliant with international customs requirements. For time-critical plant shutdowns or emergency maintenance scenarios, same-day dispatch is available for in-stock units confirmed before 14:00 CST.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed directly by our technical team, with replacement or repair options available depending on unit condition and customer location.
