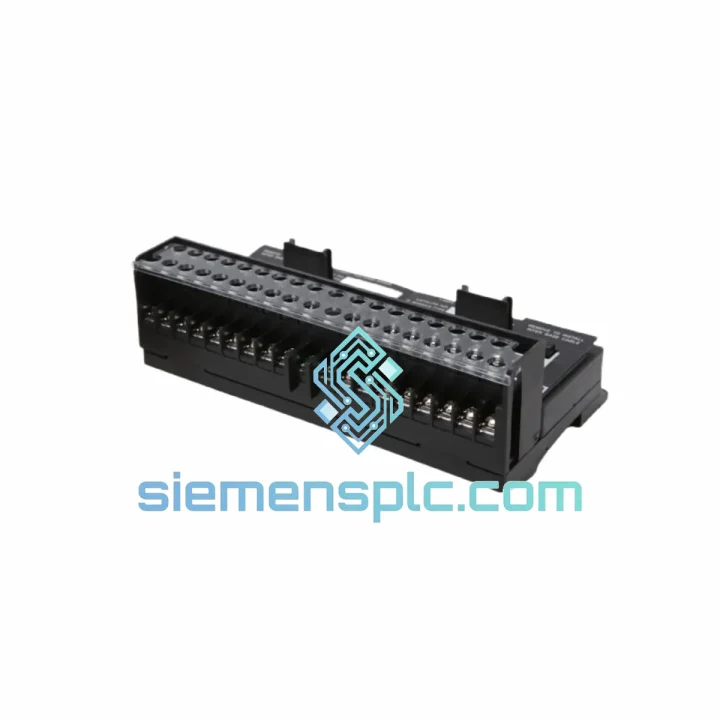

GE IC670CHS101C I/O Terminal Block – VersaMax Micro

GE IC670CHS101C — Field Wiring Interface Architecture in VersaMax Micro Control Loops

The GE IC670CHS101C is a dedicated I/O terminal block chassis engineered for the GE VersaMax Micro IC670 series programmable logic controller platform. Within a discrete or process control loop, the terminal block occupies the boundary layer between field instrumentation and the PLC’s digital I/O circuitry. Its mechanical and electrical design directly determines signal integrity, wiring serviceability, and mean time to repair (MTTR) when field faults occur.

The IC670 series was developed by GE Fanuc Automation (now part of Emerson’s portfolio) as a compact, modular PLC architecture targeting machine-level and distributed control applications. The IC670CHS101C chassis provides the physical mounting and wiring termination infrastructure for IC670-series I/O modules, establishing the ground reference plane, field terminal rows, and module retention mechanism in a single integrated assembly. The “C” hardware revision reflects a mature, field-stabilized design iteration with documented compatibility across the full IC670 module ecosystem.

In a typical VersaMax Micro control loop — for example, a conveyor drive interlock system — the IC670CHS101C receives 24 VDC discrete signals from proximity sensors, limit switches, and safety relays via its screw-terminal field wiring rows. These signals pass through the module’s internal bus connector into the IC670 digital input module, where optocoupler isolation stages convert field-level voltages into logic-level signals for the CPU’s ladder logic scan. The terminal block’s mechanical design ensures that field wiring remains undisturbed during module hot-swap or replacement procedures, a critical requirement in continuous-process environments where control loop downtime carries direct production cost.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC670CHS101C chassis integrates three distinct functional layers that together define its hardware design advantage in industrial field environments.

Backplane Bus Isolation Architecture: The chassis separates field-side wiring terminals from the module-side backplane bus through a defined creepage and clearance geometry compliant with IEC 60664-1 for 300 V rated insulation. This physical separation prevents field transients — common in inductive load switching environments — from coupling directly onto the IC670 module’s internal logic bus. The screw-terminal rows are arranged in a single-row, top-entry configuration that minimizes conductor bending radius and reduces mechanical stress on wire insulation over the product’s service life.

EMC Design and Ground Reference: The DIN-rail mounting clip provides a low-impedance chassis ground path from the terminal block’s metal frame to the panel earth rail. This ground continuity is essential for the common-mode noise rejection performance of the IC670 digital input modules, which rely on a stable reference potential to correctly threshold 24 VDC field signals against the module’s internal comparator circuits. In environments with variable-frequency drives (VFDs) or high-current contactors generating conducted EMI in the 150 kHz – 30 MHz range, a well-grounded terminal block chassis measurably reduces false input triggering events.

Module Retention and Wiring Continuity: The IC670CHS101C incorporates a module locking mechanism that maintains positive electrical contact between the I/O module’s edge connector and the chassis backplane bus under vibration conditions up to the IEC 60068-2-6 specification. Critically, the field wiring terminals are mechanically independent of the module retention system — field conductors remain clamped and electrically connected when the I/O module is extracted for replacement. This design eliminates the need to de-energize or disconnect field wiring during module servicing, reducing MTTR from a potential 30–60 minute rewiring procedure to a sub-5-minute module swap.

Thermal Management: The chassis body uses a glass-fiber reinforced thermoplastic rated for continuous operation at +60 °C ambient. In high-density panel installations where adjacent heat-generating components (power supplies, drives) elevate local ambient temperatures, this material selection provides a thermal margin that prevents terminal block deformation or contact resistance drift over a 10+ year service life.

System Integration Benefits

• Deterministic I/O Scan Alignment: The IC670CHS101C’s low-resistance backplane bus connection ensures that signal propagation delay from field terminal to IC670 CPU input register remains within the module’s specified response time, supporting deterministic scan cycle execution in time-critical interlock logic.
• Zero-Rewire Module Replacement: Field wiring stays terminated during module extraction, eliminating rewiring errors and reducing maintenance-induced faults — a direct contributor to improved system availability metrics (MTBF improvement).
• Standardized Wiring Density: The single-row terminal layout accommodates standard 1.5 mm² control cable, enabling consistent wiring practices across multi-panel installations and simplifying as-built documentation.
• Grounding Continuity for Diagnostic Accuracy: A stable chassis ground reference improves the signal-to-noise ratio on discrete input channels, reducing spurious fault diagnostics that can mask genuine field device failures in the IC670 CPU’s diagnostic buffer.
• Revision C Compatibility Assurance: The C revision is the terminal hardware iteration for the IC670CHS101 product line, with documented interoperability across all IC670-series I/O modules — eliminating firmware or hardware compatibility risk during system expansion.
• DIN-Rail Flexibility: Standard 35 mm DIN mounting allows integration into existing panel layouts without custom brackets or adapter plates, reducing panel engineering time during system upgrades.
• Reduced Panel Footprint: The compact chassis geometry supports high-density I/O configurations in space-constrained machine enclosures, enabling more I/O points per unit of panel depth.
• Long-Term Spare Parts Availability: As a mature IC670-series component, the IC670CHS101C remains available through industrial surplus and authorized distribution channels, supporting legacy system maintenance strategies without forced platform migration.

Quality Assurance & Global Logistics

Every GE IC670CHS101C unit supplied by siemensplc.com undergoes a structured incoming inspection protocol before dispatch. Physical examination covers label authenticity, connector pin integrity, terminal block screw torque verification, and housing condition. Units sourced from authorized industrial surplus channels are cross-referenced against GE’s published part number and revision documentation to confirm genuine manufacture.

Functional verification — where test fixtures are available — includes backplane bus continuity measurement and terminal-to-terminal insulation resistance testing at 500 VDC to confirm dielectric integrity prior to shipment. Units that do not meet acceptance criteria are quarantined and excluded from customer orders.

All shipments originate from our warehouse in Xiamen, Fujian Province, China — a major international logistics hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and TNT Economy services. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international order to facilitate customs clearance in destination countries. For orders requiring specific HS code declarations or CITES/dual-use compliance documentation, our export team provides the necessary paperwork within the order processing window.

Transit times from Xiamen to major industrial markets: Europe 3–5 business days (DHL Express), North America 3–5 business days (FedEx IP), Southeast Asia 2–3 business days, Middle East 4–6 business days. All shipments include real-time tracking and are covered by carrier insurance. A 12-month warranty applies from the shipment date, covering manufacturing defects and verified functional failures under normal operating conditions.
