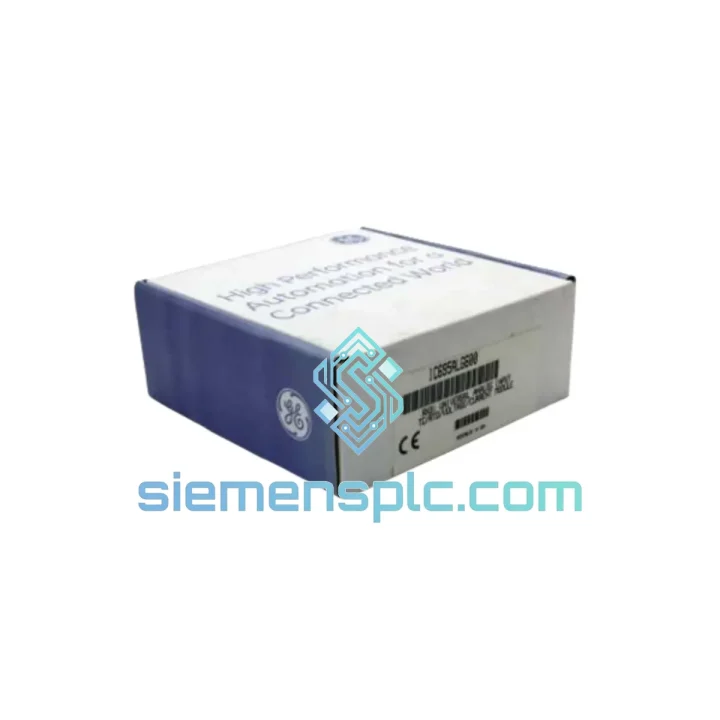

GE IC695ALG600 Analog Input Module

GE IC695ALG600 — Procurement Strategy for High-Density Analog Acquisition in PACSystems RX3i Architectures

From a supply chain standpoint, the IC695ALG600 occupies a critical position in any GE PACSystems RX3i deployment. As a 16-channel universal analog input module, it consolidates voltage and current signal acquisition into a single rack slot — a design decision that carries direct implications for procurement volume, spare-parts strategy, and long-term maintenance budgeting. For procurement managers and plant engineers evaluating sourcing options, understanding the full lifecycle cost of this component is as important as its datasheet specifications.

The IC695ALG600 is a high-velocity part across process industries. Oil and gas operators, power utilities, water treatment authorities, and automotive assembly lines have standardized on this module for decades. Its widespread adoption means that secondary-market availability is generally strong, and siemensplc.com maintains verified stock to support both planned procurement cycles and emergency replacement scenarios. Whether you are building out a new control cabinet or managing an unplanned outage, our sourcing infrastructure is positioned to respond.

Request an Official Quote: [email protected] | WhatsApp: +86 18359268345

Procurement Specifications

• Part Number: IC695ALG600
• Manufacturer: GE / GE Fanuc Automation (now Emerson)
• Platform: PACSystems RX3i Universal Backplane
• Module Classification: Universal Analog Input
• Channel Count: 16 independently configurable channels
• Supported Input Ranges: ±10 V, 0–10 V, ±5 V (voltage); 0–20 mA, 4–20 mA (current)
• A/D Resolution: 16-bit sigma-delta conversion
• Measurement Accuracy: ±0.1% of full scale (typical)
• Input Impedance: >10 MΩ (voltage mode) / 250 Ω (current mode)
• Isolation: Channel-to-backplane optical isolation
• Compatible Backplanes: IC695CHS012, IC695CHS016
• Configuration Tool: Proficy Machine Edition (PME) via Ethernet or USB
• Operating Temperature: 0 °C to 60 °C
• Storage Temperature: −40 °C to 85 °C
• Humidity: 5–95% RH, non-condensing
• Certifications: CE, UL, cUL, RoHS
• Form Factor: Single-slot RX3i module
• Approximate Weight: 0.3 kg
• Lead Time: In-stock units ship within 24 hours from Xiamen. For high-volume orders or specific hardware revisions, lead time is typically 3–7 business days. Custom procurement for end-of-life revision levels available upon request — contact us for a sourcing assessment.

Total Cost of Ownership (TCO) Analysis

Procurement decisions for industrial automation components are rarely made on unit price alone. The IC695ALG600 is a case where the true cost of ownership extends well beyond the invoice value, and where sourcing from a specialist distributor like siemensplc.com delivers measurable financial advantages across both capital expenditure (CAPEX) and operational expenditure (OPEX) categories.

Downtime Risk Reduction: Unplanned downtime in process manufacturing environments carries a cost that dwarfs the price of any single module. Industry benchmarks consistently place unplanned downtime costs in the range of $50,000 to $500,000 per hour depending on the process. The IC695ALG600 is a single point of failure for up to 16 analog measurement loops — a failed module can take an entire process section offline. Maintaining a verified spare on the shelf, sourced from a supplier with confirmed stock and rapid dispatch capability, is the most direct way to compress mean time to repair (MTTR). siemensplc.com ships in-stock units within 24 hours from Xiamen, with DHL and FedEx Express options covering most global destinations within 3–5 business days.

12-Month Operational Warranty: Every IC695ALG600 unit supplied by siemensplc.com carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. For procurement teams managing maintenance budgets, this warranty converts an uncertain repair cost into a defined, zero-cost resolution path. It also eliminates the need to budget for early-life failure replacement — a common hidden cost when sourcing from unverified channels.

CAPEX Efficiency: The IC695ALG600’s universal channel architecture means a single module SKU covers voltage and current input requirements across all 16 channels. Procurement teams do not need to maintain separate inventory positions for dedicated voltage-only or current-only modules. This consolidation reduces the number of line items in your spare-parts inventory, lowers carrying costs, and simplifies the reorder process. For facilities managing multiple RX3i installations, the savings in inventory administration alone justify the sourcing decision.

OPEX Reduction Through Diagnostic Depth: Per-channel diagnostics — open-wire detection, over-range and under-range alarms reported individually to the CPU fault table — reduce the labor cost of fault isolation during commissioning and routine maintenance. Technicians can identify a failed field instrument or wiring fault at the channel level without pulling the module or interrupting adjacent measurement loops. This capability directly reduces maintenance labor hours per incident, compressing OPEX over the asset’s operational life.

Avoiding Counterfeit Risk: The secondary market for GE PACSystems modules includes a non-trivial volume of counterfeit and non-functional units. A counterfeit IC695ALG600 installed in a live process control system represents not only a financial loss but a potential safety and regulatory liability. siemensplc.com applies a documented inspection protocol — visual verification, label and date-code authentication, and functional power-on testing — before any unit is dispatched. This due diligence is a risk mitigation measure that does not appear on a unit-price comparison but has real financial value when measured against the cost of a counterfeit-induced process failure.

Quality & Compliance Assurance

siemensplc.com operates on a 100% genuine product commitment. Every IC695ALG600 unit in our inventory is sourced through verified supply channels and subjected to a multi-stage inspection process before dispatch. We do not list, sell, or ship units that have not passed our internal authentication and functional verification protocol.

• Authentication: Label verification including part number, hardware revision, date code, and serial number cross-referenced against manufacturer records
• Functional Testing: Power-on test confirming module initialization and backplane communication prior to shipment
• ESD Packaging: Anti-static bag and foam-lined carton; original OEM packaging preserved where available
• Customs Compliance: All export shipments are processed through Xiamen Customs with full commercial invoice, packing list, and HS code declaration in compliance with Chinese export regulations and destination country import requirements. We support multi-currency payment including USD, EUR, HKD, and CNY, with wire transfer, PayPal, and trade finance options available for qualified B2B accounts.
• Documentation: Serial number and firmware revision recorded on packing slip; certificate of conformance available upon request for regulated industries

Strategic Sourcing from Xiamen

Xiamen is one of China’s five original Special Economic Zones and home to one of the country’s most active international cargo ports. For industrial component procurement, this geography translates into concrete logistical advantages that directly affect delivery reliability and total landed cost.

Xiamen Gaoqi International Airport operates direct cargo routes to major logistics hubs in Europe, North America, Southeast Asia, and the Middle East. Xiamen Port handles significant container throughput annually, with established freight lanes to over 60 countries. For time-sensitive procurement — replacement modules needed to restore a downed production line — air freight from Xiamen via DHL or FedEx Express reaches most major industrial centers within 3–5 business days. For planned procurement on a budget, sea freight consolidation from Xiamen offers competitive rates to destinations across Asia-Pacific, Europe, and the Americas.

Our warehouse and dispatch operations are co-located with our sourcing and quality control team in Xiamen, eliminating the handoff delays common in multi-warehouse distribution models. Orders confirmed before 14:00 CST on business days are dispatched same day for in-stock units. This operational model is designed specifically for the procurement timelines of industrial buyers who cannot afford the uncertainty of extended lead times from distant distribution centers.
