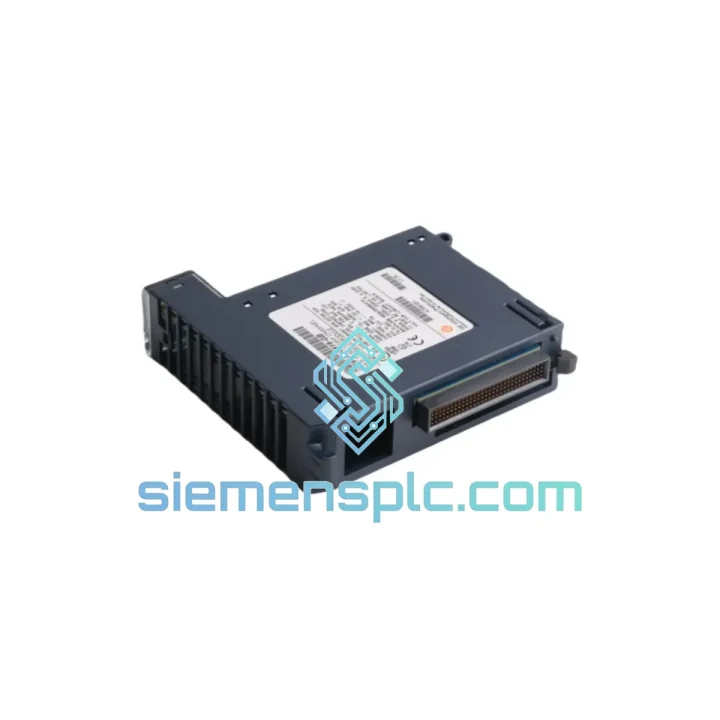

GE IC695ALG616 Analog Input Module – PACSystems RX3i

GE IC695ALG616: High-Density Universal Analog Input Module for PACSystems RX3i Process Control

In closed-loop process control, the analog input subsystem defines the fidelity boundary between the physical process and the controller’s execution engine. The GE IC695ALG616 is a 16-channel universal analog input module designed for the PACSystems RX3i backplane architecture. It accepts both voltage and current signals on a per-channel configurable basis, consolidating what would otherwise require multiple single-type modules into a single backplane slot. This density-to-slot ratio directly reduces cabinet real estate, inter-module wiring, and the associated failure-mode surface area in high-channel-count installations such as refinery distributed control loops, turbine monitoring racks, and water treatment SCADA front-ends.

The IC695ALG616 operates within the IC695 series — GE’s high-performance module family for the RX3i universal backplane. Unlike earlier IC693-series analog modules that relied on dedicated analog buses, the IC695 series communicates over the RX3i high-speed backplane bus, which supports deterministic data transfer at rates that keep pace with fast CPU scan cycles. This architectural shift eliminates the analog bus bottleneck present in legacy GE Series 90-30 systems and allows the IC695ALG616 to deliver its 16-channel dataset to the CPU within a single backplane transaction window, preserving scan-cycle determinism even in high-density I/O configurations.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC695ALG616’s internal signal chain begins at the field terminal block, where each of the 16 channels is routed through a dedicated input multiplexer stage. The multiplexer sequentially presents each channel’s signal to a shared, high-precision sigma-delta analog-to-digital converter (ADC). Sigma-delta architecture is the deliberate engineering choice here: unlike successive-approximation register (SAR) ADCs that are faster but more susceptible to high-frequency noise, sigma-delta converters apply oversampling and digital decimation filtering, which inherently attenuates high-frequency interference — a critical property in industrial cabinets where variable-frequency drives, contactors, and high-current switching loads generate broadband electromagnetic noise across the 10 kHz–1 MHz spectrum.

Each channel’s input stage incorporates optical isolation between the field-side signal and the backplane-side digital logic. This galvanic barrier serves two functions: it prevents ground potential differences between field devices and the controller rack from creating common-mode currents that corrupt ADC readings, and it protects the backplane bus from transient overvoltage events originating at the field terminal. In installations where field wiring runs parallel to power cables over distances exceeding 30 meters — common in large process plants — this isolation architecture is not optional; it is the primary defense against induced noise coupling.

The module’s EMC design follows IEC 61000-4 series test criteria. The PCB layout employs a split ground plane strategy: the analog signal ground and the digital logic ground are separated at the PCB layer level and joined at a single star point near the ADC reference, minimizing digital switching noise injection into the analog measurement path. Decoupling capacitors are placed at each power rail entry point on the analog section, with X7R ceramic capacitors selected for their stable capacitance across the operating temperature range — a detail that matters in outdoor or non-climate-controlled enclosures where temperature swings of 40 °C across a shift are not uncommon.

For 4–20 mA current loop inputs, the module’s internal 250 Ω precision shunt resistor converts the loop current to a voltage signal (1–5 V) before the ADC stage. The shunt tolerance is held to ±0.1%, which contributes directly to the module’s overall measurement accuracy. Open-wire detection on current channels is implemented by monitoring for input signals below the 4 mA live-zero threshold; when a channel drops below approximately 3.6 mA, the module flags an open-wire fault condition in the CPU’s I/O fault table, enabling the application program to execute a defined fault response rather than silently processing a zero-value reading as a valid process signal.

System Integration Benefits

• Single-slot 16-channel density: Consolidates analog input capacity into one backplane slot, freeing adjacent slots for additional I/O or communication modules without expanding the chassis footprint.
• Universal input type per channel: Voltage and current input types are software-selectable per channel via PME, eliminating the need to stock and maintain separate voltage-only and current-only module variants for mixed-sensor installations.
• Deterministic backplane data delivery: The RX3i high-speed backplane bus transfers all 16-channel data to the CPU within a single scan cycle, ensuring that analog process values are never stale relative to the CPU’s logic execution cycle — a prerequisite for tight PID loop performance.
• Channel-level fault transparency: Open-wire, over-range, and under-range conditions are reported at the individual channel level in the CPU’s I/O fault table, allowing maintenance personnel to isolate a faulty field instrument without interrupting the remaining 15 channels.
• Software-driven commissioning: All channel parameters — input type, range, filter time constant, alarm limits — are configured in PME and stored in the CPU’s configuration database. Hardware jumpers or DIP switches are not required, reducing commissioning time and eliminating the risk of misconfiguration from physical switch misreading.
• Compatibility with RX3i redundancy architectures: The IC695ALG616 is compatible with PACSystems RX3i Hot Standby CPU redundancy configurations, where the primary and secondary CPUs maintain synchronized I/O images. Analog input data from the IC695ALG616 is included in the redundancy synchronization sweep, ensuring bumpless switchover without analog data loss.
• Scalable channel expansion: Multiple IC695ALG616 modules can be populated across a single chassis or across remote I/O drops connected via PROFINET or Ethernet Global Data, allowing analog channel counts to scale from 16 to several hundred without architectural redesign.
• Integration with GE Historian and SCADA: Process values from the IC695ALG616 are accessible via standard GE SRTP, Modbus TCP, or OPC DA/UA server interfaces, enabling direct data acquisition by GE Proficy Historian, Wonderware, Ignition, or any OPC-compliant SCADA platform without intermediate signal conditioning hardware.

Quality Assurance & Global Logistics

Every IC695ALG616 unit supplied by siemensplc.com is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Physical authenticity checks include verification of GE factory date codes, module serial number format validation, PCB marking inspection, and connector pin condition assessment. Units exhibiting signs of remarking, sanding, or non-factory refurbishment are rejected at intake.

Functional verification is performed on a dedicated RX3i test rack prior to dispatch. Each module is powered through a standard IC695 backplane, configured via PME, and channel-level signal injection tests are conducted across the declared input ranges to confirm ADC linearity and fault detection response. Modules that pass functional verification are issued a 12-month warranty from the date of shipment.

Logistics operations are based in Xiamen, China — a major southeastern port city with direct access to DHL, FedEx, UPS, and SF Express international networks. Standard export documentation includes commercial invoice, packing list, and certificate of origin. For regulated-destination shipments, export classification documentation is prepared in accordance with applicable trade compliance requirements. Typical transit times to Southeast Asia are 3–5 business days; to Europe and North America, 5–8 business days via express courier. Bulk orders are palletized with anti-static inner packaging and foam-cushioned outer cartons rated for international air freight handling loads.
