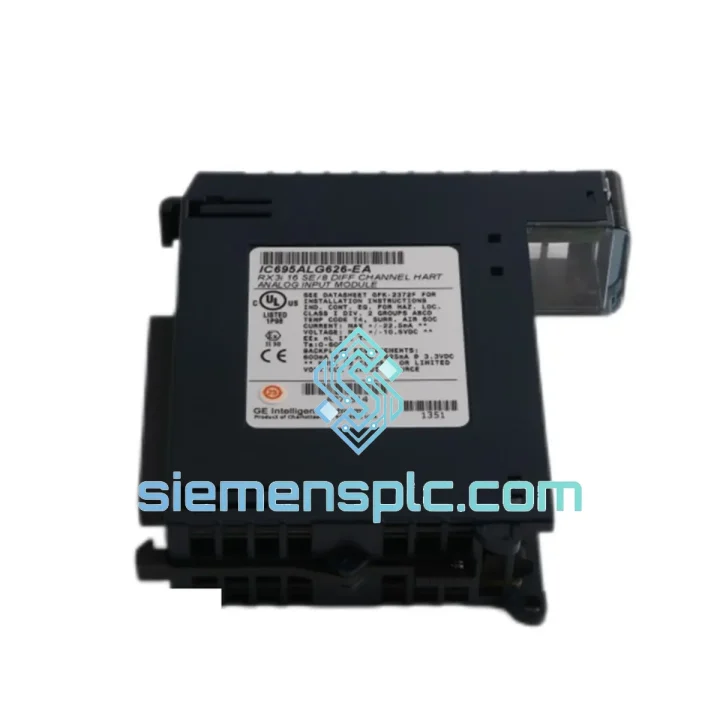

GE IC695ALG626 HART Analog Input Module

GE IC695ALG626 — Stop the Bleeding: Get Your Line Back Online Before the Next Shift

Every minute your PACSystems RX3i rack sits dark, you’re burning money. A failed IC695ALG626 HART analog input module doesn’t just kill one loop — it can cascade into a full process shutdown when your DCS loses visibility on eight critical field instruments simultaneously. We’ve seen it happen at 2 AM on a Sunday. That’s exactly why we stock this module in Xiamen, ready to pull and ship the same day you call.

This is not a grey-market listing. The IC695ALG626 units we dispatch are sourced through verified industrial supply chains, inspected against GE’s published hardware revision specs, and packed in ESD-safe anti-static bags with desiccant before they leave our warehouse. You get a production-grade module — not a refurbished board with a fresh label.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The IC695ALG626 fails in predictable ways. Here’s what to check before you condemn the module — and what to watch when you swap it in.

Common Fault Signatures:

• %I fault bit set on all 8 channels simultaneously — almost always a backplane power rail issue or a blown module fuse, not the module itself. Measure 5 V and 3.3 V on the backplane before pulling the card.
• HART communication loss on specific channels only — check field wiring resistance. HART requires a minimum 230 Ω loop impedance. Below that, the modem can’t modulate. Add a HART resistor in series if your loop impedance is too low.
• Analog readings frozen or pegged at 3.9 mA / 20.5 mA — the module is detecting an open or shorted loop. Verify transmitter power supply and 2-wire vs. 4-wire wiring configuration matches the channel configuration in Machine Edition.
• Module OK LED off, no backplane communication — the module has lost its slot address. This can happen after a firmware update or a hard power cycle with a corrupted configuration. Force a hardware re-scan from the CPU’s I/O configuration tool.
• Intermittent %AI data corruption — check for ground loops. The IC695ALG626 has channel isolation, but if your field cable shields are grounded at both ends, you can still inject common-mode noise that exceeds the module’s rejection spec.

Replacement Procedure — Field Checklist:

1. Place the CPU in STOP mode. Do not power down the rack if hot-swap is enabled in your project configuration.
2. Note the slot number. The IC695ALG626 uses automatic slot addressing — no DIP switches. The CPU will re-assign the slot address on the next I/O scan after insertion.
3. Disconnect field wiring terminal block from the module face. Label each wire before removal if the terminal block is not keyed.
4. Release the module locking tab and slide the card out of the backplane. Ground yourself to the rack chassis before handling the replacement unit.
5. Insert the new IC695ALG626 and seat it firmly until the locking tab clicks. Reconnect the terminal block.
6. Return the CPU to RUN mode. Monitor the I/O fault table for 30 seconds. If the module OK LED is solid green and %I fault bits clear, the swap is complete.
7. Verify HART pass-through: use the HART Device DTM in Machine Edition or a handheld HART communicator to confirm device descriptor handshake on each active channel.
8. Check firmware revision compatibility. If the replacement unit carries a different firmware revision than the failed module, re-download the I/O configuration from Machine Edition to ensure parameter alignment.

Reliability in Harsh Conditions

The IC695ALG626 was designed for environments that would kill consumer-grade electronics. The module’s conformal-coated PCB resists moisture ingress and condensation — critical in coastal chemical plants and offshore platforms where humidity swings from 20% to 95% within a single shift change. The backplane connector uses gold-plated contacts rated for 200+ insertion cycles, which matters when you’re doing quarterly PM swaps in a high-vibration compressor room.

Vibration tolerance is specified to IEC 61131-2 Class II — 10–57 Hz at 0.075 mm displacement, 57–150 Hz at 1 g. In practice, we’ve seen these modules survive years of service on skid-mounted equipment with no isolation mounts. The operating temperature ceiling of 60°C gives you real headroom in non-air-conditioned electrical rooms in Southeast Asia and the Middle East, where ambient temperatures routinely hit 45°C and panel interiors can exceed 55°C under full load.

Channel-to-backplane isolation (tested to 1500 V AC) protects your CPU from field-side transients — lightning strikes on long cable runs, VFD switching noise, and ground potential differences between buildings. This isolation is not a marketing claim; it’s a measurable hardware boundary that has saved more than a few CPUs from catastrophic damage when field instruments failed short-to-ground.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. When you confirm your order before 14:00 CST, the module ships the same business day. Here’s what the timeline looks like from your purchase order to your panel door:

• Hour 0–2: Order confirmed, stock pulled from shelf, ESD packaging and inspection checklist completed.
• Hour 2–4: Commercial invoice, packing list, and HS Code 8537.10 export documentation prepared. Shipment booked with DHL Express or FedEx International Priority based on destination.
• Hour 4–6: Parcel collected by courier. Tracking number issued to your email within 30 minutes of pickup scan.
• Day 1–3: Transit to most of Europe, North America, Southeast Asia, and the Middle East via DHL Express Worldwide or FedEx IP. Japan and South Korea typically arrive Day 1–2.
• Day 3–5: Delivery to remote destinations including South America, Africa, and Pacific Islands via DHL Economy Select or FedEx International Economy where express is not available.

We handle all export compliance documentation. For destinations requiring an end-user certificate or import license (certain Middle East and South Asian countries), contact us before ordering and we will advise on lead time impact. Duties and import VAT are the buyer’s responsibility; we provide accurate declared values and HS codes to minimize customs delays.

Contact Information

Ready to order or need a stock confirmation before raising your PO?

• 📧 Email: [email protected]
• 💬 WhatsApp: +86 18359268345
• 🌐 Web: siemensplc.com
