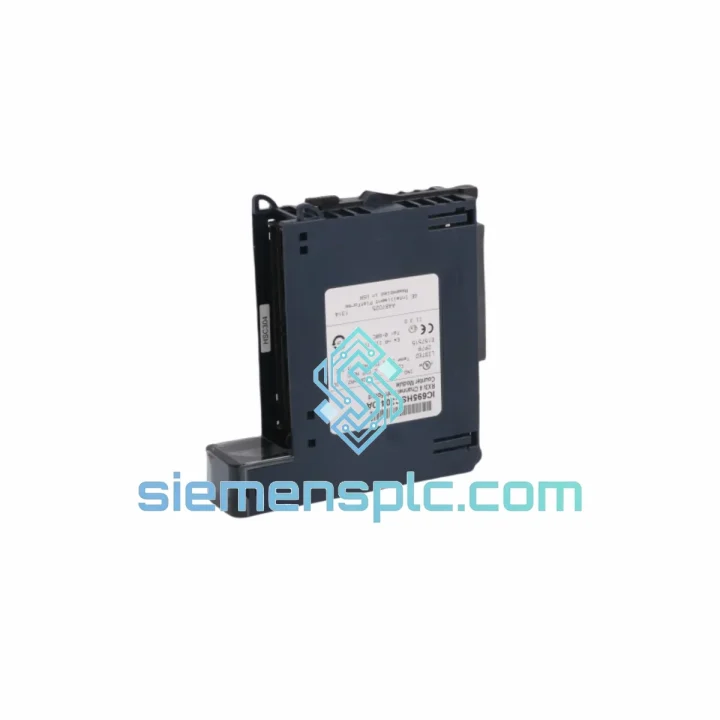

GE IC695HSC304 High Speed Counter Module – PACSystems RX3i

GE IC695HSC304: 4-Channel High-Speed Counter Module for PACSystems RX3i Control Architecture

In motion-critical and high-throughput manufacturing environments, the integrity of pulse-train acquisition defines the accuracy of every downstream control decision. The GE IC695HSC304 is a dedicated 4-channel high-speed counter module engineered for the PACSystems RX3i backplane platform. It processes incremental encoder signals at frequencies up to 1 MHz per channel, executing count accumulation entirely in onboard hardware — decoupled from the CPU scan cycle. This architectural separation is the defining characteristic that makes the IC695HSC304 suitable for applications where positional data must be captured without scan-induced jitter or latency.

The module accepts both RS-422 differential (5 V DC) and single-ended (12–24 V DC) encoder inputs, accommodating the full spectrum of incremental encoder output standards found in servo drives, spindle motors, and linear scale systems. Each channel independently supports quadrature decoding in x1, x2, and x4 multiplication modes, pulse/direction input, and up/down count configurations. Four configurable digital outputs per module allow hardware-triggered responses — such as position-based gate signals or marker resets — without routing through the CPU, eliminating the latency inherent in software-based output control.

Within the PACSystems RX3i ecosystem, the IC695HSC304 occupies a single universal backplane slot and communicates over the RX3i high-speed backplane bus. Configuration and diagnostics are managed through Proficy Machine Edition (PME), where channel parameters, output presets, and fault reporting are fully integrated into the project tree. Fault data propagates to the CPU’s I/O fault table in real time, enabling the application program to respond to counter overflow, signal loss, or output fault conditions without polling overhead.

The module’s hardware counter registers are 32-bit signed integers, providing a count range of ±2,147,483,648 — sufficient for long-travel linear axes and multi-revolution absolute position tracking without software rollover management. Preset and capture registers allow the application to define reference positions and latch counts on external trigger events, supporting registration mark detection, flying shear synchronization, and cam-profile generation directly from the counter hardware.

From a system reliability standpoint, the IC695HSC304 supports hot-swap replacement on compatible RX3i backplanes (subject to CPU firmware version and backplane model), reducing unplanned downtime during maintenance windows. The module operates across an ambient temperature range of 0°C to 60°C and meets IEC 61131-2 environmental requirements for industrial panel installation.

Typical deployment scenarios include multi-axis CNC position feedback, packaging line registration control, printing press web synchronization, conveyor speed regulation, and turbine/flow pulse metering in process automation. In each case, the IC695HSC304 provides the hardware foundation for deterministic, scan-independent position and velocity data acquisition within a unified PACSystems RX3i control architecture.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC695HSC304 implements a dedicated FPGA-based counting architecture that operates asynchronously from the RX3i CPU scan. Each of the four counter channels is serviced by an independent counting engine within the FPGA fabric, ensuring that a high-frequency burst on channel 1 does not introduce any timing interference on channels 2 through 4. This channel isolation is a hardware guarantee, not a software scheduling artifact.

For differential RS-422 inputs, the module’s input receivers apply line termination and common-mode rejection to suppress noise induced by long cable runs in electrically noisy panel environments. The differential threshold is set to the RS-422 standard (±200 mV minimum), providing reliable signal discrimination even when cable lengths approach 100 meters at reduced frequencies. Single-ended inputs pass through Schmitt-trigger conditioning with hysteresis, preventing false counts from slow-edge or noise-contaminated signals in 12–24 V DC encoder wiring.

Quadrature decoding logic within the FPGA evaluates the phase relationship between the A and B encoder channels on each update cycle. In x4 mode, all four edges (rising and falling) of both A and B are counted, yielding four times the native encoder resolution — a critical capability for high-precision positioning where encoder line density is constrained by mechanical or cost factors. The Z (index) channel is processed as a hardware latch trigger, capturing the counter value at the exact moment the index pulse occurs without CPU involvement.

The four digital outputs are driven by the FPGA output logic, not the CPU. Preset comparators within the FPGA continuously compare the live counter value against user-defined preset registers. When a match occurs, the corresponding output transitions within the FPGA’s output propagation delay — typically sub-microsecond — independent of the CPU scan period. This hardware-level output response is essential for flying shear control, registration mark correction, and cam-output generation where millisecond-level CPU response latency is unacceptable.

EMC design on the IC695HSC304 follows GE’s standard RX3i module architecture: the backplane connector side and the field wiring side are galvanically isolated through optocoupler barriers on the input signal paths. This isolation breaks ground loops between the encoder power supply domain and the RX3i backplane power domain, a common source of count errors in installations where encoder cables share conduit with motor power wiring. The module’s PCB layout routes high-frequency counter signal traces with controlled impedance and ground plane shielding to minimize radiated emissions from the 1 MHz signal paths.

System Integration Benefits

• Scan-Independent Count Integrity: Hardware counting in the FPGA ensures zero missed pulses regardless of CPU scan load, PLC program complexity, or communication traffic on the backplane.
• Unified Engineering Environment: Full configuration, parameter assignment, and diagnostic access through Proficy Machine Edition eliminates the need for separate counter configuration tools or external software utilities.
• Real-Time Fault Propagation: Counter overflow, signal loss, and output fault conditions are reported to the CPU’s I/O fault table within one scan cycle, enabling application-level fault handling without polling loops.
• Hardware Preset Outputs: Position-triggered digital outputs respond at FPGA speed, decoupling time-critical output events from CPU scan timing and enabling sub-millisecond output response to position thresholds.
• Multi-Mode Encoder Compatibility: A single module type supports RS-422 differential, 12 V DC single-ended, and 24 V DC single-ended encoders, reducing spare parts inventory and simplifying procurement across mixed encoder installations.
• 32-Bit Counter Depth: The ±2,147,483,648 count range accommodates long-travel axes and high-resolution encoders without application-level rollover management, reducing program complexity and eliminating a common source of position tracking errors.
• Galvanic Input Isolation: Optocoupler isolation on all input channels protects the RX3i backplane from field-side voltage transients and ground potential differences, extending system MTBF in electrically demanding environments.
• Hot-Swap Maintenance: Module replacement without full system shutdown (on supported backplane and CPU firmware combinations) reduces maintenance-induced production downtime and simplifies field service procedures.
• Deterministic Velocity Calculation: The module’s capture register function latches counter values on external trigger events with hardware-level timing accuracy, providing the data foundation for velocity and acceleration calculations free from scan-cycle timing uncertainty.
• Scalable Multi-Axis Architecture: Multiple IC695HSC304 modules can be installed in the same RX3i chassis, scaling the system to 8, 12, or 16 independent counter channels without external counter hardware or additional communication interfaces.

Quality Assurance & Global Logistics

Every IC695HSC304 unit supplied through siemensplc.com is sourced as genuine GE Automation & Controls hardware. Each module undergoes a structured pre-shipment verification process: visual inspection of PCB, connector, and label integrity; cross-reference of serial number and date code against manufacturer records; and functional verification in a live RX3i rack environment where applicable. Units are packaged in anti-static ESD bags with desiccant, foam-lined cartons, and tamper-evident sealing to maintain component integrity during international transit.

Shipments originate from our warehouse in Xiamen, China, a major export hub with direct access to international freight carriers including DHL, FedEx, UPS, and TNT. Standard international delivery times range from 3 to 7 business days to most destinations in North America, Europe, Southeast Asia, and the Middle East. Expedited shipping options are available for urgent requirements. All export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import regulations. A 12-month warranty covers manufacturing defects from the date of shipment.
