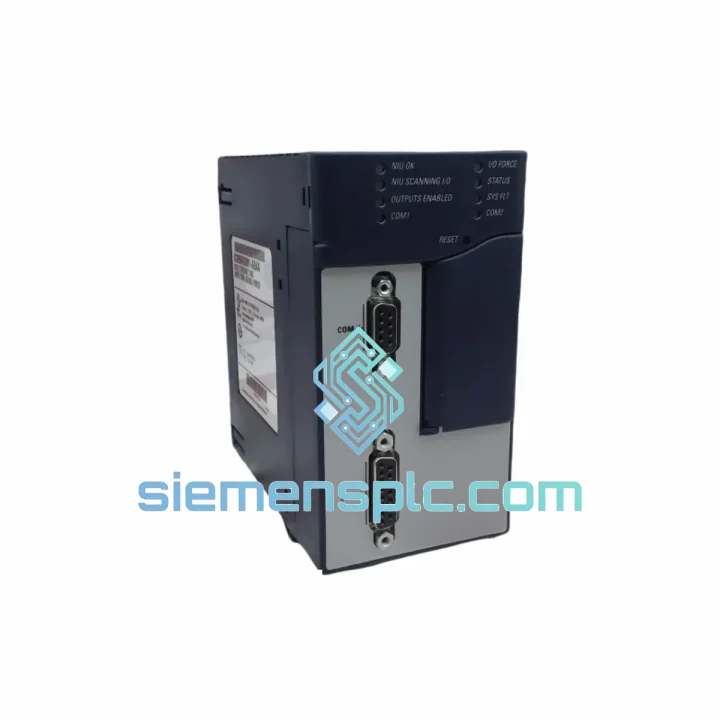

GE IC695NIU001-ACAD Network Interface Unit – PACSystems RX3i

GE IC695NIU001-ACAD — Ethernet Network Interface Unit for PACSystems RX3i Distributed I/O Architecture

The GE IC695NIU001-ACAD is a single-slot Ethernet Network Interface Unit (NIU) designed for the PACSystems RX3i platform, functioning as the autonomous communication node controller for remote I/O drops in distributed control architectures. Its core role is to decouple the remote backplane’s I/O scan cycle from the host CPU’s application program execution, a structural requirement in process and discrete manufacturing environments where field signal latency must remain bounded regardless of controller workload. The module manages its own local process image table, handles all backplane slot arbitration via a time-division multiplexing (TDM) bus controller ASIC, and encapsulates I/O data into PROFINET RT Class 1 frames for transmission to the Ethernet master — typically an IC695CPE330 or IC695CPE310 CPU — at update intervals as low as 1 ms.

Beyond its primary I/O gateway function, the IC695NIU001-ACAD integrates two independently configurable serial ports (RS-232 or RS-485) that allow direct field attachment of legacy serial instruments — variable-frequency drives, weigh-scale terminals, barcode scanners, third-party HMI panels — without an intermediate serial-to-Ethernet converter appliance. Each port supports baud rates from 300 bps to 115,200 bps with selectable framing parameters (7/8 data bits, 1/2 stop bits, odd/even/no parity), and serial data is routed transparently to the host CPU via the RX3i firmware’s Serial I/O (SIO) service layer. Both ports are optically isolated at 2,500 V RMS, preventing ground loop interference when field devices operate from independent power references.

The module’s Ethernet port operates at 10/100BASE-TX with auto-negotiation and supports simultaneous PROFINET RT isochronous I/O traffic alongside standard TCP/IP services — SRTP, Modbus TCP — on the same physical link. This eliminates the need for a dedicated secondary network interface for non-time-critical data collection tasks. The onboard Ethernet magnetics transformer provides 1,500 V isolation between the RJ-45 connector and the internal PHY, meeting IEC 61000-4-5 surge immunity at ±2 kV line-to-earth.

In terms of EMC design, the module’s PCB employs a four-layer stackup with dedicated ground planes separating the digital logic layer from the analog serial interface layer. Ferrite bead filters on all backplane power rail entry points suppress conducted emissions across the 150 kHz–30 MHz band. An independent hardware watchdog timer monitors the internal microprocessor; if the firmware fails to service the watchdog within the configured timeout window (default: 200 ms), the module asserts a backplane fault signal, forces all local outputs to their configured fault-state values (hold-last or de-energize), and logs a structured diagnostic record to the RX3i fault table — preventing undefined actuator states from propagating into the field.

The IC695NIU001-ACAD is compatible with IC695 Universal Backplanes in 7, 12, and 16-slot configurations. On supported backplanes, the module supports hot-insertion and hot-removal under live system power, with the backplane bus controller detecting module presence via a dedicated slot-sense line and initiating a controlled re-initialization sequence to minimize I/O downtime during in-service replacement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

TDM Backplane Bus Controller: The IC695NIU001-ACAD’s backplane interface is governed by a dedicated bus controller ASIC implementing a time-division multiplexing arbitration scheme. Each populated slot in the IC695 backplane is assigned a fixed time slot within the scan frame, eliminating bus contention entirely. This is a structural departure from the parallel shared-bus architecture of the legacy Series 90-30 platform, where multiple modules competing for bus access introduced measurable latency jitter under high I/O density. The TDM scheme guarantees that the NIU’s data transfer window occurs at a fixed offset within every backplane scan cycle, enabling the module to maintain a consistent local process image update rate independent of the number of I/O modules installed in adjacent slots.

Optical Isolation on Serial Ports: The RS-232/RS-485 isolation barrier uses high-speed optocouplers rated at 2,500 V RMS continuous isolation voltage. In industrial panel environments where field devices — drives, transmitters, weigh bridges — are powered from separate transformer secondaries, ground potential differences of 50–200 V between equipment chassis are common. Without galvanic isolation, these differentials appear as common-mode noise on the serial data lines, causing framing errors and data corruption at baud rates above 9,600 bps. The IC695NIU001-ACAD’s isolation architecture eliminates this failure mode entirely, allowing reliable RS-485 communication at 115,200 bps across cable runs up to 300 m in electrically noisy environments.

PROFINET RT Frame Scheduling: In PROFINET RT Class 1 mode, the IC695NIU001-ACAD exchanges I/O data within reserved Ethernet bandwidth slots managed by the PROFINET controller (the RX3i CPU). The module’s internal Ethernet MAC is configured to transmit its cyclic data frame at a fixed phase offset within the PROFINET send clock period, which is configurable from 250 µs to 4 ms in the Proficy Machine Edition PROFINET configuration tool. This phase-locked transmission eliminates the queuing jitter inherent in standard Ethernet CSMA/CD operation and keeps cycle-to-cycle I/O variation below ±100 µs on a managed switch infrastructure with PROFINET-aware QoS configuration.

Fault Containment and Output Safe-State Logic: The module’s hardware watchdog operates on a dedicated timer circuit independent of the main microprocessor clock domain. Upon watchdog expiry, a hardware reset line is asserted directly to the backplane fault bus, bypassing the firmware stack entirely. Each digital output module in the remote drop reads this fault bus signal and transitions its outputs to the pre-configured safe state — either hold-last-value or de-energize — within one backplane scan cycle (typically <1 ms). This hardware-enforced fault propagation path ensures that a firmware hang or communication loss results in a deterministic, predictable field output state rather than an undefined condition.

System Integration Benefits

• Scan Cycle Independence: The NIU’s local I/O scan operates on its own timing reference, ensuring field signal capture intervals remain consistent even when the host CPU is executing computationally intensive function blocks or handling peak communication loads on the primary network segment.
• Sub-millisecond I/O Jitter: PROFINET RT Class 1 isochronous operation constrains cycle-to-cycle I/O update variation to below ±100 µs on a properly configured managed switch, meeting the timing requirements of closed-loop PID and coordinated motion control applications.
• Serial Device Integration Without Gateway Hardware: The two onboard isolated serial ports eliminate standalone serial-to-Ethernet converter appliances for legacy field instruments, reducing panel component count, wiring complexity, and the number of independent power supplies required in the remote I/O enclosure.
• Structured Fault Diagnostics: The module populates the RX3i system fault table with typed diagnostic records — Ethernet link loss, serial framing errors, backplane communication faults, power rail anomalies — accessible in Proficy Machine Edition without custom diagnostic ladder logic, reducing mean time to diagnose (MTTD) during production incidents.
• Hot-Swap Capability: Module replacement under live system power, with controlled re-initialization via the backplane slot-sense mechanism, reduces planned maintenance windows and eliminates the need to power down the entire remote drop for single-module servicing.
• Scalable Distributed Topology: A single RX3i CPU can manage multiple IC695NIU001-ACAD nodes across a standard Ethernet switch fabric, scaling from a single remote drop to multi-area distributed architectures without dedicated fieldbus cabling infrastructure or additional communication processors.
• Mixed-Traffic Ethernet Port: Simultaneous support for PROFINET RT isochronous I/O and standard TCP/IP services (SRTP, Modbus TCP) on the same physical Ethernet link eliminates the need for a secondary NIC for supervisory data collection, historian integration, or remote diagnostics.
• Unified Engineering Toolchain: Full configuration, diagnostics, and firmware management within Proficy Machine Edition — the same environment used for CPU programming, HMI configuration, and motion axis setup — eliminates separate configuration utilities and reduces commissioning time for multi-drop distributed I/O systems.
• Deterministic Fault-State Output Behavior: Hardware-enforced safe-state logic on all remote output modules ensures that communication loss or NIU firmware failure results in a defined, pre-configured field output condition within one backplane scan cycle, supporting functional safety requirements in process shutdown and emergency stop circuits.

Quality Assurance & Global Logistics

Each IC695NIU001-ACAD unit supplied through siemensplc.com is sourced via verified procurement channels with full GE / Emerson factory traceability documentation. Units are held in a climate-controlled warehouse facility in Xiamen, China, maintained at 20 °C ±5 °C and 40–60% relative humidity to preserve PCB and connector integrity during storage. Prior to dispatch, every module passes a three-stage outbound inspection protocol: label authenticity and connector condition verification, power-on self-test confirmation, and ESD-safe packaging in anti-static shielding bags with desiccant and humidity indicator cards.

Export shipments from Xiamen are routed via DHL Express, FedEx International Priority, and UPS Worldwide Express, with the following typical transit windows: Southeast Asia 2–4 business days; Europe 3–5 business days; North America 4–6 business days; Middle East 3–5 business days. All export documentation — commercial invoice, packing list, certificate of origin, and HS Code 8537.10 classification — is prepared in compliance with applicable customs regulations. Pre-shipment documentation packages for expedited customs clearance are available upon request. A 12-month warranty from the date of shipment covers manufacturing defects and confirmed functional failures under normal operating conditions as defined in the GE PACSystems RX3i hardware reference manual.
