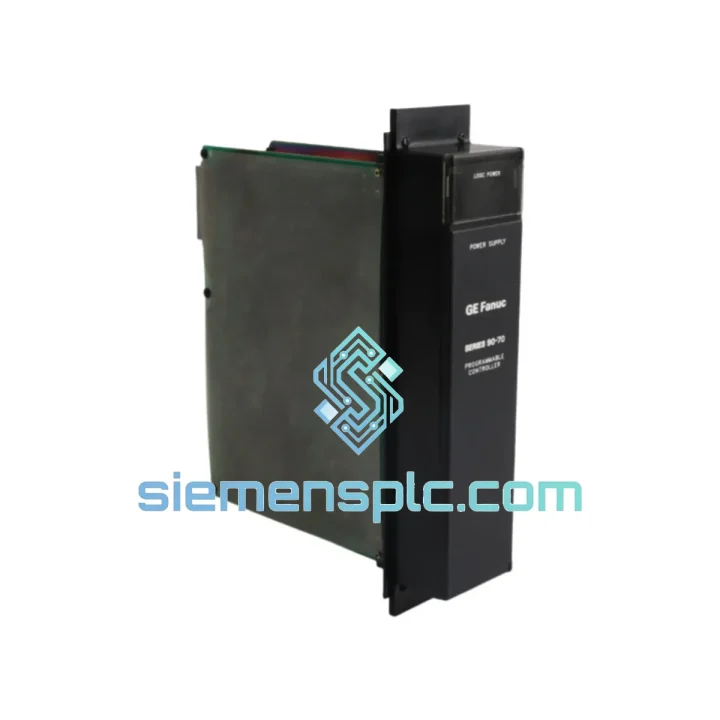

GE IC697PWR711 PLC Power Supply Module – Series 90-70

GE IC697PWR711 — AC Input Backplane Power Supply for Series 90-70 PLC Systems

The GE IC697PWR711 is a dedicated AC-input power supply module engineered for the GE Series 90-70 programmable logic controller platform. Its primary function within the control loop is to convert wide-range AC mains voltage into a tightly regulated 5 VDC backplane bus, sustaining the logic power rail that feeds every CPU, communications, and I/O module installed in the IC697 rack. Without a stable, low-ripple 5 VDC bus, deterministic scan-cycle execution is impossible; the IC697PWR711 is therefore not a peripheral — it is the electrical foundation of the entire control node.

In multi-rack Series 90-70 architectures, each expansion rack requires its own dedicated power supply. The IC697PWR711 occupies the leftmost slot of any IC697 baseplate, delivering regulated power directly onto the backplane bus bars without intermediate cabling. This direct-coupled topology eliminates the impedance discontinuities and voltage-drop uncertainties that arise in externally wired power distribution schemes, and it ensures that transient load steps from high-density discrete I/O switching are absorbed locally within the rack rather than propagated across the system bus.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC697PWR711 employs a forward-mode switching topology operating at a fixed high-frequency switching rate, which keeps the transformer core volume compact while achieving the tight output regulation required by CMOS-level logic on the Series 90-70 backplane. The AC input stage incorporates a full-bridge rectifier followed by a bulk electrolytic hold-up capacitor bank sized to sustain output regulation through a minimum 20 ms AC dropout — sufficient to bridge a single mains half-cycle interruption without triggering a CPU fault or program scan abort.

The 5 VDC output rail passes through a dedicated LC output filter before reaching the backplane bus bars. This filter attenuates switching-frequency ripple to below 50 mV peak-to-peak, a specification that directly protects the analog reference voltages inside co-installed analog I/O modules (IC697ALG series) from noise-induced offset errors. The +24 VDC auxiliary output is derived from a separate secondary winding with its own rectification and regulation stage, providing galvanic isolation from the 5 VDC logic rail — a design choice that prevents field-side ground loops from coupling noise into the CPU’s logic supply.

EMC performance is addressed at the input stage through a common-mode choke and X/Y-class capacitor network that suppresses both differential-mode and common-mode conducted emissions to CISPR 11 Class A limits. The module’s steel enclosure provides supplementary shielding against radiated emissions from the internal switching stage, and the backplane connector is mechanically keyed to prevent reverse insertion — a hardware interlock that eliminates the risk of supply-rail reversal during maintenance.

The under-voltage detection circuit monitors the 5 VDC bus continuously. When bus voltage falls below the lower threshold (typically 4.75 VDC), the module asserts a Power-Fail signal on the backplane before the bus collapses below the CPU’s minimum operating voltage. This early-warning signal gives the IC697 CPU sufficient time to complete an orderly program-state save to battery-backed SRAM, ensuring that the last-known output state is preserved for bumpless restart after power restoration — a behavior that is architecturally equivalent to a controlled UPS handoff at the module level.

System Integration Benefits

• Direct Backplane Coupling Eliminates Wiring Impedance: Power is delivered onto the IC697 bus bars through a zero-length backplane connection, removing the voltage-drop and inductance variables that affect externally wired DC distribution schemes. This keeps the 5 VDC bus within regulation across the full 3.4 A load range without requiring oversized conductors or remote-sense compensation.
• Deterministic Power-Fail Signaling: The hardware Power-Fail assertion precedes bus collapse by a defined margin, giving the CPU a guaranteed window to execute its shutdown sequence. This determinism is essential in process control applications where an uncontrolled output state during power loss can trigger safety interlocks or damage downstream equipment.
• Isolated 24 VDC Auxiliary Rail Simplifies Panel Design: The galvanically isolated +24 VDC output can power field-side relay coils, proximity sensors, or indicator lamps directly from the PLC rack without requiring a separate 24 VDC DIN-rail supply. This reduces panel component count, eliminates a potential ground-loop path, and simplifies the panel’s power distribution diagram.
• Wide AC Input Range Supports Global Deployment: Switch-selectable 120/240 VAC input means a single part number covers both North American 120 VAC panels and international 230 VAC installations. Procurement teams maintain one SKU across global projects, reducing spare-parts inventory complexity.
• 20 ms Hold-Up Sustains Scan Continuity Through Mains Transients: The bulk capacitor hold-up time bridges momentary voltage dips common in industrial environments near large motor starters or welding equipment. The CPU scan cycle continues uninterrupted through these transients, preventing nuisance faults that would otherwise require operator intervention to clear.
• Thermal Shutdown Protects Adjacent Modules: An internal thermal sensor monitors junction temperature and initiates a controlled shutdown before thermal runaway can damage the module or adjacent backplane components. The shutdown is logged as a diagnostic event on the backplane, giving maintenance personnel a clear fault signature rather than an ambiguous system failure.
• Drop-In Replacement Compatibility Across IC697 Rack Generations: The IC697PWR711 is electrically and mechanically compatible with all IC697 baseplates produced across the Series 90-70 platform lifecycle. No firmware changes, no configuration file edits, and no rack modifications are required on swap — mean-time-to-repair is bounded by the physical module exchange time alone.
• Diagnostic Transparency via Backplane Status Signals: Beyond Power-Fail, the module drives a DC-OK status signal that the CPU reads as a health indicator. System integrators can map this signal to an HMI tag or SCADA alarm point, providing operators with real-time visibility into power supply health without requiring additional field wiring or external monitoring hardware.

Quality Assurance & Global Logistics

Every IC697PWR711 unit dispatched from our Xiamen, China facility is sourced through verified industrial automation supply channels and subjected to a structured pre-shipment inspection protocol. Each module undergoes visual examination for physical integrity, label authenticity, and date-code consistency with GE Fanuc manufacturing records. A functional power-on test confirms that the 5 VDC output regulation and +24 VDC auxiliary output both fall within published specification limits before the unit is cleared for dispatch.

Packaging follows ESD-safe procedures: modules are placed in anti-static bags with humidity indicator cards, cushioned in foam-lined cartons, and sealed with tamper-evident tape. Commercial invoices, packing lists, and HS code declarations (8537.10) are prepared as standard documentation for customs clearance in all major import markets. For regulated industries requiring traceability, a Certificate of Conformance is available on request.

Logistics from Xiamen covers express air freight (DHL / FedEx / UPS) with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. Sea freight consolidation is available for bulk project orders. All shipments are tracked end-to-end, and tracking numbers are provided within 24 hours of dispatch. Emergency same-day quotation and expedited shipping are available for unplanned maintenance situations — contact us directly via the channels below.
