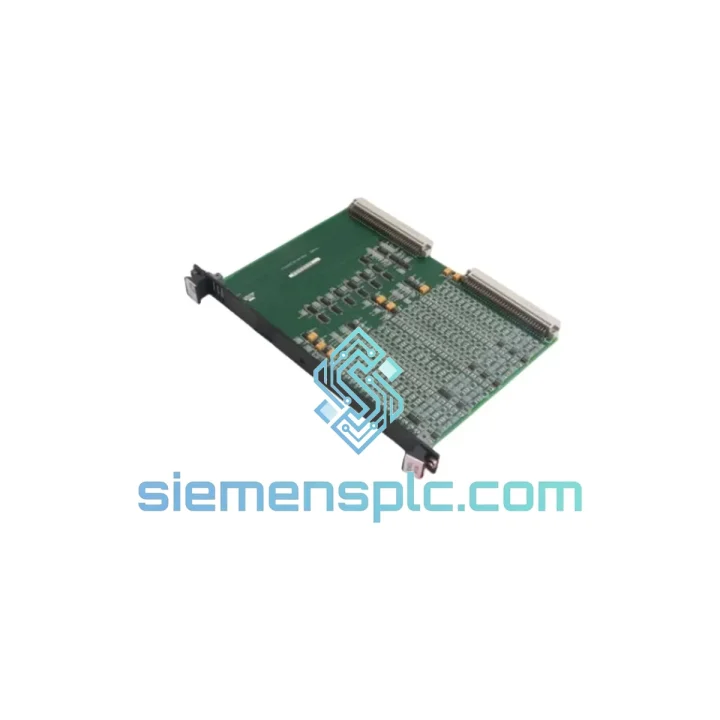

GE IS200AEBEG1AAB Analog Ethernet Board

GE IS200AEBEG1AAB: Stop the Clock on Turbine Downtime — Ship Today

Every minute your Mark VI turbine control system sits offline, the losses compound. A failed IS200AEBEG1AAB board doesn’t just interrupt a process — it shuts down power generation, trips compressor trains, and puts your entire facility on emergency footing. We stock the GE IS200AEBEG1AAB Analog & Ethernet Board specifically for this scenario: verified, tested, and ready to leave Xiamen within 24 hours of order confirmation. While your procurement team is still raising a PO, your replacement board is already being packed.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The IS200AEBEG1AAB sits at the intersection of analog field wiring and the Mark VI IONet backbone. When it fails, the symptoms are rarely subtle. Here’s what you’ll typically see and how to handle the swap correctly:

Common Failure Indicators:

• IOPACK COMM FAIL alarm on the HMI — the controller has lost Ethernet contact with the I/O pack containing this board. First step: check the IONet switch port LEDs. If the link light is dead at the board end, the Ethernet PHY on the AEBEG1 has likely failed.
• Analog channel faults (AI_FAULT or AO_FAULT) on specific channels — often caused by a failed op-amp stage or blown protection diode on the analog front-end. If only one or two channels are affected, the board is partially functional but unreliable; replace it before the next trip.
• Intermittent signal dropouts on thermocouple inputs — cold-junction compensation circuit degradation. Common in boards that have operated in high-ambient-temperature enclosures for 8+ years.
• Board LED status: On a healthy IS200AEBEG1AAB, the green RUN LED should be steady. A flashing or absent RUN LED with a solid red FAULT LED indicates the board has failed its internal self-test at power-up.

Replacement Procedure — Key Steps:

1. Confirm firmware revision compatibility before ordering. The Mark VI controller firmware version determines which AEBEG1 hardware revision is acceptable. Pull the existing board’s label and cross-reference with your Mark VI release notes or contact GE Controls support for the compatibility matrix.
2. De-energize the I/O pack — the IS200AEBEG1AAB is hot-swap capable within the Mark VI architecture, but only if your site procedures permit live-rack maintenance. If not, coordinate a controlled shutdown window.
3. Note the IONet port assignment before removal. The replacement board must be connected to the same IONet switch port to inherit the existing IP address assignment from the controller’s configuration database (ToolboxST).
4. No DIP switch or rotary address setting is required on the AEBEG1 itself — the Mark VI uses software-based I/O pack addressing via ToolboxST. However, verify that the I/O pack’s address has not been duplicated elsewhere on the IONet segment after the swap.
5. After insertion, monitor the ToolboxST I/O diagnostics screen for 2–3 minutes. The controller will re-establish communication, run the board’s self-test, and report channel status. Confirm all previously faulted analog channels return to healthy state before returning the turbine to service.
6. Log the replacement in your CMMS with the new board’s serial number and test report reference. GE Mark VI audit trails require traceability of I/O board changes for warranty and compliance purposes.

Reliability in Harsh Conditions

The IS200AEBEG1AAB was engineered for the realities of turbine hall environments — not a climate-controlled server room. GE’s design specification for Mark VI I/O boards mandates performance across conditions that would destroy commercial-grade electronics within weeks.

The board’s PCB is fully conformal-coated, providing a protective barrier against condensation, salt-laden air in coastal and offshore installations, and the fine metallic particulates common in steel mill and mining environments. The coating is applied to IPC-CC-830 standards, covering all component bodies, solder joints, and exposed copper traces.

Vibration tolerance is validated to IEC 60068-2-6 test profiles — the board remains fully operational under sinusoidal vibration up to 2g across the 10–500 Hz range, which covers the primary excitation frequencies generated by gas turbine compressor stages and steam turbine blade passing frequencies. Shock resistance is rated to 15g per IEC 60068-2-27, accommodating the mechanical transients that occur during turbine trips and emergency shutdowns.

Thermal cycling performance is validated across the full 0°C to +60°C operating range with no derating of analog accuracy. The on-board cold-junction compensation for thermocouple inputs maintains accuracy within ±1°C across the entire temperature range — critical for exhaust temperature monitoring where a 5°C measurement error can mask an impending hot-section failure.

Every refurbished IS200AEBEG1AAB we ship has been thermally cycled through a soak test at +55°C for a minimum of 8 hours prior to dispatch, screening out any latent component failures before the board reaches your site.

Global Express Logistics

Our Xiamen warehouse operates on a 24-hour dispatch cycle for in-stock items. The moment your payment clears, the board is pulled from ESD-safe storage, re-inspected, packed in a double-wall carton with anti-static foam inserts, and handed to the courier the same business day.

Standard routing for urgent orders:

• DHL Express Worldwide — door-to-door in 1–3 business days to most of Europe, the Middle East, Southeast Asia, and North America. Real-time tracking from Xiamen Gaoqi International Airport.
• FedEx International Priority — preferred for US-bound shipments requiring customs pre-clearance. Typical transit: 2–3 business days to major US hubs.
• TNT / UPS Express — available for specific corridors including India, Brazil, and Sub-Saharan Africa where DHL coverage is limited.

All shipments include a commercial invoice, packing list, and functional test report. For customers in countries requiring an ECCN classification or end-user certificate, our logistics team handles the documentation — we’ve shipped to over 60 countries and understand the export compliance requirements for industrial control equipment originating from China.

For plant-down emergencies, contact us directly via WhatsApp for a same-day shipping confirmation. We can arrange Saturday dispatch for critical situations.
