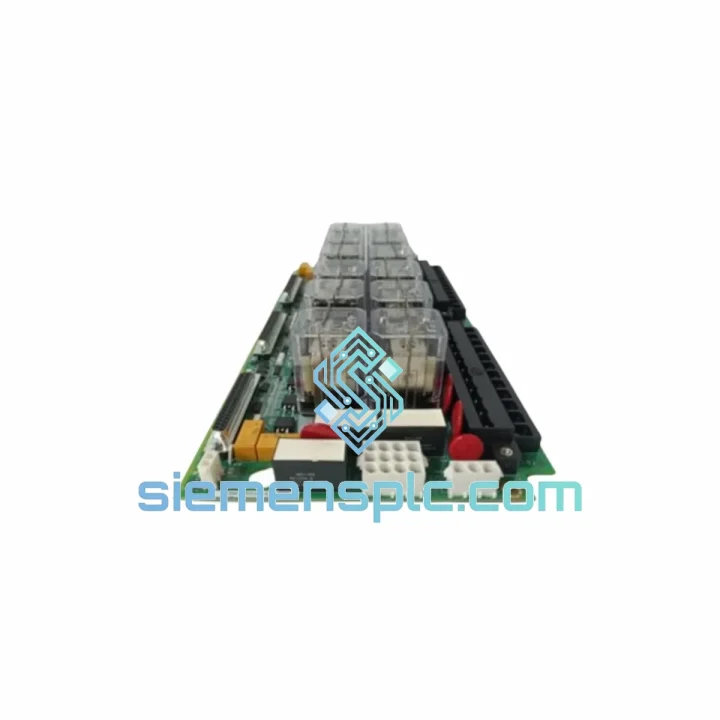

GE IS200TGNAH1AAA Terminal Board

GE IS200TGNAH1AAA TG Terminal Board – Stop the Clock on Your Turbine Outage

Every hour a gas turbine sits idle costs real money — in lost generation revenue, contractual penalties, or stalled production. When the IS200TGNAH1AAA is the failed component holding up your Mark VI panel, you need a verified unit on a plane, not a procurement cycle. siemensplc.com maintains ready stock of this board specifically because unplanned outages don’t wait for standard lead times. We ship from Xiamen with DHL/FedEx express documentation pre-prepared, so the moment payment clears, your part moves.

The IS200TGNAH1AAA is the Turbine-Generator Terminal Board within GE’s Mark VI Speedtronic control architecture. It handles the hardwired termination of generator protection signals — voltage feedback, current transformer inputs, synchronization contacts, and protection relay discrete I/O. When this board degrades or fails, the Mark VI loses visibility into generator-side parameters, triggering protective trips or preventing unit startup entirely. There is no software workaround. The board must be replaced.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Based on field experience with Mark VI panels across gas turbine and cogen installations, the IS200TGNAH1AAA presents failure patterns that are worth knowing before you pull the board:

Common Failure Indicators

• L3TRIP / Generator Protection Trip with no upstream fault: The board’s analog input conditioning circuitry for CT/VT signals can drift over time, causing the Mark VI to read out-of-range values and initiate a protective trip. If your protection relay shows no fault but the Mark VI logged a generator parameter alarm, suspect this board before the relay itself.
• Intermittent synchronization failures during startup: Degraded terminal connections on the synchronization contact inputs cause the Mark VI to lose sync signal momentarily. This typically manifests as repeated failed auto-sync attempts with no clear cause in the relay event log.
• Discrete I/O faults on generator breaker feedback: Oxidized terminal block contacts on the discrete input section produce intermittent 52G breaker status faults. Clean contacts first — if the fault persists after cleaning, the board’s input optocoupler circuit has likely failed.
• Noise on generator voltage analog channels: Visible as erratic VPNG or VQNG readings in the Mark VI diagnostic display. Often caused by a failed bypass capacitor on the analog input filter stage.

Replacement Procedure — Key Configuration Points

• Revision matching is mandatory: The H1AAA hardware revision must match your existing board. Substituting a different revision (e.g., H1BAA) without engineering review can cause signal scaling mismatches that the Mark VI will not flag as a hardware fault — it will simply read incorrect values silently.
• No DIP switches or jumpers on this board: The IS200TGNAH1AAA does not carry user-configurable DIP switches. All signal routing is hardwired. However, verify that the mating I/O pack (typically VCMI or VTUR) firmware revision is compatible with your ToolboxST project file before powering up.
• Terminal block torque specification: Re-terminate field wiring to 0.5–0.6 Nm. Under-torqued terminals are the leading cause of repeat failures on this board type in high-vibration turbine enclosures.
• Power-down sequence: De-energize the Mark VI I/O panel section before removing the board. The IS200TGNAH1AAA is not hot-swappable. Failure to de-energize risks latching a protection trip that requires a full controller reset to clear.
• Post-replacement verification: After installation, run the Mark VI diagnostic from ToolboxST and confirm all TG analog channels read within expected range before attempting turbine startup. Check the TGNA diagnostic page specifically for any channel-level faults.

Reliability in Harsh Conditions

The IS200TGNAH1AAA was designed for continuous deployment inside turbine control enclosures — environments that would destroy consumer-grade electronics within weeks. The board’s construction reflects GE’s Speedtronic design philosophy: build for the worst-case site, not the lab.

The PCB substrate uses a high-Tg laminate that maintains dimensional stability at sustained temperatures up to 70°C ambient — typical of turbine enclosures in tropical and desert installations. Conformal coating on the signal conditioning section provides protection against condensation during cold-start cycles and the humidity swings common in coastal and offshore deployments. Terminal block housings are rated for continuous vibration exposure consistent with gas turbine frame vibration profiles, with locking mechanisms that prevent terminal loosening under sustained mechanical excitation.

Component selection on the analog input stage prioritizes long-term drift stability. Precision resistor networks used in the CT/VT signal conditioning maintain their tolerance over a 10+ year service life under normal operating temperatures, which is why boards from early Mark VI installations are still performing within specification today. When a board does fail, it is almost always a discrete component failure — a capacitor, an optocoupler — rather than a systemic design weakness. This makes the board highly suitable for refurbishment, and our tested refurbished units carry the same 12-month warranty as new surplus stock.

Global Express Logistics

siemensplc.com ships from Xiamen, one of China’s primary international cargo hubs with direct DHL and FedEx gateway connections. For emergency orders, the logistics process is straightforward and fast:

• Order confirmation to dispatch: Same-day for orders confirmed before 14:00 CST. Export documentation — commercial invoice, packing list, and HS code declaration — is prepared in parallel with packaging, not sequentially.
• Packaging: Anti-static shielding bag, foam-lined rigid carton, humidity indicator card. The board arrives ready for immediate installation, not requiring additional inspection for transit damage.
• DHL Express: Xiamen to major industrial hubs — Singapore, Dubai, Rotterdam, Houston — typically 2–3 business days door-to-door. Real-time tracking provided at dispatch.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. Transit times comparable to DHL.
• Customs documentation: We prepare full export documentation compliant with Xiamen Customs requirements. HS code 8537.10 is applied for this product category. For destinations requiring an import license or specific certification documentation, notify us at order placement and we will prepare the necessary supporting paperwork.
• Multi-currency payment: USD, EUR, HKD, and CNY accepted. Wire transfer, PayPal, and trade finance terms available for qualified accounts.

If your plant is facing an active outage, contact us directly on WhatsApp for real-time stock confirmation and an expedited quote — we can have a proforma invoice to you within the hour.
