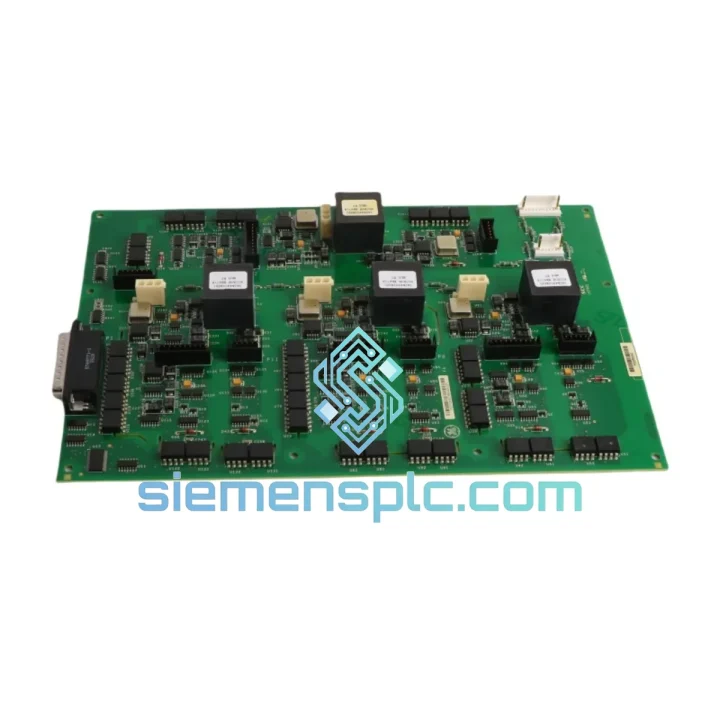

GE IS210AEDBH4A Bridge Interface Card – Mark VI

GE IS210AEDBH4A: IONet Bridge Interface Card in GE Mark VI Turbine Control Architecture

The GE IS210AEDBH4A is a VME-format Bridge Interface Card (AEDB function block) deployed within the GE Mark VI Turbine Control System. Its primary role is to terminate the IONet segment — GE’s proprietary 100 Mbps Ethernet-based I/O network — and translate time-stamped I/O data frames into the backplane bus protocol consumed by the Mark VI controller boards (VCMI, VCRC, VTUR, VPRO). Without a correctly functioning AEDB card, the controller loses visibility into all field I/O connected downstream on that IONet branch, making this module a single-point-of-presence for the entire I/O data path on its assigned network segment.

In a Triple Modular Redundancy (TMR) configuration, three IS210AEDBH4A cards operate in parallel across the R, S, and T controller racks. Each card independently receives and time-stamps the same IONet multicast frames. The VCMI arbitration logic then performs a 2-of-3 majority vote on the decoded data before passing it to the control algorithm. This architecture ensures that a single card failure — whether due to component degradation, connector oxidation, or firmware fault — does not interrupt turbine control continuity. The H4A hardware revision incorporates updated EMI filtering on the IONet RJ-45 interface and revised FPGA logic for improved frame-loss detection under high-traffic burst conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS210AEDBH4A performs three distinct hardware functions that are worth examining at the circuit level:

1. IONet Physical Layer Termination & Frame Decoding. The card’s RJ-45 IONet port connects to a 100BASE-TX PHY with GE-specific VLAN tagging and multicast group membership. Incoming Ethernet frames carry a GE-proprietary application layer that encodes I/O channel data, sequence counters, and hardware timestamps with microsecond resolution. The on-board FPGA decodes these frames and writes the payload into a dual-port SRAM buffer accessible by both the FPGA and the VME bus interface ASIC. The H4A revision added a dedicated frame-loss counter register, allowing the VCMI to distinguish between a silent IONet segment (cable fault) and a card-level decode failure — a diagnostic distinction absent in H2A and H3A revisions.

2. VME Backplane Bus Interface. The card implements a VME A24/D16 slave interface. The VCMI controller board initiates block-transfer (BLT) cycles to read the SRAM buffer at the card’s assigned base address. Cycle time is deterministic: the FPGA asserts DTACK within 120 ns of address decode, ensuring the VCMI’s scan cycle is not stretched by slow memory access. This determinism is critical in a 10 ms control loop where backplane latency directly affects loop closure timing.

3. EMC Design & Isolation. The IONet port is galvanically isolated via a pulse transformer rated at 1500 V isolation. Common-mode chokes on the differential pair suppress conducted emissions from the turbine enclosure environment, where high-frequency switching from excitation systems and variable-frequency drives can inject noise onto Ethernet cable shields. The H4A PCB layout routes the IONet differential pair with controlled impedance (100 Ω ± 10 %) and includes guard traces tied to chassis ground to reduce crosstalk from adjacent VME card logic signals.

System Integration Benefits

• Deterministic I/O Scan Latency: Fixed 120 ns DTACK assertion on the VME bus ensures the VCMI controller’s 10 ms scan cycle closes without jitter introduced by the bridge card, preserving control loop phase margin.
• TMR-Ready Architecture: Three IS210AEDBH4A cards in R/S/T racks receive identical IONet multicast streams; VCMI majority voting tolerates a single card failure without turbine trip, meeting IEC 61511 SIL 2 availability targets.
• Microsecond-Resolution Timestamping: IONet frame timestamps are preserved through the FPGA decode path and presented to the VCMI with sub-millisecond accuracy, enabling sequence-of-events (SOE) reconstruction at the HMI without additional time-synchronization hardware.
• Granular Fault Diagnostics: The H4A frame-loss counter register allows the VCMI to log IONet segment health independently of card health, reducing mean time to diagnose (MTTD) during network faults from hours to minutes.
• Drop-In H4A Upgrade Path: The H4A revision is pin-compatible with H2A and H3A in standard Mark VI backplane slots. No firmware re-flashing or parameter re-mapping is required in the majority of Mark VI cabinet configurations, minimizing planned outage duration during card replacement.
• Galvanic Isolation Protects Controller Rack: The 1500 V pulse-transformer isolation on the IONet port prevents ground-loop currents from the field cable infrastructure from reaching the VME backplane, protecting the VCMI and adjacent cards from transient damage.
• Reduced Spare-Parts Complexity: A single IS210AEDBH4A part number covers all three TMR positions in a Mark VI cabinet, simplifying spare-parts inventory management for plant maintenance teams.
• Compatibility with Mark VIe Hybrid Cabinets: In mixed Mark VI / Mark VIe installations, IS210AEDBH4A cards can operate in Mark VI slots within a hybrid cabinet, allowing phased system upgrades without full cabinet replacement.

Quality Assurance & Global Logistics

Every IS210AEDBH4A unit supplied by siemensplc.com undergoes a structured incoming inspection protocol before dispatch: visual examination of PCB, connectors, and component markings; functional bench verification of VME bus response and IONet port link establishment; and serialization cross-check against GE manufacturing records where available. Units are packed in anti-static shielding bags, placed in foam-lined cartons, and labeled with full traceability documentation including inspection date, technician ID, and test result summary.

Shipments originate from our warehouse in Xiamen, China. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international order. We work with DHL Express, FedEx International Priority, and UPS Worldwide Expedited to deliver to North America, Europe, Southeast Asia, and the Middle East within 3–7 business days for in-stock units. For time-critical plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST. All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.
