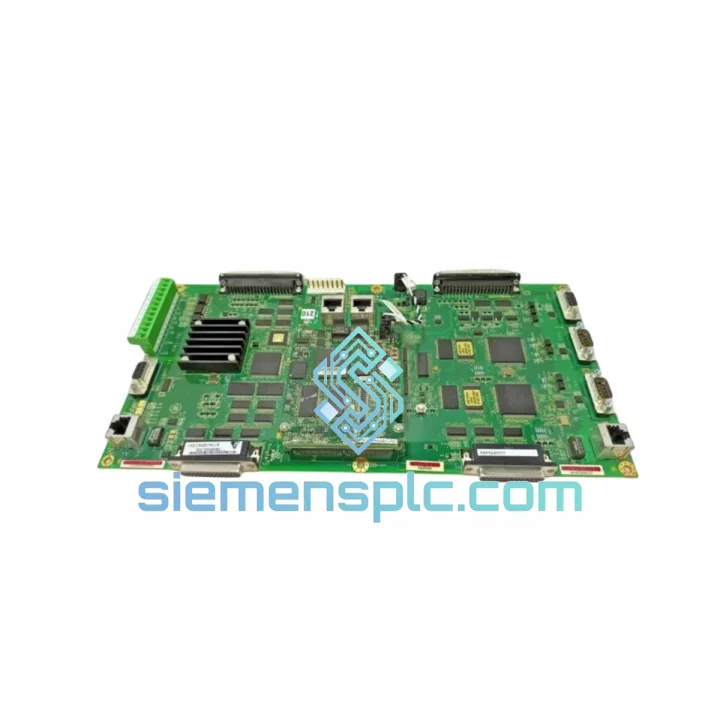

GE IS210MACCH1AKH PC Board – Mark VI Series

GE IS210MACCH1AKH — Machine Protection & Control Signal Processing Board in Mark VI Turbine Control Architecture

The IS210MACCH1AKH is a printed circuit board module engineered for deployment within GE’s Mark VI Turbine Control System. Its primary function is to serve as the machine protection and analog control signal conditioning interface between field instrumentation and the Mark VI control rack’s backplane. Within a typical gas or steam turbine control loop, this board occupies a defined slot in the VCMI, VTUR, or VPRO rack configuration, where it processes vibration, temperature, and speed signals before forwarding conditioned data to the controller via the IONet Ethernet-based backplane. The AKH hardware revision suffix denotes a specific conformal coating specification and PCB revision level, distinguishing it from earlier AKH-series iterations and making direct substitution without engineering review inadvisable in safety-critical installations.

Unlike general-purpose I/O modules, the IS210MACCH1AKH is designed around the deterministic scan-cycle requirements of turbine protection logic. Signal acquisition latency is held within the bounds required for overspeed and vibration trip functions, where response times in the 10–20 ms range are typical system-level requirements. The board interfaces with GE’s ToolboxST configuration environment, allowing engineers to map I/O channels, configure alarm thresholds, and validate signal integrity without physical probing.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS210MACCH1AKH operates within GE’s triple-redundant Mark VI architecture, where three independent controller boards (R, S, T) vote on control outputs using a 2-of-3 median-select algorithm. The MACC board’s role in this architecture is to provide conditioned, noise-filtered analog signals to each controller channel simultaneously, ensuring that the voting logic operates on data of equivalent quality across all three lanes. Any single-board failure in the MACC layer does not propagate a spurious trip because the remaining two channels continue to supply valid data to the voter.

From an EMC design standpoint, the AKH revision incorporates conformal coating across the full PCB surface, providing protection against condensation, corrosive atmospheres, and conductive particulate contamination — conditions common in turbine hall environments where oil mist and humidity are persistent concerns. Signal traces handling low-level analog inputs (millivolt-range thermocouple or vibration transducer signals) are routed with guard traces and ground planes to minimize capacitive coupling from adjacent digital switching circuits on the same board.

The board’s analog front-end employs differential input amplifiers with common-mode rejection ratios (CMRR) sufficient to suppress ground-loop noise induced by long cable runs between field sensors and the control cabinet — a practical necessity in large turbine installations where cable lengths of 50–200 meters are standard. Anti-aliasing filters ahead of the analog-to-digital conversion stage limit the input bandwidth to prevent aliasing artifacts from corrupting the sampled data presented to the backplane.

Backplane communication uses the IONet protocol, which is GE’s deterministic Ethernet variant for intra-rack data exchange. The IS210MACCH1AKH’s onboard microcontroller manages the IONet transaction scheduling, ensuring that data frames are delivered within the scan cycle window without collision or retransmission delays. This determinism is non-negotiable for protection-class functions where a missed scan cycle could delay a trip signal beyond the system’s safety response time budget.

System Integration Benefits

• Deterministic scan-cycle compliance: The board’s IONet interface delivers conditioned signal data within the Mark VI controller’s fixed scan window, preserving the timing integrity required for overspeed and vibration protection functions.
• Triple-redundancy compatibility: Designed to feed identical signal data to all three Mark VI controller channels (R/S/T), supporting the 2-of-3 voting architecture without introducing inter-channel skew.
• Conformal coating (AKH revision): Full-board conformal coating extends service life in turbine hall environments with oil mist, humidity, and conductive particulate — reducing unplanned maintenance intervals.
• ToolboxST integration: Full channel mapping, threshold configuration, and signal diagnostics are accessible through GE’s ToolboxST without requiring physical probing or board removal during commissioning.
• Differential analog front-end: High CMRR differential amplifiers suppress ground-loop noise on long field cable runs, maintaining signal accuracy across large turbine installations.
• Anti-aliasing signal conditioning: Onboard low-pass filtering ahead of ADC conversion prevents aliasing artifacts, ensuring data quality for both control and protection functions.
• Slot-specific form factor: Single-slot rack-mount design with defined slot assignment in VCMI/VTUR/VPRO racks eliminates mechanical integration ambiguity and simplifies replacement procedures.
• Diagnostic transparency: The board supports Mark VI’s online diagnostics framework, allowing the control system to flag signal-out-of-range, open-circuit, and board-health faults without interrupting turbine operation.
• Firmware revision traceability: The AKH hardware suffix is tracked within ToolboxST project files, enabling maintenance teams to verify board-to-firmware compatibility before installation and avoid revision mismatch faults.
• Reduced recommissioning time: Genuine OEM boards with matched hardware revision eliminate the re-tuning and re-validation steps that non-OEM or mismatched-revision substitutes typically require.

Quality Assurance & Global Logistics

Every IS210MACCH1AKH unit supplied by siemensplc.com is sourced through verified OEM and authorized surplus channels, with full traceability documentation available upon request. Prior to shipment, each board undergoes functional inspection and, where applicable, bench testing against GE OEM functional specifications. Anti-static packaging with humidity indicator cards is standard for all PCB shipments, protecting sensitive components during transit across varying climate zones.

Our logistics operation is based in Xiamen, China — a major international port city with direct access to DHL, FedEx, UPS, and TNT express networks. Standard export documentation, including commercial invoices, packing lists, and certificates of conformance, is prepared for every shipment. For time-critical plant maintenance scenarios, same-day dispatch is available for in-stock units confirmed before 14:00 CST. Delivery to major industrial hubs in Southeast Asia, the Middle East, and Europe typically falls within 3–7 business days via express freight. All shipments are tracked end-to-end, with tracking numbers provided within 24 hours of dispatch.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched from Xiamen stock where available.
