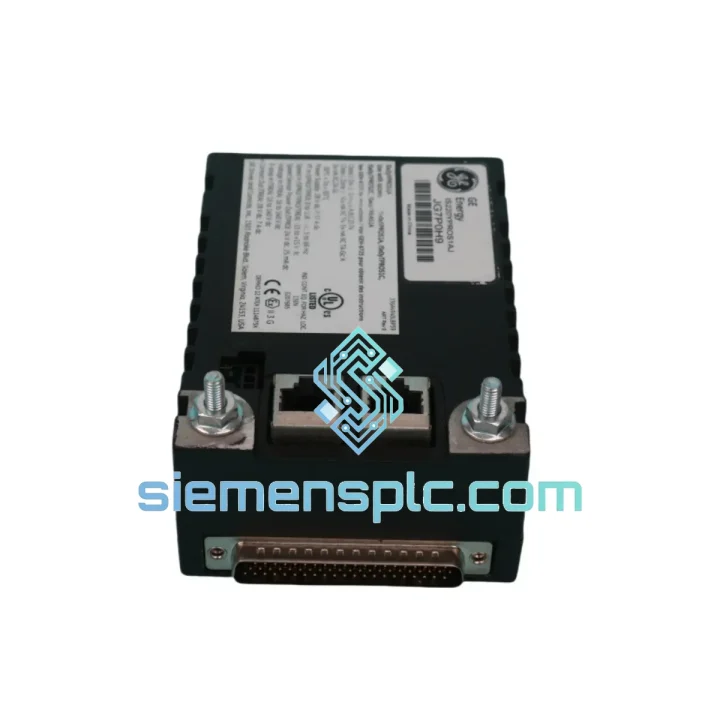

GE IS220PTURH1A Turbine I/O Module

GE IS220PTURH1A Mark VI Turbine I/O Module – Cut Your Downtime Before It Cuts Your Revenue

Every hour a gas turbine sits idle costs real money — in power generation, that number can exceed $50,000/hr. When your Mark VI system throws a fault and the IS220PTURH1A is the culprit, you don’t have time for a 6-week OEM lead time. We stock this module in Xiamen and ship globally within 24 hours of payment confirmation. That’s the only number that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The IS220PTURH1A handles turbine speed pickup signals, exhaust thermocouple inputs, and vibration transducer conditioning inside the Mark VI rack. When this card fails, the controller typically logs one or more of the following diagnostics:

• L3DIAG / L30DIAG — I/O module communication loss on the IONet ring. First step: reseat the card and check the backplane connector for bent pins or oxidation. If the fault persists after reseat, the card itself is the likely culprit.
• Speed signal dropout (TNH = 0 at speed) — Verify the magnetic pickup wiring at TB1 before condemning the card. If wiring checks out and the raw signal is present at the terminal block but absent in the HMI, the IS220PTURH1A input conditioning circuit has failed.
• Thermocouple open-circuit alarms on multiple channels simultaneously — A single open TC is a field wiring issue. Multiple simultaneous opens on a single card almost always indicate a failed reference junction or a blown input protection fuse on the PTUR board.
• Vibration channel saturation (VPRO trip) — Before replacing the card, confirm the Bently Nevada 3300 proximitor gap voltage is within spec (typically –10 VDC ±1 V). If gap is correct and the VPRO trip persists, the IS220PTURH1A vibration input circuit is suspect.

Replacement procedure notes:

• The IS220PTURH1A is hot-swap capable in TMR (Triple Modular Redundant) configurations — the remaining two controllers maintain control while you swap the faulted card. In simplex configurations, a controlled shutdown is required.
• After insertion, the Mark VI controller performs automatic card self-addressing via the IONet. No DIP switch configuration is required on this module — address assignment is handled by the rack slot position and the controller’s I/O configuration database (IOConfig tool).
• Confirm firmware compatibility: the PTUR board firmware version must match the Mark VI controller’s expected I/O firmware revision. Mismatched firmware will result in a persistent L3DIAG fault even with a known-good card. Use the Mark VI Toolbox to verify and update firmware post-swap if needed.
• After replacement, perform a full I/O checkout: verify speed signal scaling, TC cold junction compensation, and vibration channel zero/span against the original commissioning records before returning the unit to service.

Reliability in Harsh Conditions

Gas turbine enclosures are not gentle environments. Ambient temperatures routinely exceed 45°C, vibration from the turbine casing is continuous, and humidity swings are severe in coastal and tropical installations. The IS220PTURH1A is engineered to operate continuously under these conditions — the PCB uses conformal coating on signal-level traces to resist moisture ingress, and the input protection circuitry is rated for transient overvoltages common in industrial field wiring environments.

Connector retention on the backplane edge connector is designed for repeated insertion cycles without degradation of contact resistance — critical in installations where cards are swapped during maintenance outages on a regular schedule. The module’s thermal design allows operation at the upper end of the 0–60°C range without derating, which matters in enclosures where cooling airflow is marginal.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions and packed in anti-static ESD bags with foam cushioning. Every module is inspected for physical damage, connector integrity, and label authenticity before dispatch. We do not ship modules with damaged conformal coating, corroded connectors, or missing firmware labels — these are the failure modes we see most often in grey-market supply chains, and we screen for them explicitly.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. Standard transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL or FedEx

Every shipment includes a commercial invoice, packing list, and HS code declaration (8537.10) for smooth customs clearance. For customers in countries with import duty exemptions on industrial automation components, we can provide a detailed product description letter to support customs classification. Tracking numbers are issued within 2 hours of dispatch and sent directly to your registered email.

For urgent requirements where standard express is not fast enough, we can arrange same-day dispatch with DHL On-Demand Delivery for door-to-door tracking down to the hour. Contact us before 14:00 CST to qualify for same-day cut-off.
