GE Multilin 745-W2-P5-G5-HI-A-L-R Protection Relay

745-W2-P5-G5-HI-A-L-R: Stop the Clock on Your Transformer Outage — Ship Within 24 Hours

Your transformer tripped. The plant is dark. Every hour offline is burning through your maintenance budget and your production schedule simultaneously. You already know the root cause — the protection relay failed, and now you need an exact replacement of the GE Multilin 745-W2-P5-G5-HI-A-L-R in your hands before the next shift starts. We stock this unit in Xiamen and can have it moving via DHL Express within one business day of order confirmation. No substitutes. No compromises. The right part, fast.

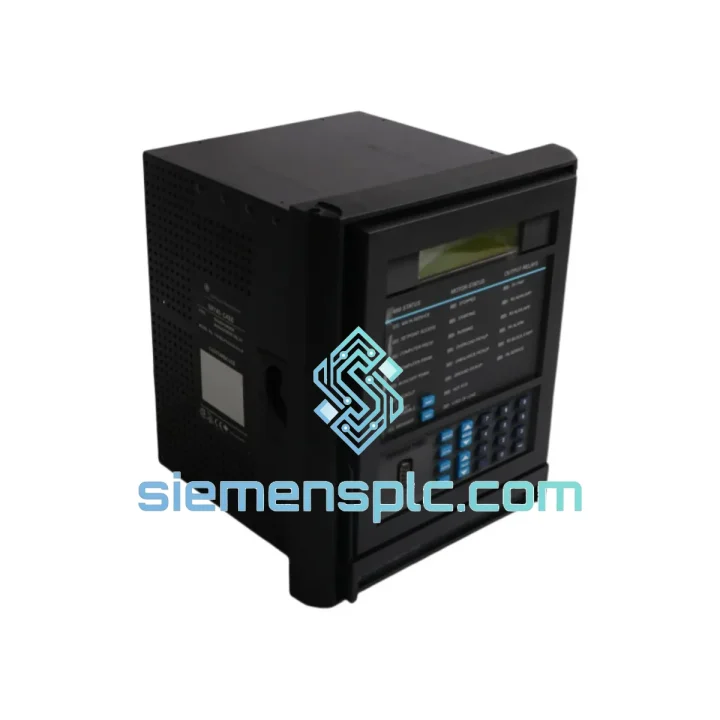

The 745-W2-P5-G5-HI-A-L-R is a dual-winding transformer management relay from GE Multilin’s 745 Series — a platform that has been the backbone of transformer protection in power utilities, petrochemical substations, mining operations, and heavy manufacturing for over two decades. This specific variant carries the W2 (two-winding), P5 (wide-range power supply), G5 (enhanced I/O), HI (high-impedance ground fault detection), A (RS-485/Modbus RTU), L (local LCD HMI), and R (rack mount) designations. Every character in that model string matters when you’re doing a like-for-like swap — and we verify each one before it leaves our warehouse.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on protection relay replacements, here is what actually goes wrong during a 745 swap — and how to avoid turning a two-hour job into a two-day nightmare.

1. Settings Backup Before You Touch Anything
If the failed relay still powers up at all — even partially — connect EnerVista 745 PC software via the RS-485 port and pull a full settings file (.745 extension) before you remove the unit. A corrupted or missing settings file means you are rebuilding CT ratios, differential slopes, harmonic restraint curves, and overcurrent time-current characteristics from scratch. That is a commissioning job, not a maintenance job. If the relay is completely dead, check with your protection engineer for the last archived settings revision.

2. Verify the Exact Model String — Every Character
The 745 series has dozens of ordering variants. Swapping a W2 for a W3 (three-winding) or installing a unit with the wrong power supply suffix (P5 vs P1) will either fail to power up or produce incorrect differential calculations. Confirm the full model string on the nameplate of the failed unit matches 745-W2-P5-G5-HI-A-L-R character for character before accepting any replacement.

3. CT Polarity and Wiring Verification
The most common cause of nuisance tripping after a relay replacement is reversed CT polarity on one winding. Before energizing, use a secondary injection test set to verify differential current reads near zero at no-load. If you see a through-current differential alarm immediately on energization, check CT wiring polarity on both the primary (W1) and secondary (W2) CT circuits before suspecting the relay itself.

4. Inrush Restraint — Second Harmonic Blocking
When you energize the transformer after replacement, the magnetizing inrush current can reach 8–12x rated current for several cycles. The 745 uses second harmonic content (typically >15% of fundamental) to distinguish inrush from an internal fault. If the relay trips on energization, check the harmonic restraint threshold setting — it may have been set too conservatively on the previous unit, or the setting was lost. Default factory setting is 15%; most field applications run 17–20% for older transformers with higher inrush.

5. High-Impedance Ground Fault (HI) Element — Sensitivity Check
The HI suffix means this relay includes restricted earth fault (REF) protection. After replacement, verify the REF current pickup setting matches the original. An incorrectly set REF element is either too sensitive (nuisance trips on load unbalance) or too insensitive (misses incipient winding faults). Typical REF pickup is set at 10–20% of the minimum fault current calculated for a single-phase-to-ground fault at the transformer terminals.

6. Common Fault Codes on the 745 LCD
If the relay is displaying alarms rather than tripping, here are the most frequent codes encountered in the field:

• DIFF ALARM / DIFF TRIP: Differential current exceeds pickup — check CT circuits, wiring, and ratio settings before assuming an internal transformer fault.
• COMM FAIL: RS-485 communication lost — check baud rate (default 9600), parity (none), and termination resistor on the last device in the Modbus chain.
• POWER SUPPLY FAIL: Input voltage outside P5 range — verify supply voltage is within the specified AC/DC input range for the P5 module.
• SELF-TEST FAIL: Internal hardware fault — this relay requires replacement. Do not attempt to reset and return to service.
• CT FAIL: Open CT circuit detected — immediately check CT secondary wiring continuity. An open CT in a live circuit is a personnel safety hazard.

Reliability in Harsh Conditions

The GE Multilin 745-W2-P5-G5-HI-A-L-R is not a panel instrument designed for a climate-controlled control room. It is built to operate in the environments where transformer failures actually happen — outdoor substations in desert heat, coastal petrochemical plants with salt-laden humid air, underground mine substations with constant vibration from blasting and heavy equipment, and steel mill switchrooms where ambient temperatures routinely exceed 50°C.

The relay’s operating temperature range of -40°C to +85°C covers virtually every industrial deployment scenario globally, from Siberian gas processing facilities to Middle Eastern power substations. The conformal-coated PCBs resist moisture ingress and corrosive atmospheres that would degrade standard commercial electronics within months. The relay chassis is designed to IEC 60255 mechanical robustness requirements, including vibration and shock testing that simulates the mechanical stress of switchgear operation and seismic events.

The wide-range P5 power supply module accepts both AC and DC input across a broad voltage range, making the relay immune to the power quality issues — voltage sags, harmonics, and transients — that are endemic in industrial power systems. This is not a relay that needs a clean, regulated supply to function correctly. It is designed to keep protecting your transformer even when the power system around it is behaving badly.

In field deployments across mining, oil and gas, and heavy manufacturing, the GE Multilin 745 series has demonstrated mean time between failures (MTBF) figures that justify its position as the reference standard for transformer protection. When you install a 745-W2-P5-G5-HI-A-L-R, you are not installing a temporary fix — you are restoring the same level of protection that was there before the failure, with a relay that is engineered to outlast the transformer it protects.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the most logistics-connected cities in Asia, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express hubs. This is not a drop-shipping operation. The 745-W2-P5-G5-HI-A-L-R is physically in our facility, inspected, and ready for same-day or next-day dispatch upon order confirmation.

Typical Transit Times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, UK, Netherlands, France): 3–5 business days via DHL Express
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL or FedEx

Every shipment includes full export documentation: commercial invoice, packing list, certificate of origin, and HS code classification for customs clearance. For customers in countries with import duty exemptions or preferential tariff agreements with China, we provide the documentation required to support your customs broker’s duty reduction claim. We have shipped protection relays to over 60 countries and understand the documentation requirements for each major market.

For genuine emergency breakdowns where every hour counts, contact us directly via WhatsApp for real-time stock confirmation and same-day shipping coordination. We can arrange Saturday dispatch and provide airway bill numbers within hours of payment confirmation.

Contact Information

📧 Email: [email protected]
💬 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
