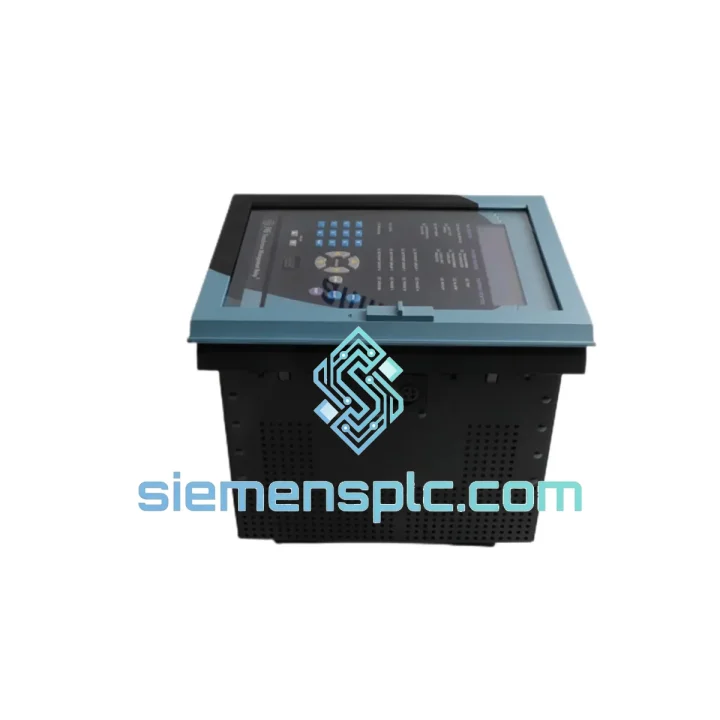

GE Multilin 745-W2-P5-G5-HI-A-R-E Protection Relay – Multilin 745 Series

GE Multilin 745-W2-P5-G5-HI-A-R-E: Dual-Breaker Transformer Management Relay for High-Integrity Substation Protection

The 745-W2-P5-G5-HI-A-R-E occupies a well-defined position in the transformer protection hierarchy: it is the primary differential relay, overcurrent backup, and thermal management unit for medium- and high-voltage power transformers operating in utility substations, industrial switchgear rooms, and generation step-up bays. Unlike general-purpose protection platforms, the Multilin 745 series was architected exclusively around transformer protection logic — its internal DSP pipeline, CT input conditioning, and output contact matrix are all optimized for the specific electrical behavior of power transformers under fault, inrush, and overload conditions.

The W2 suffix designates dual-breaker configuration, meaning the relay natively manages both the high-voltage and low-voltage breakers of a transformer bay without external logic controllers or auxiliary relays. The P5 hardware option fixes the CT input rating at 5 A nominal, compatible with standard protection-class CTs used in 11 kV through 220 kV installations. The G5 communication module implements IEC 61850 Edition 2, enabling GOOSE peer-to-peer tripping and MMS reporting to the station automation layer. The HI option provides a front-panel LCD and keypad for local metering, event log review, and setting access without a laptop or portable test set. The A auxiliary supply accepts a wide AC/DC input range, and the R option adds RS-485 Modbus RTU for legacy SCADA integration. The E option expands the digital I/O count for complex interlock and annunciation schemes.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 745’s analog front-end applies independent anti-aliasing filters on each CT and VT channel before A/D conversion at 16 samples per power-frequency cycle. This sampling density is sufficient to resolve 2nd harmonic (inrush restraint) and 5th harmonic (overexcitation restraint) components with the frequency resolution required by IEC 60255-151. The dual-slope differential characteristic is implemented in fixed-point DSP arithmetic: slope 1 (typically 15–30%) governs the low-current region where CT mismatch errors dominate, while slope 2 (typically 50–65%) governs the high-current region where CT saturation is the primary concern. The high-set unrestrained element bypasses harmonic restraint entirely for bolted internal faults, ensuring sub-cycle trip times regardless of CT saturation state.

EMC performance is achieved through a combination of hardware and layout measures. The CT input circuits use toroidal common-mode chokes and transient voltage suppressors rated to IEC 60255-26 Class III (2.5 kV impulse). The internal power supply employs a flyback topology with an isolated secondary, and the chassis is bonded to a dedicated PE terminal — not the neutral — to prevent ground-loop interference from propagating into the measurement circuits. The IEC 61850 Ethernet port is transformer-isolated to 1.5 kV, and the RS-485 port uses optocoupler isolation with a 2.5 kV barrier, consistent with IEC 60870-5 physical layer requirements.

The dual-breaker output logic implements a configurable lockout (86) function in firmware. When a differential trip is issued, the relay simultaneously asserts both the HV and LV trip contacts and latches the lockout flag. Reset requires a deliberate operator action via the front HMI or a remote SCADA command — the relay will not self-reset after a differential trip, which is the correct behavior for transformer protection per IEEE C37.91.

System Integration Benefits

• Deterministic GOOSE trip latency: IEC 61850 GOOSE messages are published within 4 ms of a trip decision, enabling bus protection schemes and inter-relay coordination without hardwired pilot cables — measurably reducing substation wiring cost and commissioning time.
• Harmonic restraint eliminates nuisance trips on energization: The 2nd harmonic restraint threshold (factory default 15%, adjustable 10–65%) prevents false differential trips during transformer energization, a historically common failure mode in older electromechanical relay schemes.
• Thermal model extends transformer service life: The 49 thermal element tracks winding hot-spot temperature using the IEC 60076-7 thermal model, enabling load optimization that reduces insulation aging rate — a quantifiable benefit for asset management programs.
• Integrated metering eliminates separate transducers: Revenue-grade metering (±0.5%) for current, voltage, power, energy, and power factor is available on the same unit, reducing panel space and eliminating transducer calibration intervals.
• 64 oscillography records support post-fault analysis: Each record captures 16 samples/cycle across all analog and digital channels, providing the waveform data required for fault reconstruction and relay coordination review without a separate disturbance recorder.
• Dual communication ports support migration strategies: The simultaneous availability of IEC 61850 (G5) and Modbus RTU (R) allows the relay to serve both a new IEC 61850 station bus and a legacy RTU-based SCADA system during substation modernization projects.
• Expanded I/O reduces external relay count: The E option’s additional 8 digital inputs and supplementary output contacts accommodate transformer auxiliary contacts (Buchholz, PRD, oil temperature, winding temperature) directly, eliminating interposing relay panels.
• Front HMI reduces commissioning dependency on laptops: All settings, metering values, event logs, and oscillography records are accessible from the front panel without EnerVista software, which is significant for field commissioning in environments where laptop connectivity is restricted.

Quality Assurance & Global Logistics

Every 745-W2-P5-G5-HI-A-R-E unit offered through siemensplc.com is sourced from verified GE Multilin authorized distribution channels or documented OEM surplus with full traceability. Prior to dispatch, each unit undergoes a structured pre-shipment inspection: firmware version confirmation, visual inspection of CT/VT terminal blocks and output contacts, front HMI functional check, and serial number verification. Units with evidence of field modification, terminal damage, or firmware tampering are rejected. Original GE Multilin documentation — including the instruction manual, test records, and where available, factory acceptance test certificates — is supplied with each order.

Logistics operations are managed from Xiamen, China, a major international freight hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard export packaging uses anti-static foam inserts within double-wall corrugated cartons, consistent with IEC 60068-2-27 shock requirements for relay equipment. Typical transit times: 3–5 business days to Europe and North America via express courier; 5–8 business days via standard international freight. Export documentation — commercial invoice, packing list, certificate of origin, and HS code 8536.49 classification — is prepared for each shipment. For projects requiring expedited delivery, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.
