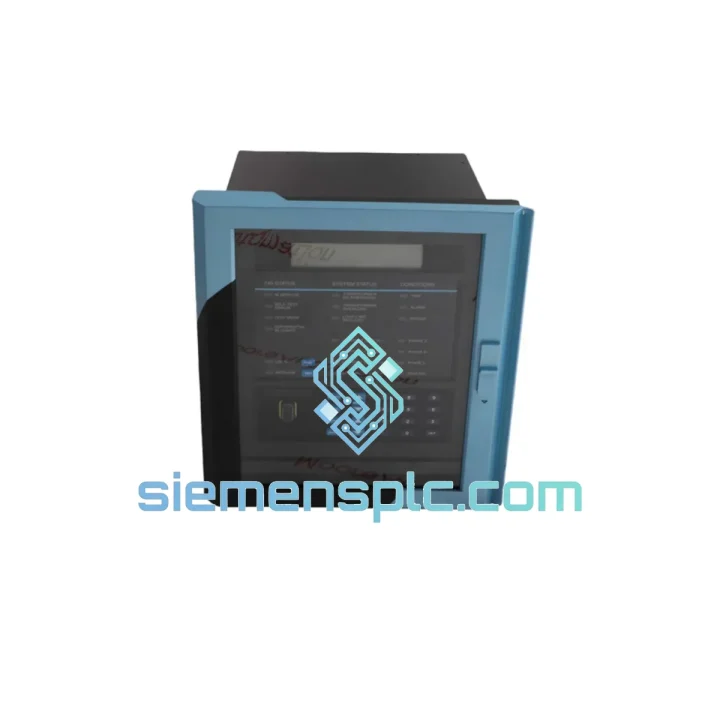

GE Multilin 745-W2-P5-G5-HI-R-E-H Transformer Management Relay

GE Multilin 745-W2-P5-G5-HI-R-E-H — Stop the Clock on Your Transformer Outage

Every minute a protected transformer sits offline, your operation bleeds money. Whether it’s a utility substation, a refinery main incomer, or a data center critical bus — a failed transformer management relay doesn’t just trip a breaker, it triggers a cascade: manual switching, load shedding, emergency crew callouts, and regulatory incident reports. The 745-W2-P5-G5-HI-R-E-H is the exact unit that stops that cascade. We stock it. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 745-W2-P5-G5-HI-R-E-H in the field is not plug-and-play. Here’s what ten years of relay replacements teaches you:

1. Settings Backup Before You Pull the Old Unit
If the existing relay is still partially powered, connect a laptop running GE EnerVista 745 Setup Software and pull a full settings file (.745 format) before disconnecting anything. A dead relay that won’t communicate means you’re rebuilding from the protection coordination study — budget an extra 4–8 hours minimum.

2. CT Polarity and Wiring Verification
The W2 configuration uses two sets of CT inputs (winding 1 and winding 2). Reversed CT polarity on either winding will cause the differential element (87T) to see a false through-fault current and either trip immediately on energization or desensitize the differential zone. Before energizing, perform a secondary injection test on both CT circuits and verify the differential current reads near zero under load.

3. Harmonic Restraint Commissioning Check
The 745 uses 2nd harmonic blocking to prevent false trips during transformer energization (inrush). If the harmonic restraint threshold is set too high (above 20%), the relay may fail to block during inrush and trip the transformer every time it’s energized. Default factory setting is typically 17% — verify this matches your protection study before closing the breaker.

4. IEC 61850 GOOSE Re-Binding (G5 Option)
After replacing the relay, the GOOSE publisher/subscriber bindings will not automatically transfer. You must re-import the ICD/CID file into your substation configuration tool (SCT) and re-bind all GOOSE inputs and outputs. Failure to do this means protection coordination signals (e.g., breaker trip commands, lockout relay inputs) will be silently lost — the relay will appear healthy on the HMI but will not respond to external trip commands.

5. Firmware Version Matching
The 745 series has had multiple firmware revisions. If your protection settings file was created on firmware v7.4x and you load it onto a unit running v7.2x, certain setting parameters (particularly IEC 61850 dataset configurations and thermal model coefficients) may not map correctly. Always confirm the firmware version of the replacement unit before loading settings. Firmware upgrades can be performed via the front RS-232 port using EnerVista.

Common Fault Codes to Know:

• DIFF TRIP (87T): Differential element operated. First check CT wiring polarity and ratio matching before assuming an internal transformer fault.
• THERMAL ALARM / TRIP (49): Thermal model has accumulated heat beyond alarm/trip threshold. Check cooling system before resetting — do not simply reset and re-energize without investigating the thermal cause.
• COMM FAIL: Loss of IEC 61850 or DNP3 communication. Check Ethernet link integrity, IP address conflicts, and VLAN configuration on the substation switch.
• CT FAIL: Open CT circuit detected. Immediately check CT secondary wiring continuity — an open CT in a live circuit is a personnel safety hazard.
• SETTINGS MISMATCH: Appears after firmware update or settings file load. Perform a full settings review and re-save to clear.

Reliability in Harsh Conditions

The GE Multilin 745 was not designed for a climate-controlled server room. It was built for the environments where protection relays actually live: outdoor switchgear enclosures in tropical humidity, desert substations where ambient temperatures exceed 55°C, offshore platform control rooms with constant salt-air corrosion, and mining substations where vibration from blasting and heavy equipment is a daily reality.

The 745-W2-P5-G5-HI-R-E-H meets IEC 60068 environmental testing standards, including vibration resistance per IEC 60255-21-1 Class 2, seismic qualification per IEEE 693, and operating temperature range of -20°C to +60°C. The conformal-coated PCBs resist moisture ingress and condensation cycling. The front-panel polycarbonate overlay is rated for UV exposure and chemical splash resistance.

In practice, this means a 745 installed in a coastal refinery substation in 2008 is still running protection today — not because it was never stressed, but because it was built to absorb that stress without degrading its protection accuracy. When you’re replacing one, you’re not downgrading — you’re restoring a proven level of protection that your transformer depends on.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-efficient export cities in Asia, with direct DHL and FedEx international gateway access. Here’s how your order moves:

Day 0 — Order Confirmation: PO received and confirmed before 14:00 CST. Unit pulled from bonded warehouse stock, inspected, and staged for packaging.

Day 0 — Packaging: The 745 relay is packed in anti-static foam-lined double-wall carton with corner protection. Fragile and ESD-sensitive labels applied. Commercial invoice, packing list, and certificate of origin prepared simultaneously.

Day 1 — Export Clearance & Handover: Customs declaration filed. DHL Express or FedEx International Priority pickup confirmed. Tracking number issued to buyer within 2 hours of carrier handover.

Day 2–4 — In Transit: DHL Express typically delivers to Europe, Middle East, and Southeast Asia within 2–3 business days from Xiamen. North America and Australia: 3–4 business days. Remote destinations: 4–5 business days.

Incoterms Available: EXW, FOB Xiamen, CIF, DAP, DDP — we accommodate your procurement team’s preferred terms. Import duty and VAT pre-payment (DDP) available for EU and UK destinations to eliminate customs clearance delays on your end.

Every shipment includes full export documentation: commercial invoice, packing list, certificate of origin (CO), and where required, an export license declaration. Insurance coverage available on request.
