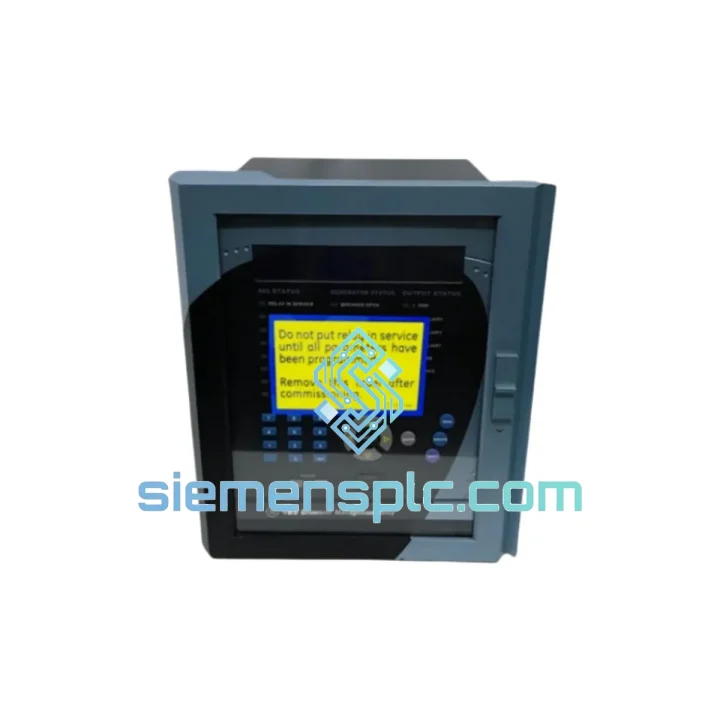

GE Multilin 750-P5-G5-S5-HI-A20-R-E Feeder Protection Relay – 750 Series

GE Multilin 750-P5-G5-S5-HI-A20-R-E: Integrated Feeder Management Relay for Medium-Voltage Distribution Networks

In medium-voltage distribution systems operating between 4.16 kV and 38 kV, feeder protection is the primary barrier between a transient fault and a sustained outage. The GE Multilin 750-P5-G5-S5-HI-A20-R-E is a fully configured variant of the GE Multilin 750 Feeder Management Relay — a platform that consolidates overcurrent protection, directional earth-fault detection, automatic reclosing, synchronism-check, metering, and SCADA communications into a single 4U drawout chassis. This order code encodes a specific hardware build: P5 (five-amp CT inputs), G5 (ground CT at 5 A), S5 (sensitive ground at 5 A), HI (high-interrupting output relays), A20 (120/240 Vac auxiliary supply), R (RS-485 communications port), E (enhanced I/O configuration). Each suffix directly determines the relay’s electrical interface and field-wiring compatibility — making exact order-code matching mandatory when specifying a replacement or spare.

The 750 Series occupies a well-established position in GE Multilin’s protection portfolio, deployed across utility distribution substations, industrial plant MV switchgear, mining feeder circuits, and water-treatment pump stations. Its architecture is built around a dedicated DSP-based protection processor that executes ANSI protection functions at a 1 ms task rate, independent of the communications and metering subsystems. This hardware partitioning ensures that a SCADA polling burst or a Modbus timeout cannot introduce latency into the protection trip path — a design discipline that distinguishes purpose-built protection relays from general-purpose IEDs.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

DSP-Based Protection Processor Architecture. The 750’s protection engine runs on a dedicated digital signal processor clocked independently from the relay’s communications CPU. Analog current and voltage inputs pass through anti-aliasing filters before being sampled at 64 samples per power-frequency cycle. The DSP computes fundamental-frequency phasors using a full-cycle Fourier algorithm, which provides inherent rejection of DC offset and harmonic components generated during fault inception — a critical property when coordinating with downstream fuses or reclosers that may produce asymmetric fault currents.

Optical Isolation on All Digital Inputs. Each of the eight digital inputs in the E-suffix configuration is optically isolated with a minimum isolation voltage of 2,500 Vac. The opto-isolator input threshold is field-selectable between 24 Vdc and 250 Vac, allowing the relay to interface directly with both low-voltage control circuits and medium-voltage auxiliary contacts without external interposing relays. This eliminates a common failure point in older panel designs where interposing relay coils degraded over time and introduced spurious trip signals.

High-Interrupting Output Relay Contacts (HI Suffix). The HI output relay specification provides contacts rated at 30 A make and 10 A continuous at 250 Vac. This rating is sufficient to directly drive most 120/240 Vac breaker trip coils without an interposing relay, reducing the number of series elements in the trip circuit and improving trip-circuit reliability. The contacts are silver-alloy construction with arc suppression, rated for a minimum of 100,000 mechanical operations.

Sensitive Ground Detection (S5 Suffix). The S5 sensitive ground input is designed for high-impedance grounded or ungrounded systems where ground-fault current may be as low as a few amperes. The sensitive ground element (50GS/51GS) operates independently of the standard ground element (50N/51N), allowing the engineer to set a low-pickup threshold on the sensitive channel while maintaining a higher, coordinated pickup on the standard ground channel. This dual-channel architecture supports both solidly grounded and resistance-grounded system configurations without hardware modification.

EMC Design and Surge Withstand. The relay’s internal PCBs use a multi-layer stackup with dedicated ground planes to minimize conducted and radiated emissions. All analog input circuits include transient voltage suppressors (TVS diodes) and series impedance networks to absorb the 5 kV, 1.2/50 µs impulse defined in IEC 60255-5. The RS-485 communications port includes common-mode chokes and gas-discharge tubes to protect against ground potential rise events in substations — a condition that can destroy unprotected serial interfaces during nearby lightning strikes or bus faults.

System Integration Benefits

• Deterministic 1 ms Protection Task Rate: The protection processor executes all ANSI function calculations on a fixed 1 ms interrupt cycle, independent of communications load. Trip decision latency from fault inception to output relay energization is typically under 16 ms for instantaneous elements (50/50N), meeting IEEE C37.90 operating time requirements without relay-to-relay coordination margin erosion.
• Modbus RTU Integration with Existing SCADA: The R-suffix RS-485 port supports Modbus RTU at configurable baud rates up to 115,200 bps. All metering values, protection element states, event log entries, and relay settings are accessible via standard Modbus function codes (03, 04, 06, 16), enabling integration with any SCADA or DCS platform without custom drivers or middleware.
• Adaptive Reclosing Logic (ANSI 79): The 79 element supports up to four reclose shots with independently configurable dead times and reset times. Shot-selective blocking allows the relay to inhibit reclosing based on the type of fault detected (e.g., block reclose on three-phase faults while permitting reclose on single-phase faults), reducing mechanical stress on the breaker during high-energy fault events.
• Synchronism-Check Before Reclose (ANSI 25): The 25 element monitors voltage magnitude, phase angle, and frequency difference across the breaker before permitting a reclose. Configurable slip frequency and angle windows prevent out-of-phase reclosing that would impose destructive torque transients on connected motors and transformers.
• Integrated Revenue-Grade Metering: Three-phase current, voltage, active power (W), reactive power (VAR), apparent power (VA), power factor, frequency, and accumulated energy (kWh, kVARh) are computed continuously at ±0.5% accuracy. This eliminates the need for separate transducers or revenue meters on feeder circuits where energy allocation is required for internal cost accounting or utility billing.
• Oscillography for Post-Fault Analysis: Each protection operation triggers a 32-cycle oscillographic record (16 pre-fault, 16 post-fault) sampled at 64 samples per cycle. The record captures all analog channels and digital input/output states simultaneously, providing the data density required to reconstruct fault current waveforms, identify CT saturation, and verify protection coordination margins during post-event review.
• Negative-Sequence Overcurrent (ANSI 46): The 46 element detects unbalanced loading and phase-loss conditions that would not be detected by phase overcurrent elements alone. In feeder circuits supplying three-phase motors, negative-sequence current above the pickup threshold indicates a phase-open condition that can cause motor overheating within seconds — the 46 element provides the early trip signal that prevents winding damage.
• Breaker Failure Detection (ANSI 50BF): The 50BF element monitors breaker current after a trip command is issued. If current persists beyond the configurable breaker failure time (typically 100–200 ms), the relay issues a backup trip signal to the upstream breaker, preventing fault energy from continuing to flow through a failed breaker. This function is essential for selective fault isolation in ring-bus and breaker-and-a-half substation configurations.

Quality Assurance & Global Logistics

Every GE Multilin 750-P5-G5-S5-HI-A20-R-E unit dispatched from our Xiamen, China facility passes through a structured pre-shipment verification protocol. Units are powered on and subjected to a full self-diagnostic cycle; all protection elements are confirmed active with no latched alarms. Serial numbers are recorded and cross-referenced against procurement documentation. Output relay contacts are tested for continuity and isolation. The LCD display, LED indicators, and front-panel keypad are verified for full functionality.

Packaging follows IEC 60068-2 transport conditioning guidelines: the relay is placed in an anti-static bag, surrounded by 50 mm closed-cell polyethylene foam, and sealed in a double-wall corrugated carton rated for 200 kg/m² stacking load. For international shipments, a moisture-barrier desiccant pack is included and the carton is heat-sealed in a polyethylene liner. Each shipment includes a commercial invoice, packing list, and certificate of origin for customs clearance.

Logistics partners include DHL Express, FedEx International Priority, and consolidated air-freight forwarders for volume orders. Standard transit times from Xiamen to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days, Middle East 4–5 business days. All shipments are fully insured and tracked from dispatch to delivery confirmation. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.
