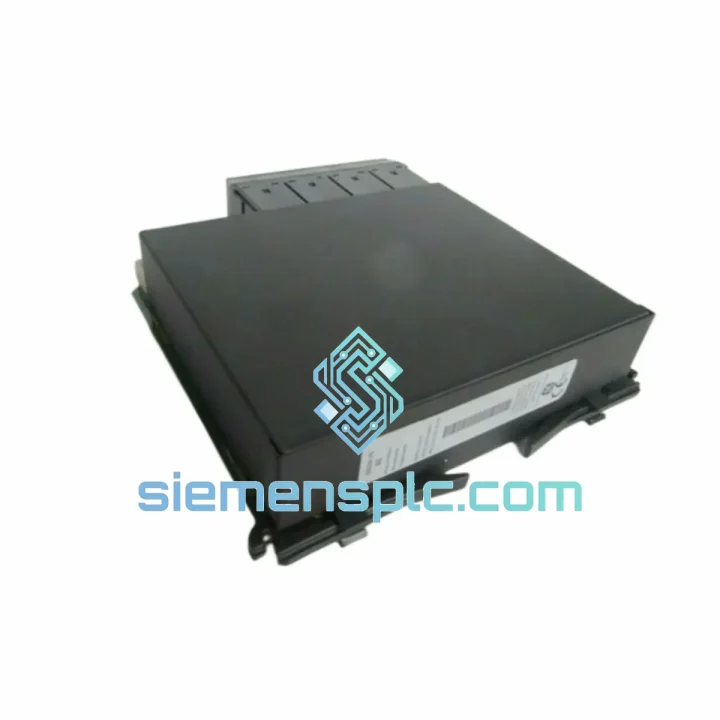

GE UR 9GH CPU Module – UR Series

GE UR 9GH: Central Processing Unit for UR Series Protection & Control Relays

The GE Multilin UR 9GH is the high-performance CPU module at the core of the Universal Relay (UR) platform — a chassis-based protection and control architecture deployed across transmission substations, generation facilities, and large industrial power systems globally. The 9GH designation identifies the top-tier CPU variant within the UR module hierarchy, engineered to handle the simultaneous execution of multiple protection elements, real-time inter-module communication across the UR backplane, and deterministic event logging without computational bottlenecks.

In a UR chassis, the CPU module is not a passive coordinator. It executes all protection logic — distance, differential, directional overcurrent, frequency, voltage, and synchronism-check elements — within a fixed scan cycle that must complete within sub-cycle time windows relative to the 50/60 Hz power frequency. The UR 9GH achieves this through a dedicated real-time processor architecture that separates protection task execution from communication stack processing, preventing network traffic bursts from introducing latency into the protection loop. This architectural separation is a fundamental design requirement for any relay CPU operating in IEC 61850 environments where GOOSE message bursts can generate transient processor loads.

The module interfaces directly with the UR chassis backplane, which carries both power distribution rails and a high-speed serial data bus connecting all installed I/O, DSP, and communication modules. The CPU arbitrates backplane bus access, polls analog and digital input modules at the configured scan rate, and writes output commands to digital output modules within the same deterministic cycle. This tight integration eliminates the inter-device communication latency that would exist in distributed relay architectures, making the UR platform — and the 9GH CPU specifically — well-suited for applications requiring coordinated multi-function protection with precise timing.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The UR 9GH CPU module’s hardware architecture reflects the design constraints imposed by protection relay applications, where determinism and fault tolerance take precedence over raw throughput metrics.

Processor Architecture & Task Partitioning: The 9GH employs a dual-processor arrangement in which a real-time processor handles all protection element calculations and I/O scanning, while a secondary processor manages communication stack operations, HMI interactions, and EnerVista configuration sessions. This partitioning ensures that a high-volume DNP3 poll or an IEC 61850 MMS file transfer cannot preempt the protection scan cycle. The real-time processor operates under a fixed-priority preemptive scheduler with the protection task assigned the highest priority class, guaranteeing that fault detection latency remains bounded regardless of communication load.

Backplane Bus Arbitration: The UR chassis backplane uses a token-passing arbitration scheme managed by the CPU module. Each I/O and DSP module holds the bus token for a fixed time slice, during which it transfers its sampled data to the CPU’s shared memory buffer. The 9GH CPU’s arbitration logic enforces strict timing on token rotation, preventing any single module from monopolizing the bus and ensuring that all analog samples arrive at the CPU within the same protection scan window. This is critical for differential protection functions, where current samples from multiple CT inputs must be time-coherent to avoid false operate conditions.

EMC Design & Surge Withstand: The PCB layout of the UR 9GH follows IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) design rules. Signal traces carrying low-level logic signals are routed away from power supply planes, and all external-facing interface lines pass through transient voltage suppression (TVS) diode arrays before reaching the processor I/O pins. The module meets IEEE C37.90.1 surge withstand capability (SWC) requirements — 2.5 kV oscillatory and 5 kV fast transient — which is the baseline immunity standard for substation relay equipment exposed to switching transients on CT and VT secondary circuits.

Non-Volatile Event Storage: Fault event records and oscillography waveforms are written to onboard flash memory with a write-through architecture that commits data to non-volatile storage before acknowledging the write operation. This prevents event record corruption in the event of a sudden power loss immediately following a fault — a scenario that occurs precisely when event data is most operationally critical. The oscillography buffer captures pre-fault and post-fault waveforms at the configured sample rate, providing the raw data needed for fault location calculations and protection coordination studies.

IRIG-B Time Synchronization Integration: The 9GH CPU accepts IRIG-B time-code input (via the chassis IRIG-B module) and applies GPS-disciplined timestamps to all event records with microsecond resolution. This time-stamping accuracy is a prerequisite for sequence-of-events (SOE) analysis across multiple relays in a substation, where the relative timing of protection operations must be reconstructed to within ±1 ms to distinguish primary from backup relay operations.

System Integration Benefits

• Deterministic Protection Scan Cycle: Fixed-priority real-time scheduler guarantees that protection element execution completes within the configured scan interval regardless of communication or HMI load, maintaining sub-cycle fault detection response times across all installed protection functions.
• IEC 61850 GOOSE Peer-to-Peer Interlocking: Native GOOSE publisher/subscriber support enables direct relay-to-relay interlocking and blocking signals without requiring RTU or SCADA intermediaries, reducing inter-relay signaling latency to the Ethernet propagation delay plus relay processing time.
• Multi-Protocol Communication Concurrency: The 9GH supports simultaneous operation of IEC 61850, DNP3, and Modbus sessions on separate logical channels, allowing integration into mixed-protocol SCADA environments without protocol conversion gateways.
• Oscillography & SOE Transparency: Onboard waveform capture and microsecond-resolution event timestamping provide the diagnostic data required for post-fault analysis, protection coordination review, and regulatory reporting without dependence on external recording equipment.
• EnerVista Software Integration: Full configuration, settings management, firmware upgrade, and real-time monitoring are performed through GE’s EnerVista UR Setup software, providing a single engineering interface for the entire UR platform across a substation.
• Hot-Swap Module Replacement: The UR chassis architecture supports CPU module replacement with minimal disruption to adjacent modules, reducing maintenance window duration during corrective maintenance activities.
• Scalable I/O Expansion: The CPU arbitrates access for all installed I/O and DSP modules across the chassis backplane, supporting expansion of analog and digital I/O capacity without changes to the CPU configuration or protection logic structure.
• Redundant Communication Path Support: The UR platform supports dual Ethernet communication modules operating in redundant configurations (PRP or HSR, depending on firmware version), with the 9GH CPU managing path selection and failover logic transparently to the SCADA system.
• Cybersecurity Role-Based Access: EnerVista UR Setup enforces role-based access control for settings changes and firmware updates, supporting NERC CIP and IEC 62351 cybersecurity compliance requirements for utility protection systems.
• Cross-Platform Spare Standardization: A single UR 9GH CPU module is compatible across multiple UR relay models (T35, T60, L90, D60, C60, F60, B30, B90, and others), enabling organizations to maintain a standardized spare inventory rather than model-specific CPU spares for each relay type.

Quality Assurance & Global Logistics

Every GE UR 9GH unit supplied by siemensplc.com is sourced through verified industrial supply channels and subjected to a structured pre-shipment verification process. Visual inspection covers board-level examination for physical damage, solder joint integrity, and component condition. Functional verification includes power-on initialization testing and communication handshake confirmation where test infrastructure permits. Each unit is documented with source traceability records available upon request.

Units are packaged in anti-static ESD shielding bags with moisture barrier protection, placed in rigid foam-lined cartons rated for international air freight handling. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with Chinese customs export regulations and the import requirements of the destination country. Shipments originate from Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Typical transit times to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East range from 3 to 7 business days from the date of shipment confirmation.

All units are supplied with a 12-month warranty from the date of shipment. Warranty coverage addresses manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed through direct communication with our technical team, with replacement or repair options evaluated on a case-by-case basis based on unit condition and failure mode documentation.
