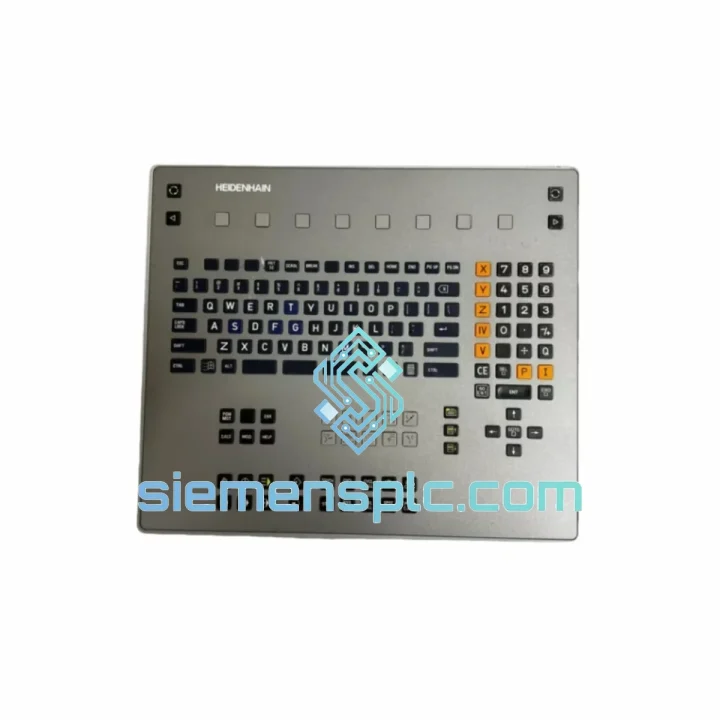

HEIDENHAIN iTNC530 532524-01 CNC Keyboard

HEIDENHAIN iTNC530 532524-01 Operator Keyboard Panel — Stop the Clock on Your Downtime

Every hour a machining center sits idle costs real money. On a high-mix production floor running Deckel Maho, Hermle, or Mikron platforms, a failed iTNC 530 keyboard is not a maintenance ticket — it is a production crisis. The HEIDENHAIN iTNC530 532524-01 operator keyboard panel is one of the highest-turnover wear components on the iTNC 530 platform, and siemensplc.com maintains verified stock specifically to cut your recovery time from days to hours.

This is not a generic listing. The 532524-01 is the exact OEM part number issued by Dr. Johannes Heidenhain GmbH for the iTNC 530 contouring control keyboard. No firmware flashing, no parameter mapping, no compatibility guesswork — pull the failed unit, seat the replacement, reconnect the keyboard bus cable, and you are back in cycle.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most Common Failure Modes on the iTNC 530 Keyboard (532524-01)

After years of multi-shift operation, the 532524-01 fails in predictable ways. Knowing the pattern saves diagnostic time on the floor:

• Membrane key bounce / ghost inputs — The most frequent complaint. Coolant contamination wicks under the key membrane over time, causing intermittent or repeated keystrokes. The iTNC 530 will log erratic MDI entries or refuse to accept axis commands. Cleaning is a temporary fix; membrane replacement or full keyboard swap is the correct resolution.
• Dead key zones — Typically affects the numeric row or the axis key cluster first, as these see the highest actuation count. If the control throws “Key not recognized” or the cursor fails to respond in specific zones, the scan matrix has degraded. No field repair is practical — swap the unit.
• Keyboard bus communication fault — The iTNC 530 will display error “Keyboard not ready” or “PLC axis key error” at power-on. Before condemning the keyboard, check the ribbon cable seating at both the keyboard PCB and the MCU connector. If reseating does not clear the fault within two power cycles, the keyboard PCB has failed.
• Backlight failure (where applicable) — On later 532524-01 revisions with illuminated function keys, LED driver failure causes dark key legends. Operationally non-critical but a compliance issue in low-light environments.

Replacement Procedure — Field Checklist

1. Power down the control — Execute a controlled shutdown via the iTNC 530 operating system. Do not hard-cut power mid-cycle; this can corrupt the NC program partition.
2. Isolate the cabinet — Lock out / tag out the main disconnect. The keyboard bus runs at low voltage, but the control cabinet contains 400 V AC servo bus rails.
3. Document the cable routing — Photograph the keyboard cable path before disconnection. The ribbon is directional; incorrect reinsertion causes immediate bus fault at power-on.
4. Release the keyboard mounting — The 532524-01 is typically retained by four M4 screws through the operator panel bezel. On Hermle and Mikron OEM installations, a snap-fit bezel surround must be released first.
5. Seat the replacement unit — No DIP switches, no address configuration, no firmware upload required. The iTNC 530 auto-detects the keyboard on the bus at power-on. This is a true plug-and-play swap.
6. Power-on verification — Boot the control to the iTNC 530 operating mode. Navigate to MOD → Machine parameters → Keyboard test and actuate every key to confirm full scan matrix integrity before returning the machine to production.
7. Log the swap — Record the replaced unit’s serial number, date, and machine ID in your CMMS. iTNC 530 keyboard MTBF in heavy-use environments is typically 3–5 years; schedule the next inspection accordingly.

Configuration Notes: Unlike some PLC I/O modules, the 532524-01 carries no user-configurable parameters. There are no DIP switches, no node address settings, and no firmware version dependency between the keyboard and the NC software revision running on the MCU. Any 532524-01 unit is compatible with iTNC 530 NC software from 340 422-xx through 340 490-xx and all subsequent releases.

Reliability in Harsh Conditions

The iTNC 530 keyboard is engineered for the machine tool environment — not an office. The 532524-01 is validated against the conditions that destroy lesser components:

• Coolant and mist resistance — IP54-rated front face withstands continuous coolant splash and oil mist from high-pressure through-spindle coolant systems. The membrane seal prevents capillary ingress that degrades key response over time.
• Vibration tolerance — Qualified to IEC 60068-2-6 sinusoidal vibration profiles. On floor-mounted machining centers with heavy interrupted cuts, the keyboard PCB mounting is designed to absorb resonant frequencies without solder joint fatigue.
• Thermal cycling — Rated 0 °C to +55 °C operating range. In foundry-adjacent or forge-shop environments where ambient temperatures spike during summer, the keyboard maintains full scan matrix integrity without thermal derating.
• EMC immunity — Designed to operate within the iTNC 530’s CE-certified EMC envelope. The keyboard bus is shielded against conducted and radiated interference from servo drives, spindle inverters, and high-frequency spindles sharing the same cabinet.
• Mechanical key life — HEIDENHAIN specifies the key membrane for a minimum of 1 million actuations per key. On a three-shift production cell running conversational programming, this translates to approximately 4–6 years of service life under normal conditions.

Global Express Logistics

siemensplc.com ships from Xiamen, China — a designated international logistics hub with direct air freight connections to major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas.

Standard Express Dispatch Process:

• Order confirmation by 14:00 CST → same-day pick, pack, and handover to DHL Express or FedEx International Priority
• Export documentation — commercial invoice, packing list, and certificate of origin prepared in compliance with Xiamen Customs regulations. HS code classification provided for your import clearance team.
• Typical transit times:
  • Southeast Asia (Singapore, Thailand, Vietnam): 2–3 business days
  • Northeast Asia (Japan, South Korea, Taiwan): 2–3 business days
  • Europe (Germany, Netherlands, UK, France): 3–5 business days
  • North America (USA, Canada, Mexico): 4–6 business days
  • Middle East (UAE, Saudi Arabia): 3–4 business days
  • Australia / New Zealand: 3–5 business days
• Shipment tracking — AWB number provided within 2 hours of dispatch. Real-time tracking link shared via email and WhatsApp.
• Emergency freight — For plant shutdown situations, we can arrange next-flight-out courier on request. Contact us directly for priority handling outside standard cut-off times.
• Multi-currency payment — T/T bank transfer, credit card, PayPal, and USD/EUR/CNY invoicing available to match your procurement system requirements.
