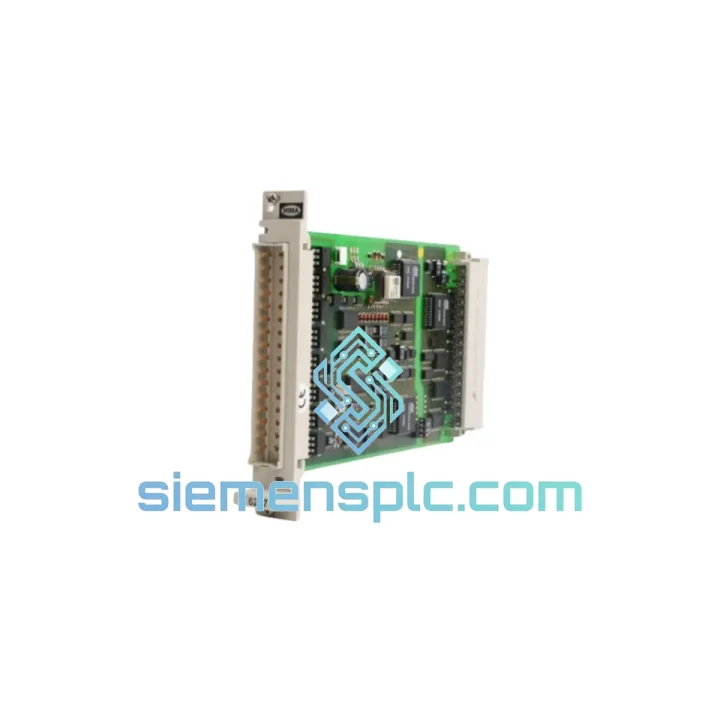

HIMA F3331 Safety PLC DO Module

HIMA F3331 DO Module — F3300 Series SIL3 Digital Output: Every Hour of Downtime Costs You More Than This Module

Your safety PLC tripped. The F3331 output module is flagged. Production is at a standstill and your maintenance window is already burning. You don’t need a sales pitch — you need the part, verified, boxed, and moving toward your facility today. That’s exactly what we do.

We stock the HIMA F3331 Digital Output Module in Xiamen, China, with same-day dispatch capability via DHL Express and FedEx International Priority. Whether you’re running an ESD loop in a refinery, a BMS in a chemical plant, or a turbine trip circuit in a power station, this module goes back in the rack and your system goes back online. No waiting on factory lead times. No compromise on authenticity.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault indicators that point to F3331 failure:

• ERR LED solid red on the module face: Internal diagnostic self-test has detected a hardware fault. The CPU will have already forced the output channel to safe state. Do not attempt to reset and continue — replace the module.
• ELOP II / SILworX fault log showing “DO channel short circuit” or “output driver fault”: The solid-state output driver has failed. This is not recoverable in the field. Log the fault code, note the channel number, and proceed with swap.
• Intermittent output dropout causing spurious ESD trips: Often caused by backplane connector wear or internal solder fatigue from thermal cycling. Reseat the module first. If the fault recurs within 48 hours, replace immediately — do not run a safety-critical loop on a suspect module.
• “Discrepancy error” on 1oo2 output pair: One of the two redundant output channels has diverged. Identify which physical module is reporting the discrepancy via the diagnostic address in SILworX and replace that unit.

Replacement procedure — field-verified steps:

1. Inhibit the safety function via your MOC (Management of Change) procedure. Confirm bypass is active in the SIS logic before touching hardware.
2. Record the slot address. The F3331 uses automatic slot addressing via the F3300 backplane — no DIP switches or manual address configuration required. The CPU reads the physical slot position at power-up. Confirm the replacement module goes into the identical slot.
3. Power down the rack section if your system architecture requires it, or hot-swap if your F3300 configuration supports online replacement (verify in your project’s SILworX configuration — not all projects enable this).
4. Seat the replacement F3331 firmly. The backplane connector requires positive engagement — you should feel a definite click. A partially seated module will generate a “module not present” fault.
5. Power up and observe the module LED sequence: Green RUN LED should illuminate within 15–30 seconds as the CPU downloads the I/O configuration. If ERR remains lit, check firmware revision compatibility (see below).
6. Firmware compatibility check: The F3331 firmware must match the revision expected by your F3300 CPU project. Mismatched firmware will cause a “module type mismatch” fault in SILworX. Contact HIMA support or our technical team with your CPU part number to confirm compatibility before installation.
7. Functional test: Force each output channel through SILworX diagnostic mode and verify field device response before removing the bypass and returning the safety function to service.

Reliability in Harsh Conditions

The F3300 platform was not designed for a climate-controlled server room. It was designed for the realities of industrial process environments — and the F3331 reflects that engineering philosophy throughout.

The module’s solid-state output drivers eliminate the mechanical wear points that cause relay-based output modules to degrade over time. There are no moving contacts to arc, no coils to burn out, no springs to fatigue. In high-vibration environments — compressor stations, offshore platforms, rotating machinery enclosures — this matters. Mechanical relay outputs in comparable modules from other manufacturers have documented failure rates that increase sharply after 5–7 years in vibration-intensive installations. The F3331’s solid-state architecture sidesteps this failure mode entirely.

Thermal performance is validated across the full 0–60 °C operating range with derating curves documented in the HIMA hardware manual. In practice, F3300 series modules installed in properly ventilated cabinets routinely operate for 15–20 years without hardware failure. The conformal coating on the PCB provides protection against humidity and condensation — a critical factor in coastal installations, tropical climates, and any facility where cabinet door seals are not perfectly maintained.

EMC immunity is certified to IEC 61000-4 series standards, covering conducted and radiated immunity, ESD, electrical fast transient, and surge. In environments with large motor drives, welding equipment, or high-power switching gear nearby, this certification is not a checkbox — it’s the difference between a stable safety system and one that generates nuisance trips from electrical noise.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-efficient export hubs in Asia, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways.

Standard dispatch timeline:

• Order confirmed before 14:00 CST: Same-day dispatch. Tracking number issued by 18:00 CST.
• Order confirmed after 14:00 CST: Next business day dispatch.

Transit times (door-to-door, business days):

• Southeast Asia (Singapore, Malaysia, Thailand): 2–3 days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 4–5 days via DHL Express
• North America (USA, Canada): 4–6 days via FedEx International Priority
• Australia / New Zealand: 4–5 days via DHL Express

All shipments include full commercial invoice, packing list, and certificate of origin documentation. For customers requiring customs pre-clearance documentation, HS code classification support, or end-user certificates, contact us at the time of order — we handle this routinely and it does not delay dispatch.

Emergency freight options (next-flight-out, hand-carry courier) are available for critical shutdowns. Contact us directly on WhatsApp for real-time coordination.
