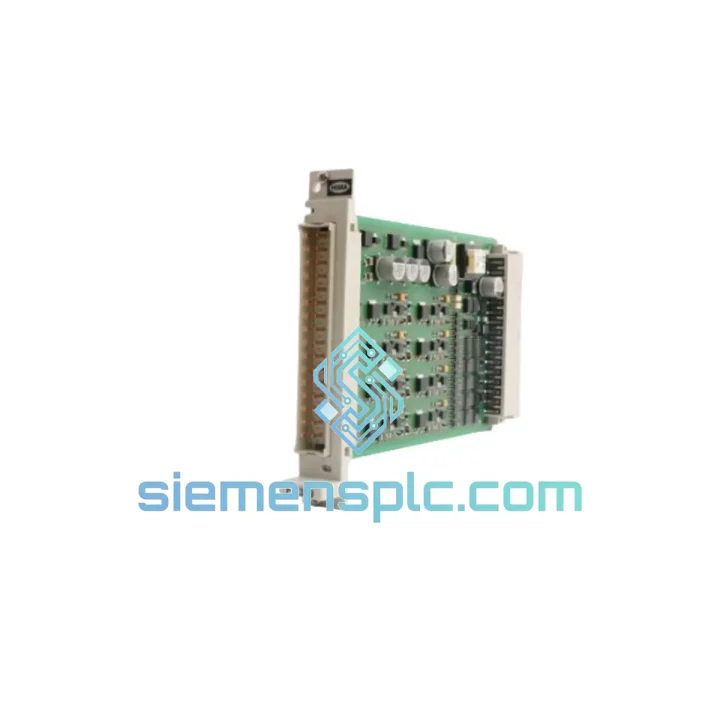

HIMA F3349 Digital I/O Module – F3300 Series

HIMA F3349 Digital Input/Output Module – Functional Role in Safety-Instrumented Control Loops

The HIMA F3349 is a high-channel-density digital I/O module engineered for deployment within HIMA’s F3300 safety system platform. Its primary function is to serve as the physical interface layer between field instrumentation — sensors, actuators, solenoid valves, and discrete switches — and the F3300 safety CPU’s logic execution engine. In a safety-instrumented system (SIS) architecture, the F3349 occupies the most exposure-critical position in the signal chain: it is the first and last point of contact with the process environment, and its electrical integrity directly determines the fidelity of the safety function.

Within a 1oo2D or 2oo3 voted safety loop, the F3349 handles both input acquisition and output actuation. Input channels sample field signals at defined scan intervals, apply hardware-level debounce filtering, and pass validated digital states to the CPU via the F3300 backplane bus. Output channels receive de-energize-to-trip (DE-T) commands from the safety logic and drive actuators through galvanically isolated solid-state switching elements. The module’s architecture ensures that a single-point hardware failure in any channel does not propagate to adjacent channels or compromise the voted output state.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Opto-Electronic Isolation Architecture: Each input channel on the F3349 passes its field signal through a dedicated opto-coupler stage before the signal reaches the module’s internal logic domain. This galvanic barrier sustains a minimum isolation voltage of 500 V DC between the field wiring and the backplane logic, preventing ground loops, common-mode transients, and high-energy surge events from corrupting the digital state presented to the CPU. The opto-coupler’s switching threshold is factory-calibrated to reject signals below 5 V DC (noise floor) while reliably detecting valid 24 V DC field signals, providing a deterministic hysteresis window that eliminates false trips caused by cable capacitance discharge or inductive kickback from solenoid coils.

Channel-Level Short-Circuit and Open-Wire Detection: The F3349 implements continuous loop monitoring on each input channel. A low-level diagnostic current (typically in the microampere range) is injected into the field loop during normal operation. If the loop impedance falls below the short-circuit threshold or rises above the open-wire threshold, the module flags a channel fault to the F3300 CPU within one diagnostic scan cycle — without interrupting the voted safety function. This mechanism satisfies the IEC 61508 requirement for automatic detection of dangerous hardware failures with a diagnostic test interval of ≤1 hour.

Output Solid-State Switching and Proof-Test Pulse: Output channels use solid-state switching elements (typically MOSFET or IGBT-based) rather than electromechanical relays. This eliminates contact wear as a failure mode and enables the F3300 CPU to execute periodic proof-test pulses — brief, sub-millisecond de-energization cycles — on output channels without actuating the connected field device. The proof-test pulse verifies the switching element’s ability to open the circuit on demand, maintaining the required proof-test interval for SIL 3 compliance without requiring a process shutdown.

EMC Design and Shielding: The module’s PCB layout follows a strict ground-plane partitioning strategy: the field-side ground plane (FE) is physically separated from the logic-side ground plane (LE) by the opto-coupler isolation barrier. Ferrite bead filters are placed on all field-side signal traces to attenuate high-frequency conducted interference in the 150 kHz–30 MHz range. The module housing provides additional shielding against radiated emissions, meeting EN 61000-4-3 (radiated immunity) at field strengths up to 10 V/m — a requirement for installation in proximity to variable-frequency drives and high-current bus bars common in process plant environments.

System Integration Benefits

• Deterministic Scan-Cycle Synchronization: The F3349 synchronizes its I/O acquisition and output update cycles to the F3300 CPU’s safety task execution period, eliminating jitter-induced timing errors in voted logic evaluation. This is critical in 2oo3 architectures where channel-to-channel timing skew must remain below the process safety time margin.
• Hot-Swap Module Replacement: The F3300 platform supports online module replacement without de-energizing the backplane. The F3349 can be extracted and reinserted while the system remains in run mode, with automatic re-initialization and channel state restoration upon re-insertion — reducing planned maintenance downtime to under 5 minutes per module.
• Integrated Diagnostic Transparency via SILworX: All channel-level diagnostics — opto-coupler degradation, loop resistance drift, output switching time deviation — are surfaced in real time through HIMA’s SILworX engineering environment. Maintenance engineers can view per-channel health metrics without interrupting the safety function, enabling condition-based maintenance scheduling rather than fixed-interval replacement.
• Redundant Power Feed Architecture: The module accepts power from the F3300 backplane’s redundant 24 V DC power rails. An internal power monitoring circuit detects rail voltage deviation beyond ±10% and flags a power fault to the CPU before the voltage drops below the module’s minimum operating threshold, providing advance warning rather than a hard failure.
• Scalable Channel Density for Large I/O Counts: Multiple F3349 modules can be populated across the F3300 rack without requiring additional gateway hardware or protocol converters. The backplane bus bandwidth is sufficient to service all modules within a single rack at the rated safety task cycle time, avoiding the latency penalties associated with remote I/O over fieldbus networks.
• Fail-Safe Output Default State: All output channels are configured to de-energize (open circuit) on loss of CPU communication, loss of backplane power, or detection of an internal module fault. This fail-safe default state is hardwired in the output driver circuit and cannot be overridden by software — ensuring the safety function is executed even in the event of a CPU halt or firmware exception.
• Compliance with Functional Safety Lifecycle Requirements: The F3349’s FMEDA (Failure Mode, Effects, and Diagnostic Analysis) documentation provides the PFDavg and PFH values required for SIL verification calculations under IEC 61508-2. These values are pre-validated by HIMA and accepted by TÜV-certified safety assessors, reducing the engineering effort required for third-party SIL verification audits.
• Backward Compatibility within F3300 Platform: The F3349 is electrically and mechanically compatible with earlier F3300 rack generations, allowing incremental hardware upgrades without full system replacement. Existing field wiring terminations and marshalling cabinets can be retained, limiting upgrade scope to the module slot level.

Quality Assurance & Global Logistics

Every HIMA F3349 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and undergoes a structured pre-shipment inspection protocol. Physical inspection covers label authenticity, housing integrity, connector pin condition, and firmware version markings cross-referenced against HIMA’s published revision history. Where test equipment is available, modules are bench-powered and subjected to basic I/O response verification before dispatch.

Shipments originate from our warehouse in Xiamen, Fujian Province, China — a major export hub with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard in-stock orders are dispatched within 1–3 business days of payment confirmation. Full export documentation is provided with every shipment: commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10 for programmable controller modules). Customs clearance support is available for destinations requiring additional import documentation.

All units are covered by a 12-month warranty from the date of shipment. Dead-on-arrival (DOA) claims are processed within 7 business days of receipt notification, with replacement dispatch or credit note issued upon photographic confirmation of the defect. Volume orders of 5 or more units qualify for consolidated freight options and negotiated pricing — contact us directly with your bill of materials for a project-specific quotation.
