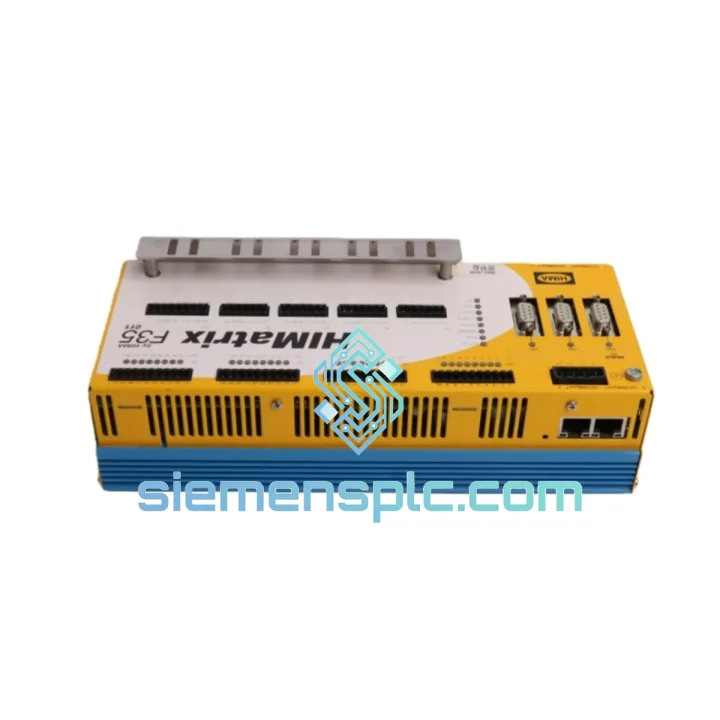

HIMA F35-011-30 Safety PLC Module – HIMatrix F35 Series

HIMA F35-011-30: SIL 2 Safety Controller at the Core of High-Integrity Shutdown Architectures

The HIMA F35-011-30 is a dedicated safety-related controller module within HIMA’s HIMatrix F35 platform, engineered for deployment in Safety Instrumented Systems (SIS) operating under IEC 61508 SIL 2 requirements. Unlike general-purpose PLCs adapted for safety duty, the F35-011-30 is architected from the ground up around a 1oo1D (one-out-of-one with diagnostics) hardware topology, with internal self-test routines executing at sub-millisecond intervals to maintain the required diagnostic coverage (DC) above 99%. This design philosophy eliminates the need for external watchdog circuits and reduces the probability of dangerous failure per hour (PFH) to values compliant with SIL 2 targets as defined in IEC 61511.

In a control loop context, the F35-011-30 functions as the logic solver — receiving discrete and analog process signals from field transmitters, executing the safety function algorithm stored in non-volatile flash memory, and driving final elements (valves, actuators, relays) via certified output channels. The module’s deterministic scan cycle, configurable between 10 ms and 100 ms, ensures that process deviations trigger a safe-state response within the process safety time (PST) defined during HAZOP. The onboard HIMA SafeEthernet interface provides peer-to-peer communication with other HIMatrix nodes without introducing non-deterministic latency, a critical requirement in distributed ESD architectures spanning multiple process units.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The F35-011-30’s internal architecture separates the application processor from the safety monitor processor at the silicon level. Both processors execute the same application code independently; their outputs are compared by a dedicated arbitration circuit before any output channel is energized or de-energized. This dual-channel comparison logic operates at the hardware gate level, not in firmware, which means software faults in the application layer cannot mask a hardware discrepancy — a fundamental requirement for IEC 61508 SIL 2 compliance.

EMC Design: The module’s PCB layout employs a four-layer stackup with dedicated ground planes isolating the digital logic domain from the I/O interface domain. Input channels incorporate optocoupler isolation with a minimum isolation voltage of 500 V AC, suppressing common-mode noise from field wiring — a frequent source of spurious trips in industrial environments with variable-frequency drives (VFDs) or high-current switching loads nearby. Transient voltage suppressors (TVS diodes) on each I/O terminal clamp inductive kickback to within the safe operating area of the input comparators.

Non-Volatile Memory Integrity: The safety application program is stored in flash memory with CRC-32 checksums verified at each power-on cycle and at configurable runtime intervals. Any checksum mismatch triggers an immediate safe-state transition and logs a diagnostic event with timestamp to the onboard event buffer (capacity: 10,000 entries), retrievable via SILworX without interrupting the running process.

Watchdog Architecture: An independent hardware watchdog timer, clocked from a separate oscillator circuit, monitors the application processor’s heartbeat token. If the token is not refreshed within the configured timeout window (default: 2× scan cycle), the watchdog asserts a hardware reset and drives all output channels to the de-energized (safe) state within 1 ms — independent of firmware state.

Output Channel Diagnostics: Each digital output channel incorporates a readback circuit that samples the actual terminal voltage after switching. The measured value is compared against the commanded state; a discrepancy exceeding 500 ms generates a channel fault alarm and, depending on the configured response, initiates a partial or full safe-state transition. This mechanism detects welded relay contacts, open-circuit wiring faults, and short-to-supply conditions without requiring external test equipment.

System Integration Benefits

• Deterministic Real-Time Response: Fixed scan cycle with jitter < 1 ms ensures that the safety function executes within the process safety time budget, even under maximum I/O load — no operating system scheduling uncertainty.
• Native SafeEthernet Peer Communication: Direct module-to-module safety communication without a central arbiter eliminates single-point-of-failure risk in distributed SIS architectures; each link is independently monitored for frame loss and latency deviation.
• Transparent Diagnostic Reporting: All internal fault states, channel diagnostics, and communication errors are mapped to standardized diagnostic addresses accessible via Modbus TCP, enabling integration with DCS historian and alarm management systems without custom middleware.
• IEC 61131-3 Programming Compliance: SILworX supports all five IEC 61131-3 languages, allowing safety engineers to implement and verify logic using familiar structured text or function block diagrams, reducing programming error probability and simplifying third-party code review.
• Partial Stroke Testing (PST) Support: Configurable output pulse sequences allow automated partial stroke testing of shutdown valves without process interruption, maintaining proof-test coverage between scheduled turnarounds and extending mean time to dangerous failure (MTTFD).
• Redundancy Architecture Flexibility: The F35-011-30 supports 1oo1, 1oo2, and 2oo3 voting configurations through software configuration in SILworX, allowing the same hardware to serve different SIL targets depending on the voting topology selected — reducing spare parts inventory complexity.
• Hot-Swap Capability: In redundant configurations, individual modules can be replaced under power without de-energizing the safety bus, reducing maintenance downtime and eliminating the need for a full system shutdown during module exchange.
• Audit-Ready Event Logging: The onboard event buffer records all state transitions, operator overrides, diagnostic alarms, and communication events with millisecond-resolution timestamps, providing a complete audit trail for functional safety assessments (FSA) and regulatory inspections.

Quality Assurance & Global Logistics

Every HIMA F35-011-30 unit supplied through siemensplc.com is sourced from verified distribution channels with full traceability documentation. Each shipment includes a Certificate of Conformance (COC), factory test report, and serial number record cross-referenced against HIMA’s production database. Anti-counterfeit verification is available on request for units requiring additional authentication.

Prior to dispatch, units undergo a functional power-on test confirming communication interface activity, output channel readback integrity, and diagnostic LED status. ESD-safe packaging with humidity indicator cards is used for all shipments. Export documentation — including commercial invoice, packing list, and HS code declaration (HS 8537.10) — is prepared in compliance with Chinese customs regulations for smooth international clearance.

Shipments originate from our warehouse in Xiamen, China. Standard international delivery via DHL Express or FedEx International Priority reaches most destinations in Europe, the Middle East, Southeast Asia, and the Americas within 3–5 business days. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST. Freight insurance and door-to-door tracking are included as standard on all orders.
