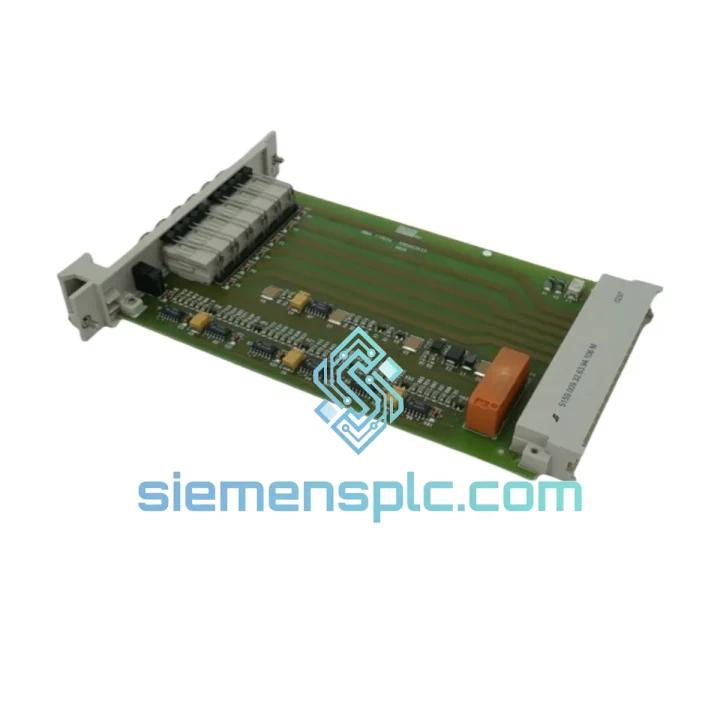

HIMA F7105A F7000 Series PLC Backplane Module

HIMA F7105A F7000 Backplane Down? Every Minute Costs You Money — We Ship Today

Your F7000 safety system is offline. The SIL 3 interlock is tripped. Production is bleeding cash at a rate your management is already asking about. You’ve traced the fault to the F7105A backplane plate module — the structural backbone that physically seats your CPU and I/O cards into the HIMax/HIMatrix rack. Without it, nothing runs. We stock it. We ship it today from Xiamen.

At siemensplc.com, we operate specifically for moments like this. No minimum order. No 6-week OEM lead time. No runaround. You call, we confirm stock, we dispatch within hours via DHL Express or FedEx International Priority. Our clients are plant engineers, MRO buyers, and shutdown coordinators across oil & gas, petrochemical, and power generation — people who measure downtime in tens of thousands per hour.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting and Replacement Tips

The F7105A is a passive backplane — it carries no firmware itself — but a failed or cracked plate is one of the most misdiagnosed faults in the F7000 system. Here is what field experience tells you:

Common Fault Signatures Pointing to F7105A Failure:

• Intermittent CPU communication loss — The F7000 CPU logs bus timeout errors (SILworX diagnostic: Module not responding on slot X). Before replacing the CPU, reseat and inspect the backplane connector pins. Bent or oxidized pins on the F7105A plate are a frequent culprit, especially in humid coastal environments.
• Random I/O module dropouts — If specific slots consistently lose communication while adjacent slots remain healthy, the backplane trace between those slots is suspect. Thermal cycling causes micro-fractures in the PCB traces of aged F7105A units.
• System fails to complete self-test on power-up — The F7000 performs a full rack scan during boot. A damaged backplane causes the CPU to halt at the hardware initialization phase. SILworX will report Rack configuration mismatch even if no modules have been changed.
• Unexplained SIL degradation alarms — The safety system redundancy monitoring detects asymmetric response times between redundant channels. A failing backplane introduces latency on one channel, triggering a SIL downgrade alarm before full failure.

Replacement Procedure — Key Configuration Points:

• No DIP switches on F7105A itself — The backplane plate is passive. Slot addressing is handled automatically by the F7000 CPU during rack initialization. No manual address configuration is required on the plate.
• Firmware matching — The F7105A plate does not carry firmware, but confirm your CPU firmware version (SILworX Device Firmware Info) is compatible with your I/O module generations before powering up the new rack. Mismatched firmware between CPU and I/O modules will cause a configuration fault even with a perfect backplane.
• Torque specification for module seating — When reseating CPU and I/O modules onto the new F7105A, use the HIMA-specified torque for locking screws per the F7000 hardware manual. Over-torquing damages the backplane connector housing.
• Power-down sequence — Always de-energize the rack in the correct sequence: I/O modules first, then CPU, then power supply. Hot-swapping a backplane plate without following this sequence risks residual charge damage to the new module connector interface.
• Post-replacement validation — After installation, perform a full SILworX online comparison between the loaded project and the physical rack. Confirm all module serial numbers are re-registered in the project database. Run a proof test cycle before returning the system to operational mode.

Reliability in Harsh Conditions

The F7105A was engineered for process industry environments where controlled conditions is a polite fiction. HIMA’s F7000 platform is deployed on offshore platforms in the North Sea, in desert gas processing facilities in the Middle East, and in chemical plants across Southeast Asia — none of which are kind to electronics.

The backplane plate PCB substrate is rated for continuous operation across the full F7000 temperature envelope. The connector system uses gold-plated contacts to resist oxidation in high-humidity environments — a critical detail for coastal and tropical installations where lesser backplanes develop contact resistance within 18 months. The mechanical frame is designed to absorb the vibration profiles typical of compressor halls and pump stations, where resonant frequencies between 10 Hz and 150 Hz are a constant stress on rack-mounted hardware.

Units we supply are stored in climate-controlled warehousing with anti-static protection from the moment they leave the OEM supply chain. We do not stock units that have been previously installed and returned without full re-certification. What you receive is what HIMA shipped — sealed, protected, and ready to go into a live safety system.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province, China — one of the most logistics-connected export cities in Asia, with direct DHL and FedEx gateway access. Here is how your order moves:

• Order confirmed before 15:00 CST — Same-day packaging and export documentation preparation.
• DHL Express Worldwide — Typical transit 1 to 3 business days to Singapore, UAE, Germany, UK, and USA. Door-to-door with real-time tracking.
• FedEx International Priority — Available for destinations where FedEx has stronger coverage. Same-day handoff to FedEx Xiamen gateway.
• Export documentation — Commercial invoice, packing list, and certificate of conformance prepared as standard. HS code 8537.10 declared for customs clearance. We have experience clearing industrial automation components through customs in EU, GCC, ASEAN, and North American jurisdictions.
• Emergency freight — For genuine plant-down situations, contact us directly on WhatsApp. We can arrange next-flight-out courier options for critical shutdowns where every hour matters.

We have shipped F7000 Series components to refineries in Saudi Arabia, power plants in Vietnam, chemical facilities in Germany, and offshore platforms in Malaysia — all on emergency timelines. We understand what urgent actually means in your world.
