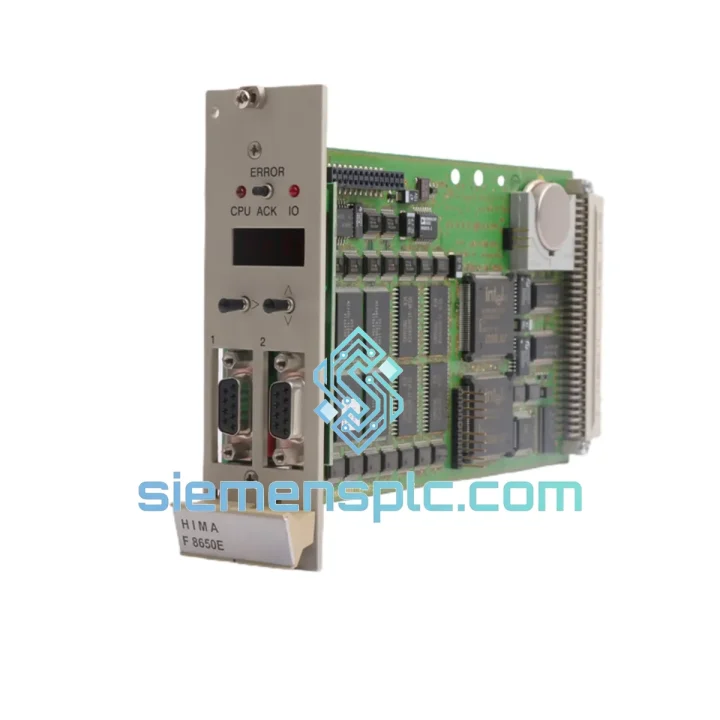

HIMA F8650E Safety PLC Module – HIMatrix Series

HIMA F8650E Safety System Central Module: Core Role in Functional Safety Control Loops

The HIMA F8650E is the central processing unit of the HIMatrix safety controller family, purpose-built to execute safety instrumented functions (SIF) at IEC 61508 SIL 3 integrity level. Within a safety control loop, this module occupies the logic solver position — receiving validated field signals from certified input modules, executing pre-compiled safety logic at deterministic scan rates, and driving output actuators through fail-safe output channels. Its architecture is not a general-purpose PLC adapted for safety; it is a dedicated safety CPU designed from the ground up to satisfy the diagnostic coverage and systematic capability requirements of IEC 61511 and IEC 61508.

In process industry applications — emergency shutdown (ESD), burner management (BMS), high-integrity pressure protection (HIPPS), and fire & gas (F&G) — the F8650E functions as the deterministic arbiter between field sensor states and actuator commands. Its internal watchdog architecture, dual-channel processing paths, and cross-comparison logic ensure that any single-point hardware failure is detected within the diagnostic test interval, preventing undetected dangerous failures from propagating to the process. The module’s SafeEthernet interface further enables peer-to-peer safety communication between distributed HIMatrix nodes without relying on a central network master, eliminating a common single point of failure in distributed SIS architectures.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Dual-Channel Cross-Comparison Architecture. The F8650E implements an internal 1oo1D processing structure in which the application program executes on a primary processor while a secondary diagnostic processor independently monitors execution results, memory integrity, and I/O data consistency. At each scan cycle, both processors compare their computed output states before any actuator command is issued. A discrepancy beyond the configured tolerance window triggers a safe-state transition — de-energizing outputs and asserting a diagnostic alarm — within the module’s reaction time. This architecture achieves a diagnostic coverage (DC) of >99% for random hardware failures, satisfying the SIL 3 hardware fault tolerance requirements of IEC 61508 Table 3.

EMC Design and Signal Isolation. The F8650E’s PCB layout segregates high-frequency digital processing circuits from the 24 V DC power input and field I/O interface planes using a multi-layer ground plane strategy. Opto-isolators on all digital I/O signal paths provide galvanic isolation of ≥500 V between field wiring and the logic domain, suppressing common-mode transients generated by inductive loads, motor drives, and switching power supplies in industrial environments. The module meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/Burst), and IEC 61000-4-5 (Surge) immunity levels, making it suitable for installation in the same panel as variable-frequency drives and high-current contactors without additional shielding enclosures.

SafeEthernet Protocol and Deterministic Communication. HIMA’s proprietary SafeEthernet protocol, implemented on the F8650E’s dual Ethernet ports, provides IEC 61784-3 compliant functional safety communication. The protocol embeds sequence numbering, time-stamping, CRC-32 error detection, and sender/receiver authentication within each safety telegram. This eliminates the seven transmission error classes defined in IEC 61784-3 (corruption, unintended repetition, incorrect sequence, loss, unacceptable delay, insertion, and masquerading) without requiring a dedicated safety network infrastructure. Standard managed Ethernet switches with IGMP snooping are sufficient — no proprietary safety switches are needed, reducing infrastructure cost and simplifying network topology.

Watchdog and Fail-Safe Output Behavior. An independent hardware watchdog timer monitors the main processor’s program execution cycle. If the watchdog is not serviced within the configured timeout window (typically 1–3× the configured cycle time), the module forces all outputs to their de-energized (safe) state and halts program execution. This behavior is hardwired in the output driver circuitry and cannot be overridden by application software, ensuring that a software hang or infinite loop cannot hold a process in an unsafe state.

System Integration Benefits

• Deterministic Scan Cycle with Configurable Watchdog: The F8650E executes safety logic at a fixed, configurable scan rate with hardware-enforced cycle time monitoring. This guarantees that the process response time (PRT) — from field signal change to actuator command — remains within the safety requirement specification, a mandatory parameter in SIL verification calculations per IEC 61511-1 Clause 11.
• Transparent Online Diagnostics via ELOP II: The engineering software provides real-time force/monitor capability for all I/O channels and internal variables during commissioning and maintenance, without requiring a separate diagnostic tool. Diagnostic coverage data is logged per channel, enabling auditable proof-test documentation as required by IEC 61511-1 Clause 16.
• Peer-to-Peer Safety Communication Without Central Master: SafeEthernet topology eliminates the network master as a single point of failure. Each F8650E node communicates directly with peer nodes, so a network switch failure affects only the links connected to that switch — not the entire SIS network. This architecture supports SIL 3 system-level availability targets without requiring redundant network masters.
• Redundant CPU Configuration for High-Availability SIS: Two F8650E modules can be configured as a 1oo2 redundant pair, with automatic bumpless switchover on primary module failure. Switchover time is <1 scan cycle, preventing process trips caused by controller hardware failures in high-demand-mode SIS applications.
• Modular I/O Expansion Without Backplane Constraints: Unlike rack-based safety PLCs, the HIMatrix architecture distributes I/O modules over SafeEthernet, allowing I/O to be located at the field device rather than centralized in a control room panel. This reduces field wiring length, lowers installation cost, and improves signal integrity for analog inputs in large-area plants.
• IEC 61131-3 Multi-Language Programming: Support for Function Block Diagram (FBD), Ladder Diagram (LD), Structured Text (ST), Instruction List (IL), and Sequential Function Chart (SFC) within ELOP II Factory allows safety engineers to implement logic in the language most appropriate for the application — reducing programming errors and simplifying third-party code review during SIL verification.
• Integrated Cause-and-Effect Matrix Documentation: ELOP II Factory generates cause-and-effect matrices directly from the application program, providing a machine-verified cross-reference between input conditions and output actions. This eliminates manual documentation errors and accelerates HAZOP/SIL review cycles.
• Long Product Lifecycle and Firmware Stability: HIMA maintains a documented product lifecycle policy with minimum 10-year spare parts availability and firmware backward compatibility. This is a critical factor for SIS installations where IEC 61511 lifecycle management requires that replacement hardware maintains the same validated safety function without re-validation of the entire SIS.

Quality Assurance & Global Logistics

Every HIMA F8650E supplied through siemensplc.com is sourced from verified, traceable supply channels. Units are inspected for label authenticity, housing integrity, connector condition, and firmware version prior to dispatch. A Certificate of Conformance (COC) with unit serial number and inspection record accompanies each shipment. Pre-shipment photographs of the actual unit are available upon request for qualified buyers.

Shipments originate from Xiamen, China, with access to DHL Express, FedEx International Priority, and UCP air freight services. Standard export documentation — commercial invoice, packing list, and country of origin declaration — is prepared for all international shipments to facilitate customs clearance. In-stock units are dispatched within 2 business days of order confirmation. Anti-static ESD packaging with foam-lined outer carton and moisture barrier bag with desiccant is standard for all module shipments. Bulk orders and project-quantity requirements are accommodated with dedicated logistics coordination.

Primary service regions include Mainland China, Southeast Asia (Singapore, Malaysia, Thailand, Vietnam, Indonesia), the Middle East (UAE, Saudi Arabia, Qatar, Kuwait), Europe (Germany, Netherlands, UK, Italy), and North America. A 12-month warranty against manufacturing defects applies from the shipment date.
