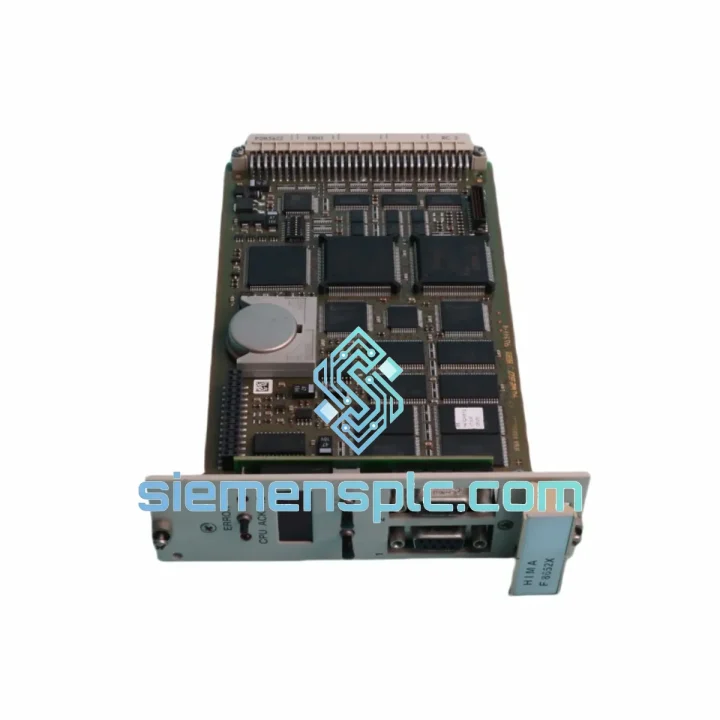

Hima F8652X HIMax Central Module

Hima F8652X HIMax Central Module – Stop the Clock on Your Downtime

Every minute your safety system is offline, the pressure mounts — from the control room, from management, from the client. The Hima F8652X is the central processing unit of the HIMax safety PLC platform, and when it fails, there is no workaround. You need an exact replacement, verified, tested, and on a plane today. That is exactly what we stock at siemensplc.com. We ship from Xiamen via DHL Express and FedEx Priority — most orders clear customs and land on your bench within 3–5 business days, anywhere in the world.

Do not wait for a 12-week OEM lead time while your plant sits idle. Call us now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The F8652X fails in predictable ways. Here is what field experience tells you to check before you pull the module — and what to do when you do pull it.

Common Fault Indicators:

• ERR LED solid red: Internal CPU fault detected. The module has failed its self-test. Replacement is the only path forward — no firmware reload will fix a hardware fault at this level.
• COM LED off / flashing amber: SafeEthernet link lost. Before condemning the F8652X, verify the fiber patch cable and the switch port. If the link recovers on a known-good cable, the module’s SFP transceiver may be the culprit, not the CPU itself.
• Watchdog trip with no process cause: Cycle time overrun. Check ELOP II diagnostics for task load. If the system was recently expanded with additional I/O modules, the F8652X may be at its processing ceiling — confirm module revision supports your current I/O count.
• Redundancy mismatch alarm (in 1oo2D config): The standby F8652X is running a different firmware revision than the active unit. Both modules must carry identical firmware. Download the active unit’s revision from ELOP II before ordering a replacement so you can match it exactly.

Replacement Procedure — Key Steps:

• Step 1 – Confirm hot-swap eligibility: The HIMax platform supports online module replacement only when the system is in redundant mode and the partner CPU is healthy. In simplex mode, a controlled shutdown is required. Verify system state in ELOP II before touching hardware.
• Step 2 – Record firmware revision: Navigate to the module properties in ELOP II Factory and note the exact firmware string (e.g., V9.x.x). Your replacement F8652X must match this revision. Mismatched firmware between redundant CPUs will prevent synchronization and trigger a system fault.
• Step 3 – ESD precautions: The F8652X contains sensitive CMOS logic. Ground yourself to the rack chassis before handling. Do not place the module on unprotected surfaces.
• Step 4 – Slot insertion: The F8652X is keyed to its designated CPU slot on the HIMax backplane. It will not seat in an I/O slot. Align the guide rails and press firmly until the ejector levers click. Do not force.
• Step 5 – Firmware synchronization: After insertion, the new module will automatically load its configuration from the active partner CPU over the internal backplane bus. Monitor the SYNC LED — steady green confirms successful synchronization. This process typically takes 60–180 seconds depending on application size.
• Step 6 – Functional verification: Run a partial proof test on the affected safety loop before returning the system to full automatic operation. Document the replacement in your SIS maintenance log per IEC 61511 requirements.

Configuration Notes: The F8652X does not use physical DIP switches for addressing — slot position on the HIMax backplane determines the module’s logical address automatically. No manual address configuration is required. Firmware updates must be applied through ELOP II Factory using a licensed engineering workstation connected to the system’s maintenance Ethernet port.

Reliability in Harsh Conditions

The HIMax platform was not designed for a climate-controlled server room. It was designed for offshore platforms in the North Sea, refineries in the Middle East, and chemical plants where ambient temperatures swing 40 degrees between day and night. The F8652X reflects that design philosophy at the component level.

The module’s conformal-coated PCB resists condensation and airborne contaminants — sulfur compounds, salt fog, and industrial particulates that destroy standard commercial electronics within months. Vibration damping on the backplane connector system keeps the F8652X seated and making solid electrical contact even in environments with continuous mechanical vibration from compressors, pumps, and rotating machinery mounted nearby.

Thermal management is passive — no fans, no moving parts, no maintenance interval for cooling components. The module dissipates heat through the backplane and chassis structure, which means there is nothing to fail and nothing to clean. In high-ambient installations, ensure the HIMax cabinet maintains adequate forced-air ventilation per Hima’s installation guidelines, but the F8652X itself will operate reliably up to 60 °C continuous.

The internal watchdog and continuous self-test architecture means the module is constantly monitoring its own health. It will flag a degrading condition — memory errors, clock drift, internal voltage rail deviation — before it causes a spurious trip or a dangerous failure. That diagnostic transparency is what SIL 3 certification demands, and it is what gives maintenance engineers the confidence to extend proof-test intervals to the maximum allowed under IEC 61511.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible transit times to Southeast Asia, the Middle East, Europe, and the Americas.

Standard Export Flow:

• Order confirmed → Same-day dispatch: Orders placed before 15:00 CST ship the same business day. Orders placed after cutoff ship the following morning.
• Carrier selection: DHL Express Worldwide for most destinations. FedEx International Priority for North America and select Middle East routes. We select the carrier with the fastest confirmed transit time to your specific destination at time of booking.
• Transit times: Southeast Asia 1–2 days. Middle East 3–4 days. Europe 3–5 days. North America 4–6 days. These are door-to-door estimates under normal customs conditions.
• Documentation package: Every shipment includes a commercial invoice, packing list, and certificate of origin. HS code classification (8537.10 for PLC modules) is pre-completed. For customers requiring an end-user declaration or import license support, contact us before ordering.
• ESD-safe packaging: The F8652X ships in anti-static shielding bags inside foam-lined rigid cartons. The module arrives in the same condition it left our warehouse.
• Tracking: A waybill number is emailed within 2 hours of dispatch. Real-time tracking is available through the carrier’s portal.

If your plant is down and every hour counts, tell us when you contact us. We will prioritize your order and confirm dispatch within the hour.
