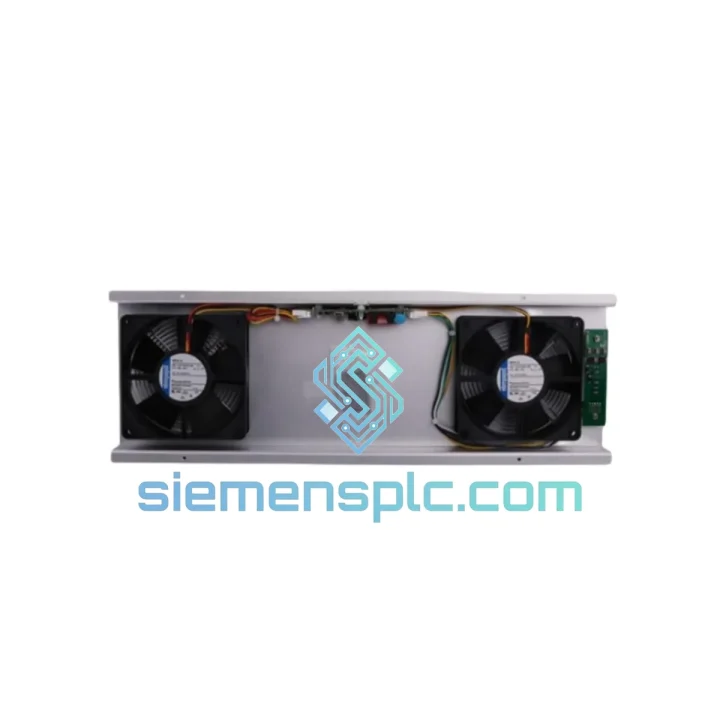

HIMA K9202 Cabinet Roof Fan

HIMA K9202 Cabinet Roof Fan: Stop the Clock on Thermal-Induced Downtime

Every minute a safety system cabinet runs hot is a minute closer to an unplanned trip. When a HIMA HIMax or HIMatrix enclosure loses its cooling fan, ambient temperatures inside the cabinet can climb past the validated operating threshold within hours — triggering nuisance faults, forcing manual bypasses, or in the worst case, taking the entire Safety Instrumented System offline. On a live process unit, that is not an inconvenience. That is a production loss event measured in tens of thousands of dollars per hour.

The HIMA K9202 Cabinet Roof Fan is the direct OEM replacement that gets your thermal management loop closed again — fast. We stock it in Xiamen, we ship it the same business day via DHL or FedEx Express, and it lands at your facility with full manufacturer traceability documentation. No waiting on factory lead times. No grey-market risk. No paperwork gaps that fail your next SIL audit.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How do you know the K9202 has failed? The signs are rarely subtle once you know what to look for. The HIMax system may log a cabinet temperature alarm (check the PADT diagnostic view under System → Cabinet Monitoring). You might notice the fan has stopped spinning entirely — audible silence where there should be a low hum — or it runs intermittently, cycling on and off as the thermal cutout trips. In high-ambient environments (above 40°C ambient), even a partially degraded fan can push internal cabinet temps past the 55°C threshold that HIMA specifies for continuous operation.

Before you pull the fan, do this:

• Confirm the cabinet door seals are intact. A failed fan combined with a broken door gasket means replacement alone will not solve the thermal problem.
• Check the inlet filter mat. A clogged filter mat can reduce airflow by 60–70%, causing the fan motor to overheat and fail prematurely. Replace the filter mat at the same time as the fan.
• Verify supply voltage at the fan connector before condemning the fan. A loose or corroded terminal on the 24 VDC feed is a common misdiagnosis.
• Log the cabinet temperature trend from the HIMA engineering tool before shutdown. This data is useful for the post-maintenance report and for justifying the spare parts requisition.

Replacement procedure (field summary):

• The K9202 mounts to the cabinet roof panel via four M4 screws. No special tooling required — a standard cross-head screwdriver handles the job.
• Disconnect the fan power connector before removing the unit. The connector is a standard 2-pin locking type; press the tab and pull straight out.
• The replacement fan is a direct plug-in fit. No firmware configuration, no DIP switch settings, no address assignment — the K9202 is purely a mechanical/electrical component with no embedded logic.
• After installation, verify airflow direction: air should exhaust upward through the roof panel. Confirm the fan rotates in the correct direction before closing the cabinet.
• Allow 15–20 minutes of runtime, then re-check the cabinet temperature reading in the HIMA diagnostic interface to confirm the thermal situation has stabilized.

Common fault codes associated with K9202 failure: On HIMax systems, a sustained cabinet overtemperature condition can trigger diagnostic messages in the system log referencing hardware health monitoring. If you are seeing repeated “Cabinet Temperature Warning” entries or the system has entered a degraded operating mode, the cooling fan is the first physical component to inspect — before suspecting processor or I/O module faults.

Reliability in Harsh Conditions

HIMA engineers the K9202 for the environments where safety systems actually live — not climate-controlled server rooms, but the cable decks of offshore platforms, the instrument rooms of ammonia plants, and the relay buildings of high-voltage substations. The fan assembly is rated for continuous duty in ambient temperatures up to 55°C, with motor windings designed to resist the moisture ingress common in coastal and tropical installations.

Vibration resistance is built into the motor bearing specification. Process plant environments generate constant low-frequency vibration from rotating machinery, compressors, and structural resonance. A fan with inadequate bearing quality will develop noise and imbalance within months in these conditions. The K9202 uses a bearing grade matched to HIMA’s long-service-interval design philosophy — consistent with the maintenance cycles of the safety systems it protects.

The fan housing is constructed to resist the particulate contamination typical of industrial environments. Combined with the cabinet’s inlet filter mat, the K9202 maintains effective airflow even in dusty conditions, provided the filter maintenance schedule is followed. In particularly aggressive environments — foundries, cement plants, grain handling facilities — we recommend increasing filter inspection frequency to monthly rather than the standard quarterly interval.

Humidity is the silent killer of electronics in tropical and coastal installations. The K9202’s motor insulation class is selected to handle the condensation cycles that occur when a plant shuts down overnight and restarts in the morning. This thermal cycling, repeated thousands of times over a component’s service life, is where inferior replacement parts fail first. The OEM K9202 is validated against HIMA’s full environmental test protocol — a standard that third-party alternatives rarely meet.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the country’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express networks. For urgent industrial spare parts, this geography matters: Xiamen’s port and air freight infrastructure means same-day handover to the carrier is achievable for orders confirmed before 14:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–5 business days via DHL Express
• North America (USA, Canada): 4–5 business days via FedEx or UPS
• Australia / New Zealand: 3–4 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via FedEx

Every shipment is fully insured and tracked from our warehouse door to your receiving dock. We provide the AWB (Air Waybill) number within 2 hours of carrier pickup, so your logistics team can monitor progress in real time. For plant shutdown scenarios where the maintenance window is fixed, we can coordinate delivery timing with your site team to ensure the part arrives before your scheduled restart.

Export documentation — commercial invoice, packing list, certificate of origin, and manufacturer certificate of conformity — is prepared as standard. For destinations requiring additional customs documentation (import permits, end-user declarations), our export compliance team handles the paperwork. We have shipped HIMA components to over 40 countries and understand the customs requirements for industrial automation parts in each major market.

Packaging is ESD-safe and shock-rated for air freight. The K9202 is packed in anti-static foam with a rigid outer carton, ensuring it arrives in the same condition it left our warehouse — regardless of how the freight handler treats it in transit.
