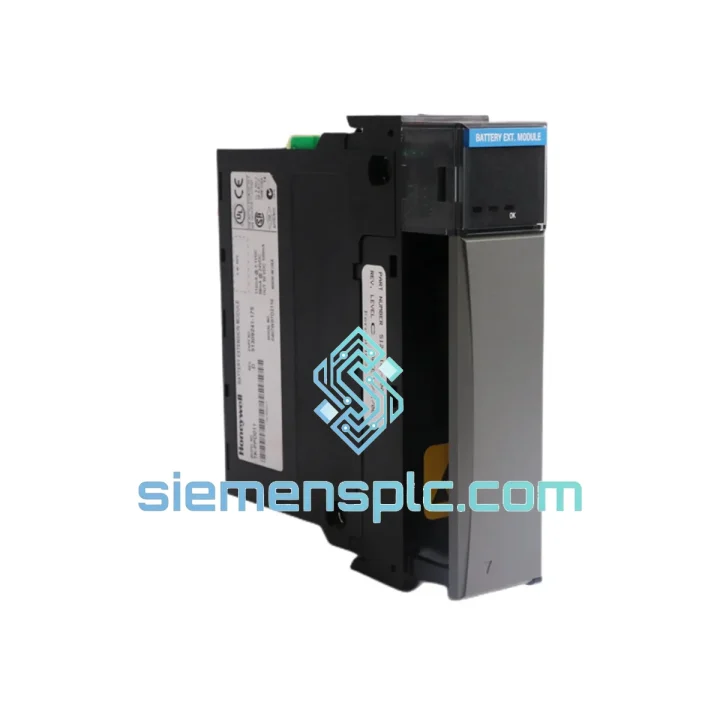

HOLLEYWELL TK-PPD011 51309241-175 DCS Battery Module

HOLLEYWELL TK-PPD011 51309241-175 — Stop the Clock on Your Downtime

Your DCS controller just lost battery backup. The process historian is wiping. The operator screen is frozen. Every minute of unplanned shutdown in a refinery, chemical plant, or power station costs real money — and right now, you need one part, fast. The HOLLEYWELL TK-PPD011 51309241-175 Battery Backup Extension Module is in stock, export-ready, and can be on a DHL flight out of Xiamen within 24 hours of order confirmation. That’s the only number that matters when your line is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on TPS and Experion PKS systems, here’s what actually goes wrong with the TK-PPD011 and what to watch when you swap it out:

Fault Code 0x4A / Controller Memory Loss on Power Cycle: This is the most common symptom of a failed battery extension module. The controller boots clean — no configuration, no tuning parameters, no historian data. Don’t waste time re-downloading from the engineering station until you’ve confirmed the battery module is functional. A dead TK-PPD011 will cause this every single time.

Replacement Procedure (Field-Verified):

1. Place the controller node in a controlled shutdown state. Do not hot-swap this module without confirming your platform’s hot-swap support — TPS nodes typically require a cold swap.
2. Remove the existing TK-PPD011 from the backplane slot. Note the slot address — this module does not require manual address configuration; it inherits the slot assignment automatically on power-up.
3. Inspect the backplane connector pins for corrosion or bent contacts before seating the replacement. A poor connection here will cause intermittent battery faults that are extremely difficult to diagnose remotely.
4. Seat the new TK-PPD011 51309241-175 firmly until the locking tab clicks. Apply even pressure — do not force one side first.
5. Power up the controller node and verify the battery status LED. On TPS platforms, a solid green indicates the module is charging and recognized. A flashing amber within the first 60 seconds is normal during initial charge cycle — do not alarm on this.
6. Confirm via the Experion PKS Station or TPS Console that the controller node reports battery backup as healthy. Check the System Status Display for any residual fault codes related to power module 51309241-xxx.
7. Allow a minimum 4-hour charge cycle before subjecting the controller to a planned power interruption test.

Firmware Compatibility Note: The TK-PPD011 51309241-175 does not carry its own firmware — it is a passive power extension device. No firmware matching is required. It is compatible across all TPS revisions and Experion PKS releases up to and including R500. For R510 and later, confirm with your system integrator that the controller chassis supports the 51309241-175 variant specifically.

Common Misdiagnosis: Engineers frequently replace the main controller power supply (TK-PRS021 or similar) when the actual failure is the battery extension module. If your power supply tests healthy but the controller still loses memory on power interruption, the TK-PPD011 is your culprit. Replace it first — it’s the cheaper and faster fix.

Reliability in Harsh Conditions

The TK-PPD011 51309241-175 was engineered for the environments where process control actually lives — not a climate-controlled lab. In the field, this means DCS cabinets mounted in outdoor enclosures in the Middle East where ambient temperatures exceed 50°C, offshore platforms where salt-laden humidity attacks every exposed connector, and mining operations where vibration from heavy equipment runs continuously through the control room floor.

The module’s sealed battery cell assembly is rated for continuous operation from 0°C to +60°C with short-term excursions to +70°C. The backplane connector uses gold-plated contacts to resist oxidation in high-humidity environments — a detail that matters enormously in coastal petrochemical facilities where cheaper connectors fail within 18 months. Vibration tolerance is validated to IEC 60068-2-6 standards, covering the frequency ranges generated by rotating machinery, compressors, and turbines that share the same structural frame as the control cabinet.

In practice, a properly installed TK-PPD011 in a well-maintained DCS cabinet should deliver 5–8 years of service life before the battery cell requires replacement. Units that fail prematurely almost always trace back to one of three causes: sustained over-temperature exposure above the rated ceiling, physical damage during a previous maintenance intervention, or counterfeit units sourced from unverified channels. Every unit we ship is inspected for authenticity markers, date codes, and physical integrity before it leaves our facility.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx international gateway access. When you confirm an order before 14:00 CST, same-day export documentation is prepared and the shipment is handed to the carrier that evening.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express

All shipments include full export documentation: commercial invoice, packing list, and certificate of origin. For regulated industries requiring additional documentation (material certification, test reports, inspection certificates), these are prepared in parallel and included in the shipment package. Customs HS code classification is handled by our logistics team — you will not face clearance delays due to incorrect documentation on our end.

For genuine emergencies where the standard express timeline is still too long, contact us directly on WhatsApp. We have arranged same-day courier handoffs and charter freight consolidation for critical shutdowns. If there is a faster way to get this part to your site, we will find it.
