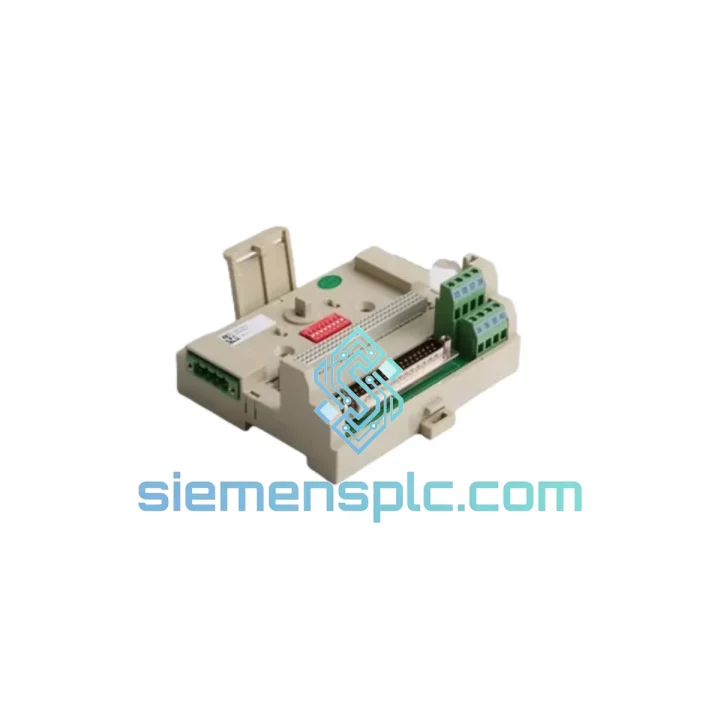

Hollysys FM131-E DCS CPU Module – LK Series

Hollysys FM131-E CPU Module — Deterministic Control Core of the LK Series DCS Architecture

The FM131-E is the primary processing module within the Hollysys LK Series Distributed Control System platform. It occupies the designated CPU slot on the LK backplane and assumes full responsibility for control strategy execution, I/O module enumeration, inter-node communication arbitration, and redundancy state synchronisation. In continuous-process industries — petrochemical refining, thermal power generation, pharmaceutical batch manufacturing, and municipal water treatment — the FM131-E functions as the deterministic engine that converts field-level sensor data into actuator commands within a bounded, repeatable scan cycle.

Unlike general-purpose embedded controllers adapted for industrial use, the FM131-E is designed from the ground up for the LK Series backplane electrical and logical interface. Its firmware is tightly coupled to the HOLLiAS MACS engineering environment, enabling online program modification, live diagnostics, and bumpless redundancy switchover without process interruption. Procurement engineers replacing end-of-life CPU modules or expanding existing LK Series cabinets will find the FM131-E the only OEM-authorised solution that preserves full platform compatibility.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture and Cycle Determinism

The FM131-E communicates with all I/O modules through the LK Series proprietary backplane bus — a parallel, synchronous interconnect that operates on a fixed arbitration schedule. Unlike asynchronous field buses (e.g., PROFIBUS DP or Modbus RTU) where collision-avoidance overhead introduces variable latency, the LK backplane uses a time-division multiplexing (TDM) scheme. The CPU module acts as bus master, issuing read/write tokens to each I/O slot in a deterministic sequence. This architecture guarantees that every I/O module is polled within a single scan cycle, regardless of the number of populated slots, eliminating the scan-time variability that plagues loosely coupled field bus topologies.

Hot-Standby Redundancy and Arbitration Logic

In a 1:1 redundant configuration, the FM131-E pair operates under a primary/standby arbitration protocol managed by dedicated hardware logic on each module — not by software polling. The active CPU continuously broadcasts its RAM state (I/O image table, PID setpoints, timer accumulators, and internal flags) to the standby over a dedicated synchronisation channel separate from the main backplane bus. Switchover is triggered by hardware watchdog timeout on the active module, not by a software health-check, which bounds the failover detection time to a single watchdog period (typically 10–50 ms). The standby module, already holding a current state mirror, resumes execution from the last synchronised scan — achieving bumpless transfer with no process upset detectable at the actuator level.

EMC Design and Signal Integrity

The FM131-E PCB layout incorporates multi-layer ground plane separation between the digital processing section and the backplane interface drivers. Ferrite bead filtering is applied at the 24 V DC input rail to suppress conducted emissions from the power supply. The Ethernet port is transformer-isolated (1500 V AC isolation) to prevent ground loop currents from corrupting network traffic in environments with large potential differences between cabinet ground and plant earth. The RS-485 interface uses differential signalling with 120 Ω termination resistors, providing common-mode noise rejection exceeding 7 V — adequate for installations in proximity to variable-frequency drives and high-current motor starters.

Non-Volatile Program Retention

Control strategy and configuration data are stored in on-board Flash memory with a minimum endurance of 100,000 write cycles. On power restoration after an unplanned outage, the FM131-E performs a self-test sequence, validates the stored program checksum, and resumes execution in warm-start mode — restoring all retentive data (counters, integrators, setpoints) to their pre-outage values without requiring operator intervention or a cold download from the engineering workstation.

System Integration Benefits

• Zero-Jitter Scan Execution: The RTOS scheduler allocates a fixed time slice to the control task, preventing background processes (diagnostics, communication handlers) from preempting the scan cycle. Measured scan-to-scan jitter is < 1 ms at a 10 ms cycle setting — critical for PID loops controlling fast thermal or pressure processes.
• Transparent Online Diagnostics: The FM131-E exposes a structured diagnostic data block accessible via HOLLiAS MACS without interrupting the running control strategy. Engineers can read CPU load percentage, backplane bus error counters, Ethernet packet loss rate, and redundancy sync status in real time — enabling predictive maintenance scheduling before a fault escalates.
• Bumpless Redundancy Switchover: Hardware-arbitrated failover completes within one watchdog period. Because the standby module holds a synchronised state mirror, actuator outputs do not change position during switchover — eliminating the process upsets (pressure spikes, temperature excursions) that occur with cold-standby architectures.
• Native HOLLiAS MACS Integration: The FM131-E requires no third-party gateway or protocol converter to communicate with the engineering workstation, historian, or OPC DA/UA server. All configuration, programming, and monitoring functions are executed natively within the MACS environment, reducing integration engineering hours and eliminating interoperability risk.
• Scalable I/O Expansion: Additional LK Series I/O modules (analog input, analog output, digital input, digital output, thermocouple, RTD) are added to the backplane without modifying the CPU configuration. The FM131-E automatically enumerates new modules on the next power cycle and presents them to the MACS configuration tool for assignment.
• Deterministic Alarm Response: Alarm conditions detected at the I/O module level are propagated to the FM131-E within the current scan cycle and time-stamped with 1 ms resolution using the module’s internal clock, synchronised to the plant NTP server via Ethernet. This sequence-of-events (SOE) capability supports post-incident root cause analysis without ambiguity in event ordering.
• Long-Term Platform Continuity: Hollysys maintains production of LK Series modules on a published 10-year availability commitment. Procurement engineers can specify the FM131-E for new installations with confidence that spare parts will remain available through the operational life of the plant — typically 15–25 years for process industry assets.
• Reduced Commissioning Risk: Because the FM131-E is the OEM-specified CPU for the LK Series, it carries the same firmware baseline as factory-shipped systems. There is no risk of undocumented hardware revision incompatibilities that arise when third-party or refurbished modules with unknown firmware revisions are substituted.

Quality Assurance & Global Logistics

Every FM131-E unit dispatched from our Xiamen, China facility is a genuine Hollysys OEM module sourced through authorised distribution channels. Before packaging, each unit undergoes a structured pre-shipment inspection protocol: visual examination of the PCB and connector pins for physical damage, label verification against the Hollysys part number and date code database, and a functional power-on self-test confirming that the module initialises correctly and passes its internal diagnostic routine.

Units are packaged in ESD-safe anti-static bags, placed in foam-lined cartons with desiccant packs, and sealed for international transit. For air freight shipments via DHL Express or FedEx International Priority, transit time from Xiamen to major industrial hubs is typically 3–5 business days to Europe, 4–6 days to North America, and 2–3 days to Southeast Asia. Sea freight consolidation is available for bulk orders where lead time permits. All shipments include a commercial invoice, packing list, and — upon request — a certificate of conformance and pre-shipment inspection report for customs and quality records.

A 12-month warranty covers manufacturing defects from the date of shipment. Warranty claims are processed with full RMA documentation support. Our technical team in Xiamen is available via email and WhatsApp to assist with compatibility verification, firmware revision confirmation, and remote commissioning guidance at no additional charge for qualified orders.
