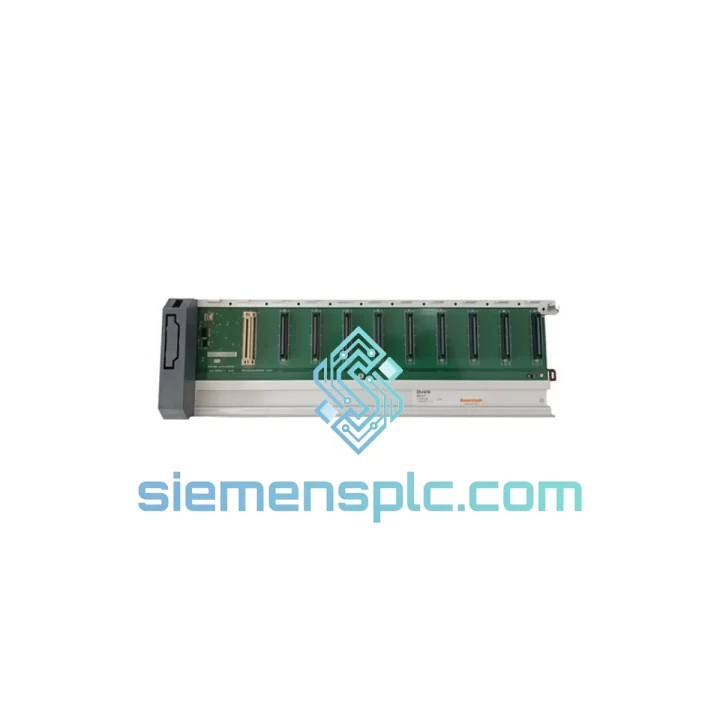

Honeywell 2MLB-M08A Main Base Module – HC900 Series

Honeywell 2MLB-M08A 8-Slot Main Base Module: Structural Foundation of HC900 Distributed Control Architecture

The Honeywell 2MLB-M08A is an 8-slot main base unit engineered as the physical and electrical backbone of the HC900 Process & Safety Controller platform. Within a distributed control loop, this base module performs three non-negotiable functions: it provides the mechanical chassis for up to eight plug-in I/O or communication modules, delivers regulated backplane power distribution across all occupied slots, and maintains the high-speed internal bus that synchronizes data exchange between the HC900 CPU and its peripheral modules at deterministic scan rates. Without a correctly specified main base, the entire rack assembly loses its timing coherence — making the 2MLB-M08A a zero-compromise selection in any HC900 system build or expansion project.

Deployed across oil & gas separation trains, chemical reactor control loops, power generation auxiliaries, and pharmaceutical batch systems, the 2MLB-M08A operates continuously in environments where ambient temperatures fluctuate, vibration is persistent, and electrical noise from variable-frequency drives and high-current switchgear is unavoidable. Its mechanical design accounts for all of these stressors through a combination of conformal-coated PCB assemblies, gold-plated backplane connector contacts, and a steel-reinforced DIN rail mounting bracket rated for panel vibration up to 2g.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 2MLB-M08A’s internal architecture reflects Honeywell’s design philosophy of deterministic, fault-tolerant process control. Several hardware-level decisions distinguish this base from generic rack assemblies:

Backplane Bus Arbitration: The 8-slot backplane implements a token-passing arbitration scheme rather than a shared-bus collision model. Each slot is assigned a fixed time window within the CPU’s scan cycle, eliminating bus contention latency. This guarantees that I/O data from all eight slots is refreshed within a single deterministic scan period — a critical requirement for safety instrumented functions operating under IEC 61511 SIL 2 constraints.

EMC Shielding Architecture: The backplane PCB incorporates a continuous ground plane layer between the signal traces and the chassis ground, forming a Faraday-shield effect that attenuates common-mode noise injected from field wiring. The steel enclosure provides an additional 20 dB of shielding effectiveness at frequencies above 30 MHz, which is the primary emission band of PWM-driven motor controllers commonly co-located in the same panel.

Connector Contact Metallurgy: Backplane-to-module connectors use gold-over-nickel plating on both the male pins and female sockets. Gold plating (minimum 0.76 µm per IPC-4554) prevents oxide layer formation that would otherwise increase contact resistance over time in humid or mildly corrosive atmospheres. This is particularly relevant in coastal petrochemical facilities where salt-laden air accelerates base metal oxidation.

Power Rail Isolation: The 5 VDC logic rail and 24 VDC field power rail are routed on separate PCB layers with individual decoupling capacitor arrays at each slot position. This prevents field-side transients — such as inductive kickback from solenoid valves — from coupling into the logic supply and corrupting CPU-to-module communication frames.

Thermal Management: Slot positions are spaced at 25.4 mm centers with open-air convection channels between modules. The base plate is manufactured from extruded aluminum alloy (6061-T6), which provides a thermal conductivity of 167 W/m·K, efficiently spreading localized heat from high-dissipation modules across the full chassis length and into the panel enclosure wall.

System Integration Benefits

• Deterministic I/O Scan Timing: The fixed-slot arbitration protocol ensures all eight module positions are polled within a single CPU scan cycle, supporting control loops with scan periods as low as 100 ms without jitter-induced process upsets.
• Hot-Swap Module Replacement: Individual I/O modules can be removed and reinserted while the base remains powered, provided the HC900 CPU is configured for hot-swap mode — reducing planned maintenance downtime to under 60 seconds per module swap.
• Scalable Rack Expansion: Multiple 2MLB-M08A bases can be linked via HC900 rack expansion cables, extending the I/O count without requiring additional CPUs. Each linked base appears as a contiguous address block in the HC900 configuration database.
• Unified Diagnostic Transparency: Each slot position reports module presence, module type ID, and communication health status to the HC900 CPU in real time. Faults are surfaced as structured diagnostic events in Experion PKS or HC Designer, with timestamp resolution to 1 ms.
• Mixed Module Compatibility: A single 2MLB-M08A base simultaneously accommodates analog input, analog output, digital input, digital output, and communication modules without slot-type restrictions, simplifying BOM planning for mixed-signal control panels.
• Reduced Panel Footprint: The 8-slot form factor consolidates what would otherwise require two 4-slot bases, reducing DIN rail length requirements by approximately 180 mm and freeing panel space for marshalling terminals or power distribution components.
• Firmware-Independent Hardware: The base module contains no field-programmable logic. All configuration resides in the CPU and individual I/O modules, meaning a base replacement requires zero firmware re-flashing — only physical reinstallation and a CPU re-scan to re-enumerate the slot map.
• Safety System Segregation Support: When used within a Honeywell Safety Manager architecture, the 2MLB-M08A supports physical segregation of safety-rated I/O modules from standard process I/O modules within the same panel, maintaining SIL integrity boundaries without requiring separate enclosures.

Quality Assurance & Global Logistics

Every Honeywell 2MLB-M08A unit supplied by siemensplc.com is sourced through verified industrial automation supply channels. We do not handle refurbished, reconditioned, or grey-market stock. Each unit passes a structured pre-shipment inspection covering label authenticity, part number verification, connector pin integrity, and housing condition before it is cleared for dispatch.

Shipments originate from our warehouse in Xiamen, China — a major export hub with direct access to international express carriers and air freight consolidators. Standard delivery timelines are 3–7 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. For bulk orders or freight-sensitive shipments, air cargo and sea freight options are available with full export documentation including commercial invoice, packing list, certificate of origin, and HS code 8537.10 classification.

All units are shipped in anti-static packaging with foam-lined outer cartons rated for drops up to 1.2 m (ISTA 1A standard). A 12-month warranty against manufacturing defects is included with every unit. Dead-on-arrival (DOA) claims are processed within 30 days of receipt with replacement or full refund options.
