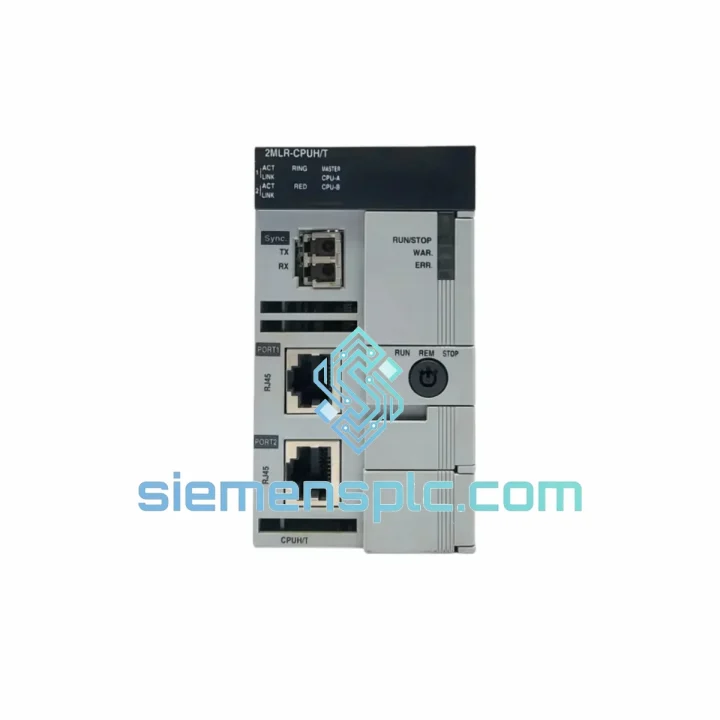

Honeywell 2MLR-CPUH/T PLC CPU Module – MasterLogic-200

Honeywell 2MLR-CPUH/T — Central Processing Unit for MasterLogic-200 Distributed Control Architecture

The Honeywell 2MLR-CPUH/T is the high-performance CPU module at the core of the MasterLogic-200 (ML-200) programmable logic controller platform. Engineered for continuous-duty industrial environments, this module executes deterministic scan cycles, manages backplane I/O arbitration, and coordinates multi-rack communication — all within a thermally hardened enclosure rated for extended operating temperature ranges. Its /T suffix designation confirms compliance with Honeywell’s wide-temperature qualification protocol, making it suitable for outdoor enclosures, non-climate-controlled substations, and process areas where ambient conditions fluctuate beyond standard 0–55 °C limits.

In a typical ML-200 control loop, the 2MLR-CPUH/T occupies Slot 0 of the primary rack, polling distributed I/O modules across the backplane at fixed scan intervals. The CPU arbitrates read/write access to shared memory regions, resolves inter-task priority conflicts, and maintains a deterministic program execution cycle independent of communication load. This architecture separates application logic execution from network I/O handling, preventing Ethernet or serial traffic spikes from introducing jitter into the control scan — a critical requirement in closed-loop PID and sequence-of-events applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 2MLR-CPUH/T implements a dual-bus architecture that physically separates the application processor bus from the backplane I/O bus. The application processor — a 32-bit RISC core — executes user logic in a protected memory partition, while a dedicated I/O co-processor handles backplane polling and DMA transfers to the shared data table. This separation ensures that a communication fault or I/O module timeout does not stall the main scan cycle; instead, the co-processor flags the fault in the diagnostic register and the CPU continues execution with the last valid I/O state, consistent with IEC 61131-3 fault-handling requirements.

EMC Design: The module’s PCB layout employs a four-layer stackup with dedicated ground planes between signal layers, reducing radiated emissions and improving immunity to conducted interference per EN 61000-4-4 (EFT/Burst, 2 kV) and EN 61000-4-5 (Surge, 1 kV). All external-facing connectors are filtered with common-mode chokes and transient voltage suppression (TVS) diodes rated at ±15 kV ESD per IEC 61000-4-2. The metal front panel provides a continuous Faraday shield, bonded to chassis ground through low-impedance spring contacts on the rack guide rails.

Retentive Memory Architecture: Program and data retention during power loss is managed by a lithium coin-cell battery circuit with a low-battery detection comparator. When supply voltage drops below 4.5 VDC, the circuit switches SRAM power to the battery within 2 µs — well within the SRAM data-retention hold time — preserving all retentive variables, counters, and timers without data corruption. Battery life is rated at 5 years at 25 °C with typical duty cycle.

Watchdog and Redundancy Arbitration: An independent hardware watchdog timer monitors the application processor’s heartbeat signal. If the CPU fails to service the watchdog within the configured timeout window (default 500 ms, adjustable 100 ms–2 s), the watchdog asserts a system fault output and forces all digital outputs to their configured safe state (de-energize or hold-last-value, per tag configuration). In hot-standby redundant configurations using the ML-200 redundancy module, the 2MLR-CPUH/T participates in a bumpless switchover protocol: the standby CPU continuously mirrors the primary’s data table via a dedicated fiber-optic sync link, achieving switchover in under 50 ms without process disturbance.

System Integration Benefits

• Deterministic scan execution: Fixed-priority task scheduler guarantees that the fastest task (minimum 1 ms) is never preempted by lower-priority communication tasks, maintaining loop timing accuracy for PID and motion-adjacent applications.
• Transparent online diagnostics: The CPU exposes a structured diagnostic data block accessible via Ethernet/IP or Modbus TCP, reporting per-module fault codes, scan time statistics, memory utilization, and battery voltage — without requiring a dedicated diagnostic tool or physical access to the rack.
• Hot-swap I/O module support: The backplane arbitration logic allows I/O modules to be inserted or removed under power without interrupting the CPU scan cycle, reducing planned maintenance windows in continuous-process environments.
• Multi-rack expansion without gateway overhead: Up to 7 expansion racks can be connected via the ML-200 remote I/O bus, with the CPU addressing all remote modules as local I/O — eliminating the latency and configuration complexity of gateway-based remote I/O architectures.
• IEC 61131-3 multi-language programming: A single project can mix Ladder Diagram, Function Block Diagram, Structured Text, and Sequential Function Chart within the same CPU, allowing engineers to select the most appropriate language for each control task without cross-platform data mapping.
• Integrated motion coordination: The CPU’s high-speed counter inputs and pulse-train outputs support encoder feedback and stepper/servo positioning tasks at up to 100 kHz, removing the need for a separate motion controller in moderate-complexity positioning applications.
• Firmware field upgrade: CPU firmware can be updated via the Ethernet port using Honeywell’s Control Builder utility, with automatic rollback to the previous firmware version if the update process is interrupted — eliminating the risk of a failed update leaving the module in an unbootable state.
• Structured event logging: The CPU maintains a 1,024-entry time-stamped event log in retentive memory, recording task transitions, fault assertions, and operator-initiated mode changes with 1 ms resolution. This log is accessible via the diagnostic data block and can be exported to a SCADA historian without custom scripting.

Quality Assurance & Global Logistics

Every Honeywell 2MLR-CPUH/T unit supplied through siemensplc.com is sourced from verified distribution channels and subjected to a multi-stage inspection protocol before dispatch from our Xiamen, China operations center:

• Authenticity verification: OEM label inspection, holographic seal validation, and serial number cross-reference against Honeywell’s authorized distribution records to eliminate counterfeit risk.
• Electrical pre-shipment check: Power-on functional test confirming backplane communication, Ethernet port link negotiation, and diagnostic LED status sequence — consistent with Honeywell’s factory acceptance test criteria.
• ESD-safe packaging: Modules are individually sealed in anti-static poly bags, cushioned with conductive foam inserts, and packed in double-wall corrugated cartons rated for international air freight handling (ISTA 2A compliant).
• Documentation package: Each shipment includes a certificate of conformance, packing list with serial numbers, and — on request — a third-party inspection report from a qualified IEC 17020 inspection body.
• 12-month warranty: All new units carry a 12-month warranty against manufacturing defects from the date of invoice. Warranty claims are processed within 5 business days, with advance replacement available for qualified accounts.
• Global logistics from Xiamen: Standard DHL/FedEx/UPS express delivery reaches most destinations in 3–7 business days. Sea freight consolidation is available for bulk orders. All shipments include full tracking and commercial invoice documentation for customs clearance.
