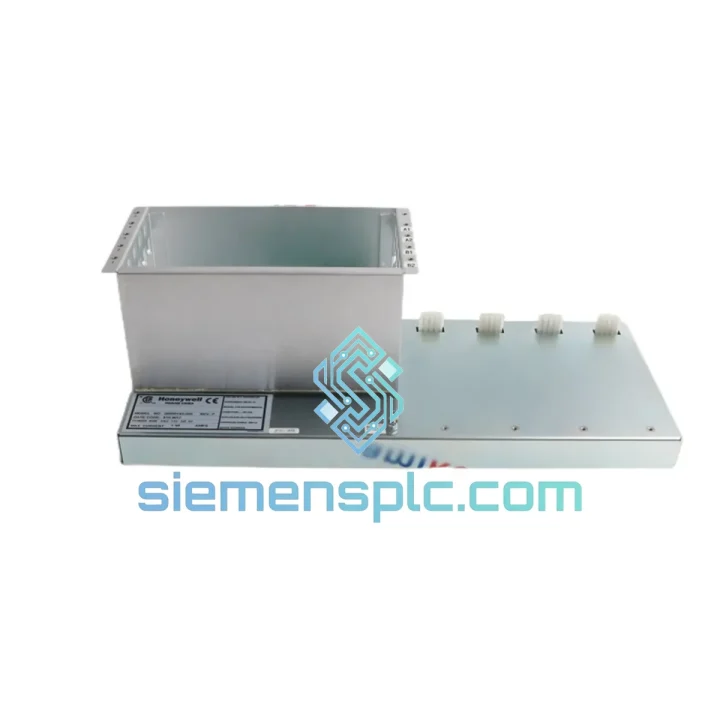

Honeywell 38500143-200 DCS Network Module – TDC 3000 Experion PKS

Honeywell 38500143-200 LCNE Hub Assembly: Local Control Network Extension Architecture in Process Automation

The Honeywell 38500143-200 is a Local Control Network Extension (LCNE) Hub Assembly designed for deployment within Honeywell TDC 3000 and Experion PKS distributed control architectures. Its primary function is to extend the physical reach and node capacity of the Local Control Network (LCN) — the high-speed, deterministic token-passing bus that interconnects controllers, operator stations, history modules, and application nodes within a Honeywell DCS installation.

In a standard TDC 3000 topology, the LCN operates as a dual-redundant coaxial network with a defined maximum segment length and node count. When a plant expansion or physical layout exceeds these constraints, the LCNE Hub Assembly provides the electrical and logical bridging required to extend the network without degrading bus timing or token rotation integrity. The 38500143-200 achieves this through active signal regeneration and impedance-matched termination, preserving the 5 Mbps nominal LCN data rate across extended cable runs.

This module is not a passive splitter. It performs active repeater functions, buffering incoming LCN frames and retransmitting them with restored signal amplitude and edge definition. This is critical in environments where cable aging, connector oxidation, or electromagnetic interference (EMI) from adjacent VFDs, switchgear, or high-current bus bars would otherwise introduce bit errors into the token-passing sequence.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 38500143-200 operates at the physical and data-link boundary of the LCN. Unlike a simple passive T-tap, the hub assembly incorporates discrete line-driver and line-receiver ICs matched to the LCN’s coaxial impedance profile. This prevents reflections that would otherwise corrupt the token frame preamble and cause token loss — a condition that forces all LCN nodes into a time-consuming token recovery sequence, directly impacting scan cycle determinism.

EMC Design: The PCB layout routes high-frequency LCN signal traces with controlled impedance and ground-plane shielding beneath the signal layer. The chassis is bonded to the cabinet earth ground through a low-impedance strap, providing a Faraday shield effect against capacitively coupled noise from adjacent relay coils or SCR firing circuits. Ferrite beads on the power input lines suppress conducted emissions from the 24 VDC supply rail, preventing power-line noise from modulating the signal regeneration circuitry.

Redundancy Arbitration: In dual-redundant LCN configurations, the hub assembly monitors both the primary and secondary coaxial segments independently. Internal comparator logic detects signal loss or excessive error rates on either segment and can isolate a degraded segment without interrupting traffic on the healthy path. This arbitration occurs in hardware, with no dependency on the host CPU or application software — ensuring sub-millisecond fault isolation that does not propagate to the process control layer.

Thermal Management: The assembly uses a conformal-coated PCB with wide copper pours on power-carrying traces to distribute thermal load. The active repeater ICs are rated for industrial temperature ranges, and the module is designed for continuous duty in forced-air cabinets without derating. No active cooling components (fans, heat pipes) are present, eliminating a common failure mode in long-lifecycle DCS installations.

System Integration Benefits

• Extends LCN segment reach without altering the token-passing timing parameters, preserving the deterministic scan cycle across the expanded network.
• Increases node capacity on the LCN bus, allowing additional controllers, operator stations, or history modules to be added during plant expansions without a full network redesign.
• Maintains dual-redundancy integrity — both coaxial paths are extended simultaneously, so the redundancy architecture is preserved end-to-end through the hub.
• Transparent to LCN software — no firmware changes, no node address reconfiguration, and no impact on Honeywell’s Network Interface Module (NIM) or LCN Manager software.
• Improves signal margin in aged installations where cable attenuation has accumulated over decades of service, restoring bit error rates to specification without cable replacement.
• Supports mixed-generation hardware — compatible across TDC 3000 generations and Experion PKS migration paths, reducing the risk of incompatibility during phased upgrades.
• Reduces diagnostic ambiguity — by isolating each LCN segment at the hub, fault localization is simplified. A segment failure is contained at the hub boundary, and maintenance personnel can identify the affected cable run without taking the entire network offline.
• Enables geographically distributed control rooms — the extended segment reach allows LCN nodes to be located in physically separated buildings or process units while maintaining a single logical network, reducing the need for gateway devices or protocol converters.

Quality Assurance & Global Logistics

Every Honeywell 38500143-200 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full traceability to the original manufacturer lot. Units are inspected against a documented checklist covering PCB condition, connector pin integrity, label authenticity, and housing for evidence of rework or tampering. Where feasible, functional bench testing is performed against LCN signal specifications prior to packaging.

Shipments originate from our Xiamen, China warehouse, positioned for efficient access to major international freight hubs including Xiamen Gaoqi International Airport and Xiamen Port. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every order. HS Code 8537.10 is applied for customs classification. DHL Express, FedEx International Priority, and UPI air freight are the primary carriers for time-critical orders; sea freight consolidation is available for bulk procurement. In-stock units are dispatched within 1–3 business days of order confirmation. A 12-month warranty covers defects in materials and workmanship from the date of shipment.
