Honeywell 38500148-300 Power Supply Module – Experion PKS

Honeywell 38500148-300 DCS Power Supply Module — Backbone of Stable Process Control Power Distribution

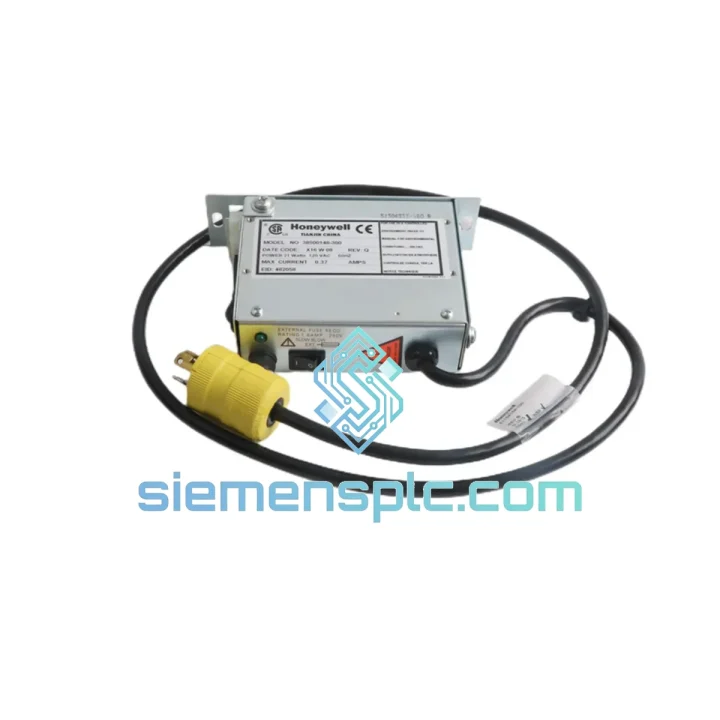

The Honeywell 38500148-300 is a dedicated DC power supply module engineered for deployment within Honeywell Distributed Control System (DCS) architectures, including the TotalPlant Solution (TPS) and Experion PKS platforms. Its primary function within the control loop is to deliver regulated, conditioned DC power to I/O subsystems, controller cards, and communication interface modules mounted on the DCS backplane. Unlike general-purpose industrial power supplies, this module is designed to the electrical tolerance and noise-rejection specifications demanded by process-critical environments — petrochemical plants, power generation facilities, and continuous-process manufacturing lines where an unplanned power interruption translates directly into production loss or safety-system compromise.

The module integrates into the Honeywell cabinet architecture without adapter hardware, drawing from the AC mains distribution rail and outputting regulated DC to the backplane bus. Its output characteristics are matched to the load profiles of Honeywell I/O cards, ensuring that transient current demands during module hot-swap or diagnostic polling cycles do not cause bus voltage sag that could trigger spurious fault conditions in adjacent modules.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Full datasheet and wiring diagrams available upon written request to [email protected].

Hardware Logical Analysis

The 38500148-300 employs a switched-mode power conversion topology with active power factor correction (PFC) on the AC input stage. This design choice is deliberate: in process plant environments, the AC mains supply is frequently shared with variable-frequency drives, large motor starters, and other non-linear loads that introduce harmonic distortion and voltage notching onto the distribution bus. The active PFC front-end maintains a power factor above 0.95 across the full load range, reducing reactive current draw and protecting the module’s internal components from the thermal stress associated with high crest-factor input waveforms.

The DC output stage uses synchronous rectification with a multi-stage LC filter network. The filter is dimensioned to attenuate switching-frequency ripple to below 50 mVpp at full load — a specification that matters because Honeywell I/O analog input cards have input impedance characteristics that can couple power-rail noise into the measurement signal chain if the supply is insufficiently filtered. The output regulation loop uses a voltage-mode control architecture with feed-forward compensation, which provides fast transient response to step-load changes without the overshoot that can occur in purely feedback-controlled designs.

Galvanic isolation between the AC input and DC output is implemented using a high-frequency transformer with reinforced insulation rated to withstand 3 kVAC for one minute — a requirement derived from IEC 61010-1 for equipment installed in measurement and control applications. This isolation barrier prevents ground-loop currents from flowing between the AC distribution system and the DCS signal ground, which is a common source of measurement error in thermocouple and RTD input loops.

The module incorporates over-voltage protection (OVP), over-current protection (OCP), and over-temperature protection (OTP) circuits implemented in hardware, independent of any firmware. Hardware-level protection is architecturally significant: it means the protection response time is in the microsecond range rather than the millisecond range of software-polled protection schemes, and it remains functional even if the module’s internal microcontroller (if present for diagnostics) enters a fault state.

EMC design follows a layered approach: the PCB layout uses a split ground plane to separate switching-node currents from the output return path, minimizing common-impedance coupling. Input and output filtering includes both differential-mode and common-mode chokes, addressing both conducted emissions and susceptibility to externally injected common-mode noise — the latter being particularly relevant in DCS cabinets where high-voltage I/O wiring and low-level signal wiring share the same enclosure.

System Integration Benefits

The following eight characteristics define the operational value of the 38500148-300 within a Honeywell DCS installation:

• Deterministic Bus Voltage Stability: The tight output regulation (±1% at full load, typical) ensures that all backplane-powered modules operate within their specified supply voltage window, preventing the marginal-voltage conditions that can cause intermittent module resets or communication errors on the backplane bus.
• Hot-Swap Load Transient Tolerance: The output capacitance and control-loop bandwidth are sized to absorb the inrush current of a newly inserted I/O module without causing a bus voltage dip that would be interpreted as a power fault by adjacent modules — a critical requirement in systems that must maintain continuous operation during maintenance activities.
• Diagnostic Transparency: The module provides status indication via front-panel LED and, where supported by the cabinet architecture, a fault relay output that can be wired to the DCS alarm system. This allows the control system to generate a maintenance alert before a power supply degradation event causes a process upset.
• Reduced Ground-Loop Interference: The reinforced galvanic isolation eliminates the primary mechanism by which AC ground currents corrupt analog measurement signals in thermocouple and 4–20 mA loops, improving measurement accuracy without requiring additional signal conditioning hardware.
• Harmonic Load Reduction: The active PFC front-end reduces the harmonic current injected into the plant AC distribution system, which is relevant in facilities where multiple DCS cabinets share a common distribution transformer and harmonic loading is a concern for transformer thermal management.
• Hardware-Independent Protection: OVP, OCP, and OTP circuits operate independently of any software layer, ensuring that protection functions remain active during firmware updates or diagnostic polling cycles and that response times are in the sub-millisecond range.
• Direct Backplane Compatibility: The module’s mechanical and electrical interface is designed to Honeywell’s DCS cabinet specification, eliminating the need for adapter brackets, custom wiring harnesses, or output voltage adjustment — reducing installation time and eliminating a class of field-wiring errors.
• Thermal Margin at Rated Load: The module is rated for continuous operation at 60°C ambient, which provides adequate thermal margin in a sealed DCS cabinet with forced-air cooling operating at the upper end of its design envelope — a condition that occurs in outdoor or poorly air-conditioned control rooms in tropical climates.

Quality Assurance & Global Logistics

Every Honeywell 38500148-300 unit dispatched from our Xiamen facility is a genuine OEM component sourced through verified industrial supply channels. We do not stock, sell, or knowingly handle counterfeit, cloned, or non-OEM substitute parts. Each unit undergoes a structured pre-shipment inspection covering label authenticity, housing integrity, connector-pin condition, and where feasible, a powered functional verification against published output voltage and regulation specifications.

Shipments originate from Xiamen, China, with access to DHL Express, FedEx International Priority, and consolidated sea freight for volume orders. In-stock orders are typically dispatched within 1–3 business days of payment clearance. We prepare full export documentation including commercial invoice, packing list, and HS code classification to support smooth customs clearance in the destination country. A 12-month warranty is provided from the date of shipment. Certificate of Authenticity and test records are available upon written request for quality-audit purposes.
