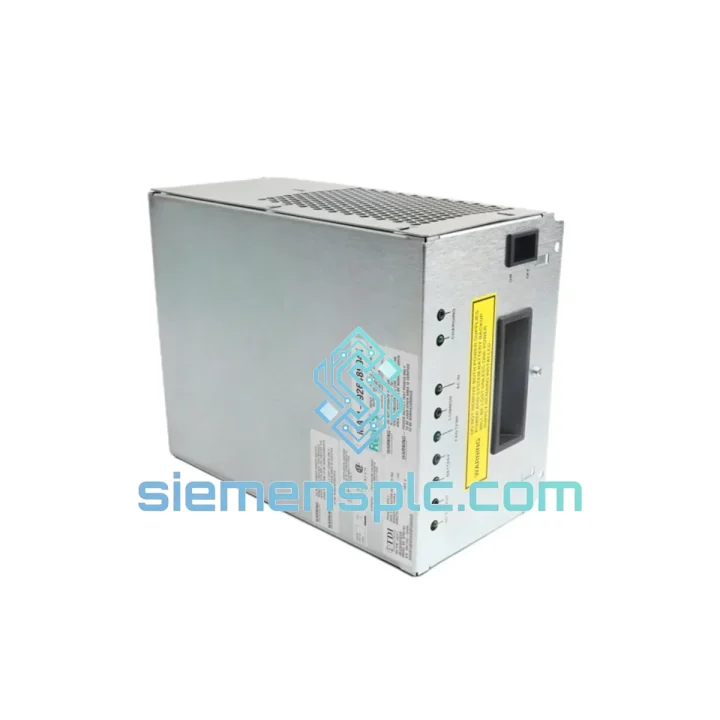

Honeywell 51198651-100 SPS5785 DCS Power Supply

Honeywell 51198651-100 SPS5785 — Every Hour of Downtime Costs You. We Ship Today.

Your DCS cabinet just threw a power fault. The SPS5785 is dead. Production is at zero. Every minute the line stays down, you’re bleeding money — lost throughput, idle crews, and a plant manager breathing down your neck. You don’t need a sales pitch. You need the part on a plane tonight.

We stock the Honeywell 51198651-100 SPS5785 switching power supply module in Xiamen, China. Verified original. Inspected before dispatch. DHL/FedEx express available. If you’re reading this at 2 AM during an emergency shutdown, call us now — we answer.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After years of field calls, here is what actually goes wrong with the SPS5785 and what to watch when you swap it out.

Common Failure Signatures:

• No DC output / dead bus: Most common failure mode. Internal MOSFET or PWM controller failure. The module will not respond to any diagnostic command. Confirm with a clamp meter on the output rails before condemning the backplane.
• Intermittent power cycling: Usually caused by a failing bulk capacitor on the primary side. The module restarts every 30–90 seconds. Check for bulging caps on the PCB if you have a spare to open. Thermal cycling in high-ambient cabinets accelerates this failure mode significantly.
• Overcurrent shutdown (OCS fault on HMI): Before replacing the PSU, isolate downstream I/O cards one by one. A shorted I/O module will kill a healthy SPS5785 within minutes of installation. Confirm load current is within spec before powering up the replacement unit.
• Experion PKS alarm — PSU Fault or Power Module Failure: Cross-reference with the system event log. If the fault clears on redundant PSU switchover, the primary SPS5785 is confirmed failed. Log the fault timestamp for your root cause analysis report.

Replacement Procedure — Key Steps:

1. Verify redundancy status first. If the system has a redundant PSU pair (N+1), confirm the standby unit is healthy and carrying load before pulling the failed module. Do not hot-swap without confirming the standby is active.
2. De-energize and lock out the failed module. Follow your site LOTO procedure. The SPS5785 does not require full system shutdown in a redundant configuration, but confirm with your system architecture drawing.
3. Check slot assignment and backplane revision. The 51198651-100 revision must match your chassis hardware compatibility matrix. Mismatched revisions can cause backplane communication errors even if the module powers up correctly.
4. No DIP switch or address configuration required. The SPS5785 is not addressable — it is a passive power module. No firmware download, no self-addressing jumper. Seat it, torque the retaining screws, restore power.
5. Monitor the first 10 minutes post-swap. Watch the Experion PKS system status display for PSU health alarms. If the OCS fault returns within 5 minutes, the problem is downstream — not the module.
6. Document the swap in your CMMS. Log the failed module serial number, failure mode, and replacement date. SPS5785 MTBF degrades significantly in cabinets with ambient temps above 40°C — flag this for your next PM cycle.

Reliability in Harsh Conditions

The SPS5785 was engineered for continuous-duty industrial environments. Honeywell designed this module to operate in the kind of places where equipment either survives or gets replaced every six months.

Vibration: The card-cage mounting system and conformal-coated PCB resist mechanical vibration common in compressor stations, pump rooms, and rotating-equipment control buildings. Solder joint fatigue — the silent killer of cheaper PSUs — is mitigated by Honeywell’s manufacturing process and component selection.

Thermal Stress: Rated for industrial ambient temperature ranges. The switching topology is optimized for efficiency, which directly reduces internal heat generation. In field installations, SPS5785 units run continuously for 8–12 years in properly ventilated cabinets. Failures almost always correlate with blocked cabinet vents or failed cooling fans — not the module itself.

Humidity and Contamination: Conformal coating on the PCB provides a barrier against condensation and airborne particulates — a real concern in coastal plants, chemical environments, and facilities with poor cabinet sealing. This is not a consumer-grade board; it is built to survive the plant floor.

Power Quality: The switching power supply design provides inherent immunity to input voltage sags, transients, and harmonic distortion — common in industrial facilities with large motor loads sharing the same distribution bus. Your DCS controller sees clean, regulated DC regardless of what is happening upstream on the AC feed.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct access to international freight lanes. When you place an order, here is exactly what happens:

1. Order confirmation and stock verification (within 2 hours): We confirm physical stock, pull the unit, and photograph it for your records. You receive a confirmation email with the unit’s condition report.
2. Pre-shipment inspection: Visual inspection, label verification, and basic functional pre-check. Anti-static packaging with moisture barrier applied. Unit is sealed and labeled for export.
3. Export documentation: Commercial invoice, packing list, and HS code declaration prepared. For destinations requiring import permits or specific customs documentation, contact us in advance — we handle this regularly.
4. DHL / FedEx Express dispatch: Same-day dispatch for orders confirmed before 15:00 CST. Tracking number provided within 4 hours of pickup. Typical transit times: Europe 2–3 days, North America 2–4 days, Middle East 3–5 days, Southeast Asia 1–2 days.
5. Customs clearance support: We provide all documentation required for smooth customs clearance. For high-value shipments, we recommend DDP (Delivered Duty Paid) terms — ask us for a quote.

We have shipped to refineries in Saudi Arabia, power plants in Germany, pharmaceutical facilities in the US, and paper mills in Brazil. The logistics process is the same every time: fast, documented, and traceable.
