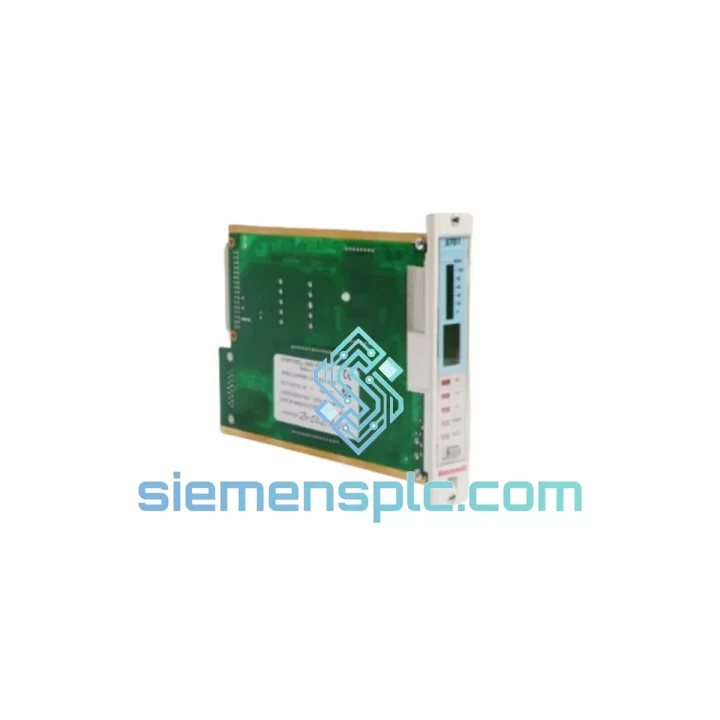

Honeywell 51201485-100 C DCS Interface Module – TDC 3000 Series

Honeywell 51201485-100 C DCS Interface Module – Backplane Communication Architecture in TDC 3000 / Experion PKS Control Loops

The Honeywell 51201485-100 C is a C-series interface module designed for deployment within the Honeywell TDC 3000 and Experion PKS distributed control system platforms. Its primary function is to bridge the Local Control Network (LCN) or Universal Control Network (UCN) backplane with downstream I/O subsystems, providing deterministic data exchange between the process field layer and the supervisory control layer. In high-availability process environments — refinery crude units, ethylene crackers, power generation turbine control — the integrity of this interface layer directly governs loop scan consistency and alarm response latency.

Unlike generic communication cards, the 51201485-100 C operates within Honeywell’s proprietary backplane arbitration scheme, where each module slot is assigned a fixed time-division multiplex (TDM) window. This architecture eliminates bus contention at the hardware level, ensuring that I/O data from field transmitters and final control elements reaches the High-Performance Manager (HPM) or Application Module (AM) within a bounded cycle time — typically sub-100 ms for standard process loops.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 51201485-100 C employs a dual-layer signal conditioning architecture. On the field-facing side, each analog input path passes through a precision instrumentation amplifier stage with a common-mode rejection ratio (CMRR) exceeding 90 dB at 50/60 Hz — a specification that directly addresses the ground loop interference endemic to long cable runs in petrochemical plants where cable trays share conduit with high-current motor feeders.

Optical isolation is implemented at the boundary between the field signal conditioning stage and the backplane logic bus. The isolation barrier sustains a minimum of 500 VDC working isolation, preventing ground potential differences between field junction boxes and the control room cabinet from propagating into the backplane. This is not a passive protection measure; the optocoupler response time is characterized to maintain signal fidelity at the module’s rated scan frequency without introducing phase distortion that would corrupt derivative action in PID loops.

On the backplane side, the module’s local microcontroller manages the TDM slot arbitration handshake. When the HPM broadcasts a data request token on the LCN, the 51201485-100 C responds within its assigned window, uploading a pre-latched snapshot of all channel values. This latching mechanism — where all channel ADC conversions are triggered simultaneously at the start of each scan cycle — eliminates inter-channel skew, a critical requirement for ratio control and cascade loops where the relative timing of two measured variables determines controller output.

The module’s onboard EEPROM stores channel configuration parameters (range, engineering units, alarm limits) in non-volatile memory. Following a power interruption, the module restores its full configuration autonomously within the HPM’s cold-start sequence, without requiring a download from the supervisory layer. This self-recovery behavior reduces restart time after unplanned outages — a measurable factor in plant availability calculations.

EMC hardening extends to the PCB layout: the analog ground plane is physically separated from the digital ground plane and joined at a single star point adjacent to the power entry connector. Decoupling capacitors are placed within 2 mm of each IC power pin, and the backplane connector pins are sequenced so that ground pins make contact before signal pins during hot-insertion — a design detail that prevents transient current spikes from corrupting adjacent module data during live rack maintenance.

System Integration Benefits

• Deterministic scan cycle compliance: TDM-based backplane arbitration guarantees that the 51201485-100 C delivers channel data within a fixed latency window, preserving the scan-rate integrity of HPM control strategies without jitter accumulation over extended runtime.
• Zero-configuration hot-swap recovery: EEPROM-resident channel parameters allow the module to rejoin the backplane after replacement without a full system download, reducing mean time to restore (MTTR) during corrective maintenance windows.
• Optical isolation eliminates ground loop faults: The 500 VDC isolation barrier prevents field-side ground potential differences from generating common-mode noise on the backplane bus, maintaining signal accuracy on 4–20 mA loops across long cable distances.
• Simultaneous channel latching removes inter-channel skew: All ADC conversions are triggered in a single synchronized event per scan cycle, ensuring that ratio and cascade control strategies receive temporally consistent data sets — a prerequisite for stable derivative-mode tuning.
• Onboard diagnostics with three-state LED reporting: The module continuously monitors its own power rails, communication link status, and channel integrity, surfacing fault conditions to the HPM’s alarm management system without requiring external test equipment.
• Full backward compatibility with TDC 3000 rack infrastructure: The C-series form factor and backplane pinout are mechanically and electrically compatible with existing TDC 3000 and TPS cabinets, eliminating the need for rack modifications or cable re-termination during module replacement.
• Reduced commissioning overhead: Pre-verified units shipped from Xiamen arrive with channel configuration intact, allowing direct rack insertion and loop checkout without a cold-configuration cycle from the engineering workstation.
• Supports high-density I/O architectures: The module’s low per-channel backplane bandwidth consumption allows multiple 51201485-100 C units to coexist in a single HPM rack without saturating the LCN data highway, supporting dense I/O configurations in space-constrained control room cabinets.

Quality Assurance & Global Logistics

Every Honeywell 51201485-100 C unit supplied by siemensplc.com is sourced through verified procurement channels and subjected to a structured pre-shipment inspection protocol. Visual inspection confirms PCB surface condition, connector pin integrity, revision label authenticity, and the absence of rework indicators inconsistent with OEM manufacturing standards. Functional verification — where test infrastructure permits — includes power-on sequencing, backplane communication handshake confirmation, and LED diagnostic state validation.

Units are packaged in anti-static shielding bags, placed in foam-lined cartons rated for international air freight handling, and accompanied by a shipment documentation set that includes a commercial invoice, packing list, and certificate of origin. For customers requiring traceability documentation, a pre-shipment inspection report is available upon request.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, supporting both air express and sea freight dispatch. Standard air express shipments via DHL, FedEx, or UPS reach major industrial hubs in Southeast Asia within 3–5 business days, Europe within 5–7 business days, and North America within 5–8 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. Bulk orders are accommodated via sea freight with full export documentation support, including HS code classification and customs value declaration.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
Location: Xiamen, China
