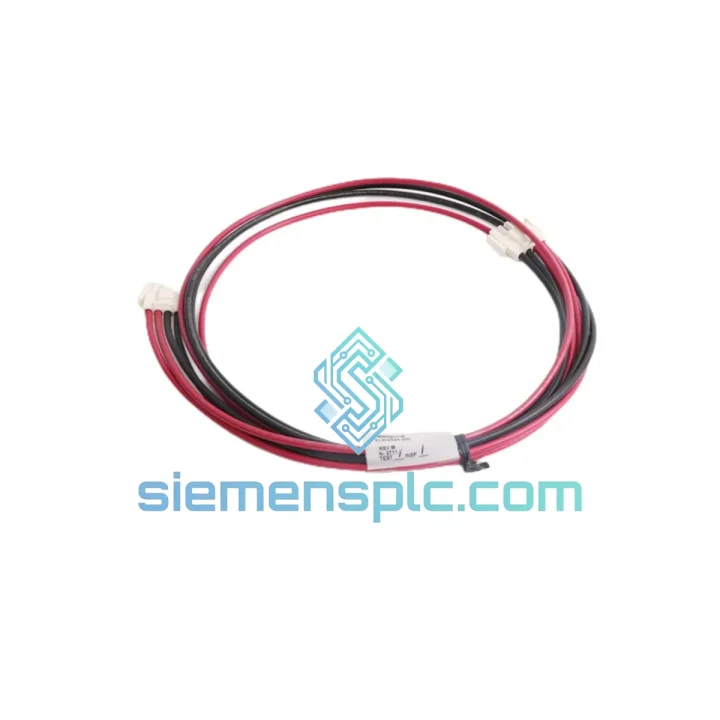

Honeywell 51202324-300 Power Cable Assembly – Experion PKS TPS

Honeywell 51202324-300 Internal Power Cable Assembly — Structural Role in DCS Cabinet Power Distribution

The Honeywell 51202324-300 is a revision-controlled internal power cable assembly engineered exclusively for Honeywell distributed control system (DCS) platforms, including Experion PKS, TotalPlant Solution (TPS), and TDC 3000 cabinet architectures. In any DCS installation, the power distribution subsystem is not a passive infrastructure element — it is an active determinism enabler. Every I/O module, controller card, and communication backplane in the cabinet draws regulated 24 VDC from a shared bus, and the cable assembly connecting the primary power supply unit to that bus must maintain voltage within a tight tolerance band under all load conditions. The 51202324-300 is the OEM-specified component that fulfills this function.

The -300 revision designator is not cosmetic. Within Honeywell’s configuration management framework, each revision suffix encodes a discrete engineering change record (ECR) that documents a specific mechanical or electrical modification relative to the prior revision. The -300 variant carries a distinct connector pinout, conductor cross-section specification, cable length, and strain-relief geometry. Substituting a -200 or -400 revision without engineering authorization is non-compliant in SIL-rated or safety-instrumented loop environments governed by IEC 61511.

In fully populated I/O racks — configurations with 16 or more I/O modules sharing a common 24 VDC rail — aggregate current draw typically ranges from 8 A to 14 A depending on module type and channel loading. At these current levels, a non-OEM cable with undersized conductors introduces resistive voltage drop that can push module supply voltages below the 24 VDC ±10% operating threshold. The result is not always an immediate hard fault; more commonly, it manifests as intermittent diagnostic alarms, marginal module resets during process transients, or accelerated thermal aging of module power regulators — failure modes that are difficult to trace back to cable resistance without systematic power rail measurement.

The 51202324-300 eliminates this failure vector by providing conductor sizing, connector geometry, and jacket material that are matched to Honeywell’s internal power distribution specification. This product page provides the technical depth required for procurement engineers, maintenance planners, and system integrators to make a fully informed sourcing decision without reliance on generic datasheet summaries.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 51202324-300 operates at the boundary between mechanical assembly engineering and electrical power integrity. Several hardware design characteristics define its performance envelope in high-density DCS cabinet environments:

Polarized Keyed Connector Architecture: The multi-pin connector housing incorporates a physical keying feature that enforces correct orientation during insertion. In cabinet environments where technicians work under time pressure or in restricted-visibility conditions, this mechanical interlock eliminates reverse-polarity connection — a failure mode that would immediately damage the power input stage of downstream I/O module regulators. The latch-lock retention mechanism prevents connector back-out under vibration, which is a relevant concern in cabinets mounted near rotating machinery or in facilities with structural vibration from compressors or turbines.

Conductor Cross-Section and Voltage Drop Budget: Honeywell’s 24 VDC power distribution architecture for Experion PKS and TPS cabinets operates on a shared bus with a defined voltage drop budget from the power supply output to the most distal module connector. The conductor cross-section in the 51202324-300 is selected to keep resistive drop within this budget under worst-case aggregate load. A non-OEM cable with a 50% reduction in conductor cross-section (e.g., 0.5 mm² vs. 1.0 mm²) introduces approximately 0.5–1.0 V of additional drop at 10 A load — sufficient to push marginal modules into under-voltage lockout without triggering a hard power supply fault.

Strain-Relief and Flex-Life Design: The cable jacket and strain-relief boot are co-engineered to withstand the mechanical stress of periodic cabinet maintenance. The -300 revision incorporates an updated strain-relief geometry relative to the -200 revision, providing improved resistance to conductor fatigue at the connector exit point — the highest-stress location in any cable assembly subject to repeated insertion and extraction cycles. Expected service life under normal maintenance frequency (50–100 cycles over 10 years) is within the design envelope of the -300 strain-relief specification.

EMC Routing Compliance: Although the 51202324-300 is a power cable rather than a signal cable, its routing within the cabinet is governed by Honeywell’s EMC segregation guidelines. The jacket material and specified routing path minimize capacitive coupling to adjacent signal cables, reducing conducted noise injection into the 24 VDC supply rail. This is a non-trivial concern in cabinets co-located with variable-frequency drives or other switching power sources, where supply rail noise can corrupt analog input readings or trigger false digital input transitions.

Revision Traceability and Configuration Control: Each -300 unit carries part number labeling that is traceable to Honeywell’s internal configuration management system. This traceability supports process safety management (PSM) documentation requirements under OSHA 1910.119 and functional safety audit trails under IEC 61511, where the exact part number and revision of every safety-related component must be documented and verifiable.

System Integration Benefits

• Direct Drop-In Replacement: The 51202324-300 installs into the target cabinet without field modification, re-termination, or custom fabrication. Connector geometry and cable length match the OEM installation envelope, eliminating the labor cost and risk of non-standard cable routing.
• Preserved Power Rail Determinism: By maintaining 24 VDC bus voltage within the ±10% tolerance band under full I/O rack load, this assembly ensures all connected modules operate within their specified power envelope — preserving scan-cycle determinism and preventing spurious under-voltage diagnostic alarms during process transients.
• Reduced Mean Time to Repair (MTTR): Stocking the 51202324-300 as a critical spare reduces MTTR for power distribution faults to under 15 minutes. No cable fabrication shop, crimping tools, or connector inventory is required — the assembly is ready to install from the box.
• PSM and Functional Safety Compliance: Using the OEM part number and revision ensures full compliance with Honeywell system documentation, simplifying audit trails for PSM reviews and IEC 61511 functional safety assessments where component traceability is mandatory.
• Warranty and Support Contract Eligibility: Honeywell service contracts and lifecycle support agreements typically require OEM-specified components. The 51202324-300 preserves eligibility for Honeywell’s extended support programs, avoiding contract disputes arising from non-OEM component substitution.
• Accurate Power Rail Diagnostics: Experion PKS performs continuous 24 VDC rail monitoring. A correctly rated OEM cable ensures that power rail diagnostic readings reflect actual system health rather than masking marginal voltage conditions caused by non-OEM cable resistance — maintaining diagnostic transparency across the control loop.
• Cross-Generation Cabinet Compatibility: The 51202324-300 is compatible across multiple generations of Honeywell DCS cabinets sharing the same power distribution architecture, providing procurement flexibility for brownfield facilities with mixed-generation Experion PKS and TPS installations.
• Long-Term Spare Parts Availability: Specialist industrial automation suppliers maintain revision-controlled stock of this assembly beyond Honeywell’s standard product lifecycle, extending the operational life of installed DCS infrastructure without forcing premature platform migration.

Quality Assurance & Global Logistics

All Honeywell 51202324-300 units supplied through siemensplc.com are sourced from verified industrial automation supply channels with documented part number and revision traceability. Each unit undergoes pre-shipment inspection covering connector pin integrity, jacket condition, strain-relief seating, and part number label accuracy. Both new and surplus-new stock conditions are available; stock condition is explicitly stated on every order confirmation and shipping document.

Shipments originate from our warehouse in Xiamen, China, a primary logistics hub with direct access to international express freight networks including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, and certificate of origin — accompanies every shipment. EU customers can request UKCA/CE compliance documentation and HS code classification support for customs clearance.

In-stock items are dispatched within 1–2 business days of order confirmation. Indicative air freight transit times: Europe 3–5 days, North America 4–6 days, Southeast Asia 2–3 days, Middle East 3–5 days. Emergency same-day dispatch is available for critical plant maintenance situations — contact via WhatsApp for expedited handling coordination.

A 12-month warranty from shipment date applies to all genuine OEM stock. Warranty claims are processed with replacement shipment priority for customers with active plant maintenance requirements and documented fault evidence.
