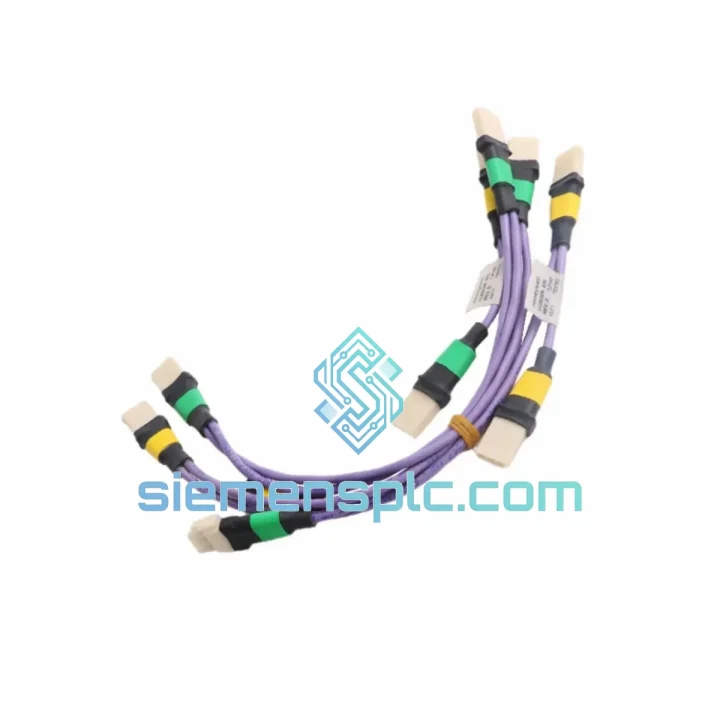

Honeywell 51202329-616 DCS I/O Cable

Honeywell 51202329-616 — Stop the Clock on Your DCS Downtime. Ship Today.

Every minute your TDC-3000 or Experion PKS system sits offline, the losses compound. A failed I/O Link cable is one of the most deceptively simple faults in a DCS cabinet — no blown fuse, no tripped breaker, just a dead signal path between your I/O Link Interface Module and the Field Termination Assembly. The 51202329-616 Violet Header Cable is the exact OEM part that restores that path. We stock it in Xiamen. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm the 51202329-616 is your fault point before ordering:

In a TDC-3000 or Experion PKS cabinet, I/O Link faults rarely announce themselves loudly. What you typically see is a cluster of I/O points going to BAD status simultaneously — not a single channel, but an entire FTA’s worth of signals dropping out. If your HPM or PM fault log shows IOP FAIL or IOLINK COMM FAIL against a specific I/O Link address, and the module itself passes its self-test LED sequence, the cable is the first physical component to swap.

Step-by-step swap procedure:

1. Isolate the affected I/O Link segment. In Experion Station or TDC-3000 Universal Station, navigate to the I/O Link status display and confirm which link address is reporting the fault. Note the slot and cabinet location.
2. Power state decision. The I/O Link cable can be replaced hot in most TDC-3000 configurations, but confirm with your site’s MOC procedure. If the FTA is connected to live field instruments, coordinate with operations before disconnecting.
3. Connector orientation check. The violet header is keyed — it physically cannot be inserted inverted. However, confirm the locking tab is fully seated on both ends before re-energizing. A partially seated connector is the #1 cause of repeat faults after a cable swap.
4. No address configuration required. Unlike I/O modules that require slot addressing or DIP switch settings, the 51202329-616 is a passive cable assembly. There is no firmware, no address switch, no jumper. Plug in, lock, done.
5. Post-swap verification. In Experion Configuration Studio or TDC-3000 NIM, force a link re-scan or wait for the automatic polling cycle (typically 1–2 seconds). All previously faulted I/O points should return to GOOD status within one scan cycle if the cable was the sole fault.
6. If fault persists after cable swap: Suspect the I/O Link Interface Module itself (check for IOP LED fault pattern) or the FTA connector block. Inspect the FTA header pins for corrosion or mechanical damage — in humid environments, pin oxidation on the FTA side is a common secondary fault.

Common fault codes associated with this cable failure:

• IOLINK COMM FAIL — Loss of serial communication on the I/O Link segment
• IOP FAIL — I/O Processor fault, often triggered by cable open-circuit
• BAD PV on multiple AI/AO/DI/DO points simultaneously — hallmark of a link-level fault rather than a channel fault
• LINK TIMEOUT — Polling timeout on the affected I/O Link address

Firmware matching note: The 51202329-616 is hardware only — no firmware dependency. However, if you are replacing an I/O Link Interface Module at the same time, verify the module firmware revision is compatible with your HPM/PM firmware level. Mismatched firmware between the controller and I/O Link module can produce intermittent COMM FAIL even with a good cable.

Reliability in Harsh Conditions

Process plants are not server rooms. The 51202329-616 is built for the environment you actually work in — not the one on the datasheet cover photo.

The cable jacket uses industrial-grade PVC insulation rated for continuous operation across the full temperature range of a DCS cabinet, including the thermal cycling that occurs during plant startups and shutdowns. In petrochemical and refinery environments where ambient cabinet temperatures can spike during summer shutdowns, the insulation retains its dielectric properties without cracking or delaminating.

The shielded construction provides meaningful EMI rejection in high-density I/O cabinets where variable frequency drives, solenoid valve banks, and high-current relay outputs share the same enclosure. The I/O Link serial bus is inherently noise-sensitive at the physical layer — an unshielded or degraded cable in this environment will produce intermittent communication faults that are notoriously difficult to diagnose without a protocol analyzer. The OEM shielding specification eliminates this variable.

Mechanical vibration is a factor in compressor stations, turbine control panels, and any cabinet mounted on or near rotating equipment. The violet header connector uses a positive-locking tab mechanism that maintains contact integrity under continuous vibration loads. Field experience shows that aftermarket cables with looser connector tolerances are the first to develop intermittent faults in high-vibration installations — the OEM connector spec is not over-engineering, it is the minimum acceptable standard for this application.

Humidity and condensation are managed through the cable jacket’s moisture-resistant construction. In coastal or tropical installations where cabinet breathing cycles introduce humid air, the jacket prevents moisture ingress to the conductor bundle. The connector housing is rated for the humidity ranges specified in Honeywell’s environmental qualification testing for TDC-3000 and Experion PKS field hardware.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the most logistics-connected cities on the southeast coast, with direct access to DHL, FedEx, and UPS international express networks. This is not a drop-ship operation. Stock is physically on our shelves.

Standard export process for the 51202329-616:

• Order confirmation: Within 2 hours of payment or PO receipt during business hours (UTC+8, Mon–Sat).
• Export documentation: Commercial invoice, packing list, and Certificate of Conformance prepared same day. HS Code 8544.42 applies for customs classification.
• Carrier handoff: DHL Express or FedEx International Priority pickup from our Xiamen facility. Tracking number issued within 24 hours of shipment.
• Transit times: Southeast Asia 1–2 days. Middle East, Europe, North America 3–5 days. Remote destinations 5–7 days. Customs clearance time varies by destination country.
• Urgent shipments: DHL Express Next Flight Out (NFO) service available for critical plant shutdowns. Contact us directly on WhatsApp for NFO coordination — this is not a website checkout option, it requires direct communication.
• Import duties: Buyer is responsible for destination country import duties and taxes. We provide accurate HS codes and declared values to facilitate smooth customs clearance. We do not under-declare shipment values.

If your plant is down and you need a part on a specific aircraft, call us. That is what we are here for.
