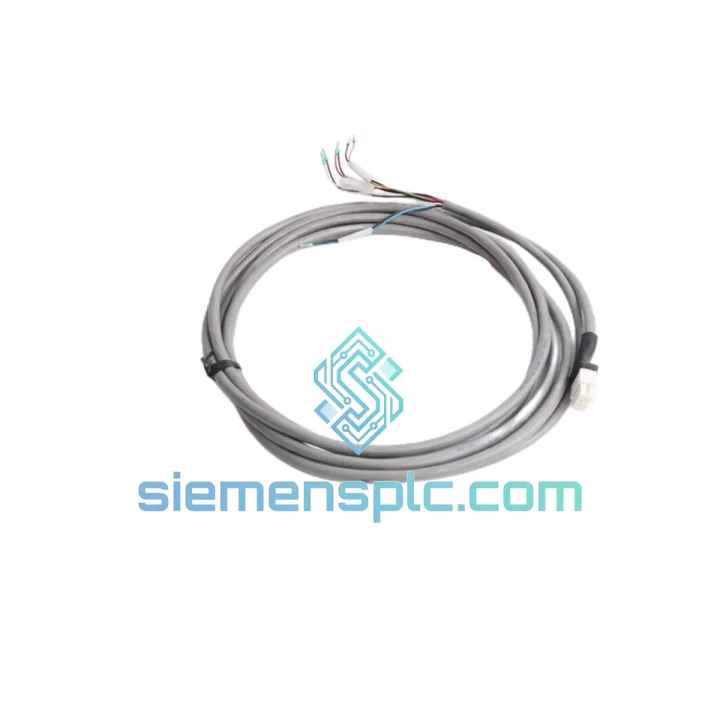

Honeywell 51202343-001 DCS Cable Assembly

Honeywell 51202343-001 PSU Status Cable – Cut Downtime, Restore Control, Ship Today

Your Experion PKS or TDC 3000 node is locked on a PSU fault. You’ve already cycled power twice. The supply module bench-tests clean. The fault won’t clear. Every minute the process is down, the cost counter is running — and it’s not running slowly.

The Honeywell 51202343-001 PSU Status Cable is the component that gets overlooked in the first diagnostic pass because it carries a signal, not power. A single degraded contact, a fractured conductor at the connector boot, or a corroded pin is enough to make a healthy PSU register as failed at the controller node. The module is fine. The signal path is broken. And the fix is a cable swap, not a PSU replacement.

We stock the 51202343-001 in Xiamen — physically on the shelf, not on inbound order. Confirmed orders before 14:00 CST leave the same day via DHL Express or FedEx International Priority. We have shipped to refineries in the Gulf, chemical complexes in Europe, and offshore platforms across Asia-Pacific — all within 24 hours of first contact. If your plant is down right now, skip the quote form.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

These failure patterns are from field calls, not from a service bulletin. Know them before you pull any hardware.

Fault Pattern 1 — Hard PSU Alarm, Module Passes Bench Test
You pull the PSU, test it off-system, it passes every check. You reinstall it. The fault is still active at the controller. This is the 51202343-001’s primary failure signature. The cable carries a discrete status signal — one open conductor at either connector end registers as a dead PSU regardless of what’s actually in the slot. Before condemning a module that tests healthy, swap the cable first. A cable swap takes under ten minutes. A PSU module swap takes two hours minimum and introduces connector wear on every cycle.

Fault Pattern 2 — Intermittent PSU Alarm That Self-Clears
The alarm appears, operators acknowledge, it clears. The cycle repeats over days or weeks with no apparent trigger. This is a micro-fracture in the cable jacket — almost always at the connector boot where the cable bends at a fixed angle — that opens and closes with thermal expansion or cabinet vibration. Confirm by flexing the cable slowly along its full length while watching the fault register at the controller. If the alarm triggers on flex, the cable is condemned. Do not tape it and continue. An intermittent PSU status signal is operationally more dangerous than a hard failure because it trains operators to acknowledge and ignore the alarm.

Fault Pattern 3 — New PSU Module Not Recognized After Swap
You’ve installed a replacement PSU. The controller still shows a fault. Before assuming the new module is defective, re-seat the 51202343-001 at both ends. The multi-pin connector requires firm, even pressure — a partially engaged connector passes no signal even though it appears fully seated. Re-seat with the cabinet de-energized where your safety procedures permit, restore power, and observe the fault register before escalating to module replacement.

Step-by-Step Replacement Procedure:

1. Coordinate with the control room. Confirm the system is in a safe state before disconnecting any PSU signal cable. Log the action in your permit-to-work system.
2. Photograph the existing cable routing, connector orientation, and any cable clamps before removal. The 51202343-001 has defined polarity — reversing it will not damage hardware but will invert status logic at the controller.
3. Disconnect at the PSU end first, then at the controller node. If multiple cables share the same cabinet run, label both ends before removal.
4. Inspect mating connectors on both PSU and controller for bent pins, debris, or oxidation. Clean with isopropyl alcohol and a fine brush if contamination is present. Allow to dry fully before proceeding.
5. Route the replacement cable along the original path. Avoid sharp bends within 100 mm of either connector. Secure with cable clamps at the same intervals as the original.
6. Seat the controller-node end first, then the PSU end. Apply firm, even pressure until the locking tab audibly engages. If resistance is felt, check pin alignment — do not force.
7. Restore power. Verify the PSU fault clears at the operator console within 30 seconds. If the fault persists, re-check connector seating before escalating to PSU module replacement.
8. Log the replacement: date, technician ID, old part condition, new part serial number. Update your site spare parts register.

Suffix interchangeability note: The -001 and -002 share identical signal pinout. The -002 is approximately 150 mm longer. Both are interchangeable in most cabinet configurations — verify cable length against your cabinet layout before ordering if routing clearance is tight.

Reliability in Harsh Conditions

Honeywell DCS installations operate in environments that have nothing in common with a climate-controlled server room. Petrochemical plants where cabinet ambient temperatures reach 50 °C in summer. Offshore platforms where salt-laden humidity and diesel generator vibration are permanent background conditions. Fertilizer and chemical facilities where corrosive vapor is a maintenance reality, not an incident.

The 51202343-001 cable jacket compound resists hydrocarbon vapors, common industrial cleaning solvents, and mild chemical exposure typical of refinery and chemical plant environments. Gold-plated multi-pin contacts are rated for a minimum of 500 mating cycles — a figure that matters when quarterly PSU inspections require pulling and re-seating this cable repeatedly across a system’s 20-year service life.

Vibration tolerance is validated to 10–150 Hz at 1.5 mm displacement amplitude, covering the operating range of most pump skids, compressor packages, and rotating equipment installations. For sites with extreme vibration profiles — reciprocating compressors above 1,000 RPM in close proximity — add a cable clamp within 50 mm of each connector to reduce flex fatigue at the termination point. This is a five-minute field modification that measurably extends cable service life in high-vibration environments.

Thermal cycling performance is qualified through 1,000 cycles between −20 °C and +70 °C with no measurable degradation in contact resistance. In most installations, the cable assembly will outlast the PSU module it monitors. The failure point is always the connector, not the cable body — which is why connector inspection and cleaning should be part of every scheduled PSU maintenance event, not just reactive callouts.

Stock held in our Xiamen warehouse is maintained in climate-controlled storage at 20 °C ±3 °C and 40–60% RH. Each unit is individually sealed in anti-static packaging with a desiccant sachet. New OEM stock carries a verified shelf life of 36 months from our intake date. Tested surplus stock is function-verified before shelving and carries a 90-day warranty from dispatch.
