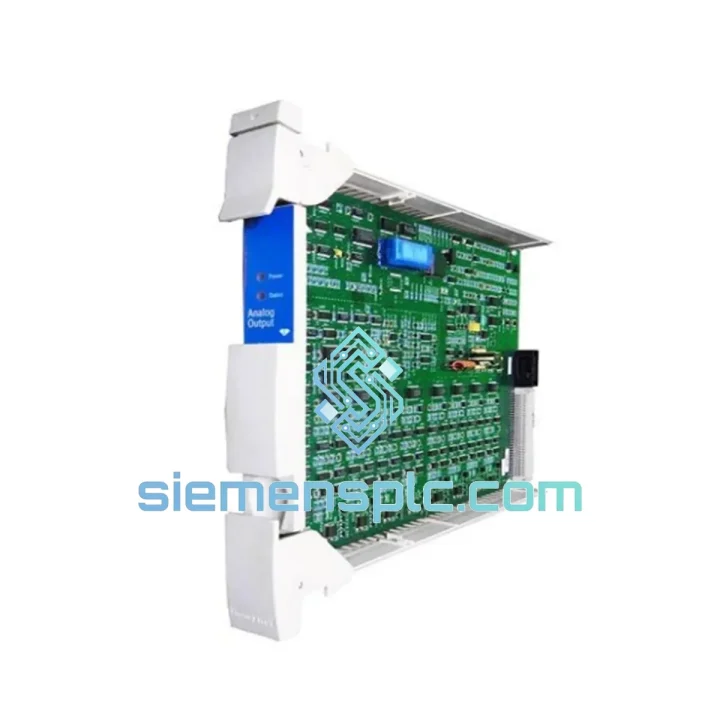

Honeywell 51304485-100 DCS Input Module – Experion PKS

Honeywell 51304485-100 Analog Input Module – Signal Acquisition Architecture in High-Availability DCS Loops

In a distributed control system, the input module is not a passive component — it is the first point of signal fidelity or failure. The Honeywell 51304485-100 Analog Input Module occupies a structurally critical position in the Experion PKS and TDC 3000 control hierarchy: it conditions, digitizes, and transmits field-level process variables to the controller with the timing precision that closed-loop control demands. A degraded or failed input card does not simply produce a bad reading — it corrupts the control decision at the source. This page provides the engineering data and replacement guidance needed to restore loop integrity fast.

URGENT REQUIREMENT? Real-time Stock & RFQ:
📧 [email protected] | 💬 WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 51304485-100 is built around a multiplexed analog front-end feeding a successive-approximation ADC. Understanding the hardware architecture is essential for both integration planning and fault diagnosis.

Optical Isolation Architecture: Each input channel passes through a dedicated optocoupler stage before reaching the ADC bus. This galvanic barrier — rated at 500 VDC channel-to-backplane — prevents ground loop currents from corrupting the digitized signal and protects the backplane from field-side transients. In refinery environments where field wiring runs alongside high-voltage motor cables, this isolation is not optional; it is the primary EMC defense mechanism.

Anti-Aliasing Filter: A passive RC low-pass filter (cutoff approximately 10 Hz) precedes the sample-and-hold circuit on each channel. This eliminates high-frequency noise components — particularly 50/60 Hz mains interference — before the ADC samples the signal. The result is a clean, stable process value even in electrically dense control rooms.

Multiplexer Sequencing: The 16-channel variant uses a CMOS analog multiplexer with break-before-make switching to prevent channel cross-talk during scan transitions. Settling time between channel switches is held to <500 µs, ensuring that the ADC receives a fully settled signal before conversion begins.

Backplane Bus Interface: The module communicates with the Honeywell I/O Link via a synchronous serial protocol clocked by the I/O Link Interface Module (ILIIM). Data integrity is maintained through CRC-16 checksums on each data frame. Any transmission error triggers a module-level diagnostic flag visible in the Experion PKS Station display — no silent data corruption.

EMC Design: The PCB layout employs a split ground plane — analog and digital grounds joined at a single star point — to prevent digital switching noise from coupling into the analog signal path. Decoupling capacitors (100 nF ceramic + 10 µF tantalum) are placed at each power entry point on the board. The card edge connector includes a chassis ground pin that bonds the module frame to the rack chassis, providing a low-impedance path for shield currents from field cable screens.

Thermal Management: Power dissipation is distributed across the PCB using wide copper pours on the inner layers. No active cooling is required within the 0–60°C operating range. The module is rated for continuous operation at the upper thermal limit without derating, provided the rack’s forced-air ventilation system is functional.

System Integration Benefits

• 1. Deterministic Scan Timing: The fixed-cycle I/O Link protocol guarantees that process variable updates reach the controller within a bounded latency window — critical for PID loops with fast dynamics such as pressure control in compressor surge protection.
• 2. Per-Channel Diagnostic Transparency: Each channel reports open-circuit, over-range, and under-range conditions independently. Operators can identify a single failed field transmitter without ambiguity, reducing mean time to diagnose (MTTD) from hours to minutes.
• 3. Hot-Swap Compatibility: The module supports live insertion and removal in Experion PKS racks equipped with the appropriate I/O chassis. Control continues on remaining channels during replacement — no process shutdown required for single-card failures.
• 4. Redundant I/O Configuration: Two 51304485-100 modules can be configured in a redundant pair. The primary module streams live data; the secondary maintains synchronization. On primary failure, switchover occurs within one scan cycle with no bump to the process value.
• 5. Engineering Unit Scaling: Signal scaling (raw counts to engineering units) is performed in the module firmware, offloading computation from the controller CPU. This reduces controller scan load and improves overall system determinism.
• 6. HART Pass-Through Support: The module passes HART FSK signals superimposed on the 4–20 mA loop to the Experion HART Multiplexer, enabling remote device configuration and diagnostics without breaking the process loop.
• 7. Alarm Limit Enforcement: High-high, high, low, and low-low alarm thresholds are stored in the module’s non-volatile configuration memory. Alarms are generated at the I/O level before the controller processes the value, reducing alarm response latency.
• 8. Firmware Version Locking: The module stores its firmware revision in onboard flash. Experion PKS performs a firmware handshake at startup and rejects mismatched revisions, preventing silent incompatibility after a card swap — a common source of post-maintenance incidents in multi-revision DCS environments.

Quality Assurance & Global Logistics

Genuine Honeywell Hardware: Every 51304485-100 unit shipped from our Xiamen facility is sourced through documented supply channels. Part number labels, date codes, and PCB silkscreen markings are cross-verified against Honeywell’s published part matrix before the unit enters our inventory. We do not stock remarked or remanufactured boards represented as original.

Pre-Shipment Inspection Protocol:

• Visual inspection: connector pin condition, PCB surface, housing integrity, label authenticity
• Powered bench test: module initialization, channel scan verification, diagnostic LED confirmation
• ESD packaging: anti-static bag, foam-lined carton, desiccant pack for humidity-sensitive shipments
• Documentation: inspection checklist and 12-month warranty certificate included with every unit

Global Express Logistics from Xiamen, China: Our warehouse is located 8 km from Xiamen Gaoqi International Airport, providing direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Typical transit times: Southeast Asia 1–2 days, Middle East and Europe 3–5 days, North America 4–6 days. All shipments include commercial invoice, packing list, and HS code 8537.10 documentation for customs clearance. For bulk orders, sea freight via Xiamen Port is available with full container load (FCL) and less-than-container load (LCL) options.

Emergency same-day dispatch is available for orders confirmed before 14:00 CST. Contact us via WhatsApp for real-time stock confirmation before placing your order.
