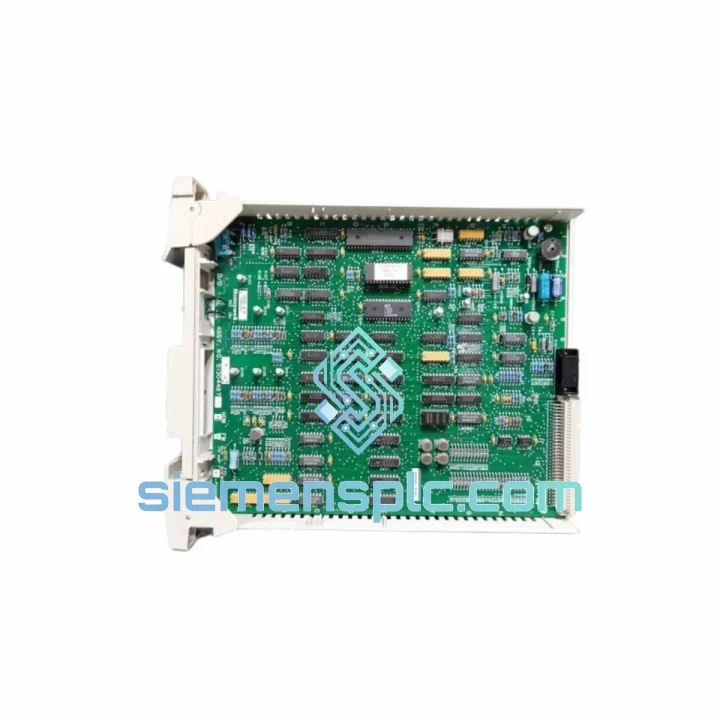

Honeywell 51304487-100 MU-PDOX02 Digital Output Module

Honeywell 51304487-100 MU-PDOX02 — Stop the Bleed: Get Your DCS Back Online Before the Next Shift

Every minute your Experion PKS or TDC 3000 system sits with a faulted digital output module, you’re bleeding production value. A single failed MU-PDOX02 can cascade — valve commands drop, interlock logic goes blind, operators start working around the system. That’s when mistakes happen. We stock the Honeywell 51304487-100 MU-PDOX02 specifically for this scenario: verified, boxed, and ready to leave Xiamen on the next available DHL or FedEx flight.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience — not a manual reprint.

Common Fault Indicators Before You Pull the Card:

• FAULT LED solid red on the MU-PDOX02 faceplate — module has lost communication with the C300/C200 controller or internal self-test failed. Don’t assume it’s the field wiring first; swap the module before chasing cables.
• Experion Station alarm: “IOM Comm Failure” or “DO Channel Fault” — check the I/O module status in Experion Configuration Studio. If the module shows “Not Responding,” the card is the culprit 80% of the time.
• Intermittent output chatter on solenoid valves — often caused by a degraded output driver on one or more channels. Isolate the channel in Experion, force the output, and measure at the FTA terminal. No voltage = failed channel, not a field device issue.
• Module powers up but channels won’t energize — verify 24 VDC field power at the FTA. The MU-PDOX02 requires separate field power; a blown fuse on the FTA power rail kills all channels simultaneously.

Step-by-Step Hot-Swap Replacement (Redundant I/O Configuration):

1. In Experion Station, navigate to the affected IOM and set the module to Maintenance Mode to suppress alarms during swap.
2. At the I/O chassis, confirm the adjacent redundant module (if fitted) has taken over — check its STATUS LED is green and active.
3. Press the module ejector lever and slide the MU-PDOX02 straight out. No tools required. Do not tilt — the backplane connector is fragile.
4. Inspect the replacement module’s firmware label. Confirm the hardware revision suffix (-100) matches your system’s compatibility matrix. Mixing revisions in a redundant pair causes automatic failover loops.
5. Slide the new module in until the ejector clicks. The module will self-address from the chassis slot — no DIP switch or rotary address setting is required on the MU-PDOX02. Slot position defines the I/O address automatically via the backplane.
6. In Experion Configuration Studio, the module should appear as “Loaded” within 30–60 seconds. If it shows “Mismatch,” download the IOM configuration from the controller to the new card.
7. Force each DO channel from Experion and verify field-side voltage at the FTA terminals before returning to automatic control.
8. Exit Maintenance Mode. Document the swap in your maintenance log with the old module’s serial number.

Configuration Gotchas Engineers Miss:

• FTA cable orientation — the ribbon cable between the MU-PDOX02 and its Field Termination Assembly is keyed, but worn connectors can seat partially. A partial seat causes random channel failures, not a full module fault.
• Output load limits — each channel is rated for a specific inductive load. Driving an oversized solenoid coil directly without a flyback diode will degrade the output driver over months, not immediately. Always check the coil current draw against the channel spec.
• Firmware mismatch in non-redundant systems — if you’re replacing a card in a single (non-redundant) slot, a firmware version gap between the module and the controller may require a configuration download. Have your Experion backup ready before the swap.

Reliability in Harsh Conditions

The MU-PDOX02 was engineered for environments that would kill consumer-grade electronics in a week. Honeywell’s MU-Series I/O platform is qualified to operate continuously in conditions that define heavy industry:

Vibration & Mechanical Shock: The module’s PCB assembly uses conformal coating and through-hole anchoring on critical components. It meets IEC 60068-2-6 sinusoidal vibration testing — relevant for installations near rotating machinery, compressors, and pump skids where structural vibration is constant. The backplane connector is designed for positive retention; it won’t work loose from vibration alone.

Thermal Cycling: Industrial control rooms aren’t always climate-controlled. The MU-PDOX02’s 0°C to 60°C operating range covers the realistic temperature swing in a non-air-conditioned substation or a desert-climate process plant. Internal components are selected for thermal stability — the optical isolators maintain consistent switching thresholds across the full temperature range, which matters when your interlock logic depends on precise timing.

Humidity & Condensation: Coastal refineries, paper mills, and water treatment plants push humidity to the edge. The conformal coating on the MU-PDOX02 PCB provides a barrier against moisture ingress and corrosive airborne contaminants — sulfur compounds in refineries, chlorine in water treatment, and paper dust in pulp mills. The module is rated to 95% relative humidity non-condensing, and the coating extends its service life significantly beyond an uncoated board in the same environment.

EMI/RFI Immunity: High-voltage switchgear, VFDs, and large motor starters generate significant electromagnetic interference. The optical isolation on every output channel provides galvanic separation between the control backplane and the field circuit, blocking conducted interference from propagating into the controller. The module’s shielded housing and grounded chassis further attenuate radiated EMI from nearby equipment.

Long-Term Operational Stability: Honeywell’s extended lifecycle support program means the MU-PDOX02 remains a supported spare part even as plants migrate from TDC 3000 to Experion PKS. Units sourced through our supply chain are stored in climate-controlled, ESD-safe environments — not warehouse shelves exposed to temperature extremes and humidity swings that degrade electrolytic capacitors and connector plating over time.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — a major international cargo hub with direct DHL and FedEx flight connections to Europe, the Middle East, Southeast Asia, and the Americas. Here’s exactly how your order moves:

• Order Confirmation → Same-Day Dispatch: Orders confirmed before 14:00 CST are packed and handed to the carrier the same business day. ESD-safe anti-static bag, foam-lined inner box, double-wall outer carton — the module arrives in the same condition it left.
• DHL Express Worldwide: Typical transit times — Europe: 2–3 business days. Middle East: 2–3 business days. Southeast Asia: 1–2 business days. North America: 3–5 business days. Australia: 3–4 business days.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger last-mile coverage. Same-day handoff applies.
• Export Documentation: We prepare the full commercial invoice, packing list, and Certificate of Origin in-house. HS code classification is handled correctly to avoid customs holds — a common cause of delay when sourcing from inexperienced suppliers.
• Real-Time Tracking: Tracking number provided within 2 hours of carrier pickup. You’ll know exactly where your module is at every point in transit.
• Customs Clearance Support: For destinations with complex import requirements (India, Brazil, Saudi Arabia), we provide pre-shipment documentation packages to your local customs broker on request.

When your plant is down and every hour costs money, logistics execution is not a detail — it’s the product. We’ve shipped to refineries in Kazakhstan, paper mills in Finland, and power stations in the Philippines. The process is the same every time: fast, documented, and tracked.
