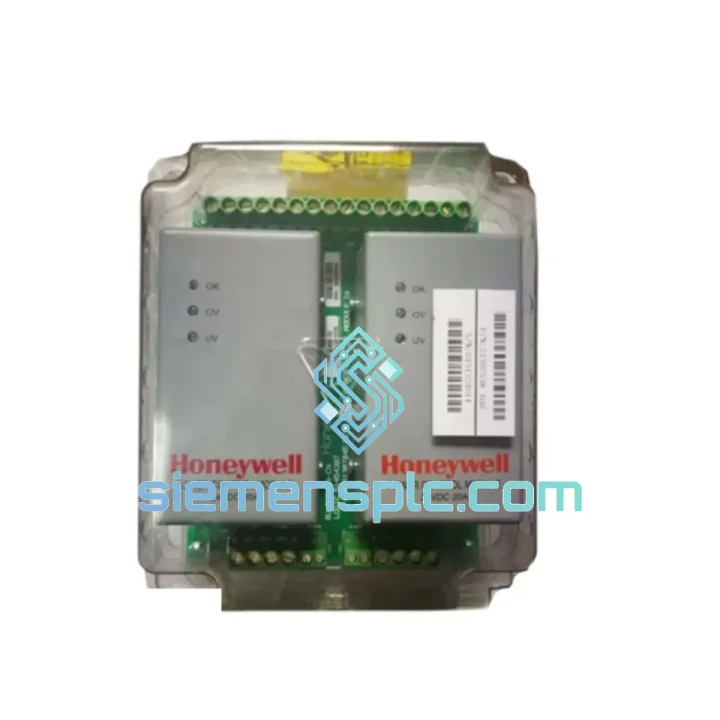

Honeywell 51307038-100 DCS Power Control Module – TDC 3000

Honeywell 51307038-100 Power Control Module: Backbone of TDC 3000 Power Distribution Architecture

The Honeywell 51307038-100 is a Power Control Module Assembly engineered for deployment within the Honeywell TDC 3000 Distributed Control System and Experion PKS platforms. Its primary function within the control loop is to regulate, distribute, and protect DC bus power delivered to card file assemblies — ensuring that field I/O modules, communication processors, and controller cards receive stable, conditioned power within tight voltage tolerances. Without a functioning power control module at this layer, the entire card file loses operational integrity, making this component a single-point-of-failure candidate that demands verified OEM sourcing and rigorous pre-installation testing.

In a TDC 3000 architecture, the power subsystem operates as a parallel-redundant supply chain: primary and secondary power modules share load under normal conditions and execute automatic failover within milliseconds upon detecting a supply fault. The 51307038-100 participates in this redundancy scheme by monitoring its own output rail and asserting a fault signal to the system’s power management logic when voltage deviation exceeds the defined threshold. This deterministic fault propagation prevents cascading failures across the Local Control Network (LCN) backplane.

Procurement engineers and plant maintenance teams sourcing this module should note that the -100 revision suffix designates the baseline hardware configuration. Field installations requiring backward compatibility with older TDC 3000 firmware stacks — particularly those running LCN software prior to Release 500 — must specify this exact revision to avoid firmware-hardware handshake failures during system initialization.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 51307038-100 is built around a linear regulation topology rather than a switching architecture — a deliberate design choice for the TDC 3000 environment where conducted EMI on the DC bus must remain below the thresholds defined in IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity). Switching regulators, while efficient, introduce high-frequency ripple that can corrupt serial communication signals on the LCN backplane. The linear stage in this module maintains output ripple below 50 mV peak-to-peak, preserving signal integrity across all co-resident modules in the card file.

The module incorporates an analog supervisory circuit that continuously samples the output rail at a 1 kHz rate. When the sampled voltage deviates beyond the ±5% window for more than 10 consecutive samples (10 ms), the supervisory circuit asserts a POWER FAULT discrete output on the card file backplane connector. This signal is latched and readable by the card file’s system manager module, which logs the event with a timestamp to the LCN historian — providing full post-mortem traceability without requiring manual intervention.

Thermal management is handled through a combination of a low-thermal-resistance aluminum heatsink bonded to the regulation transistor array and a forced-air convection path aligned with the card file’s internal airflow direction. The junction-to-ambient thermal resistance of the regulation stage is rated at 8°C/W, allowing continuous full-load operation at ambient temperatures up to 55°C without derating. At 60°C ambient, a 10% load derating applies per Honeywell’s thermal design specification.

The PCB layout employs a four-layer stackup with dedicated power and ground planes on inner layers, minimizing loop inductance in the high-current distribution traces. Input filter capacitors are rated at 105°C with a minimum 5,000-hour MTBF at operating temperature — a specification that directly supports the TDC 3000 platform’s design target of 99.9% availability in continuous process environments.

System Integration Benefits

• Deterministic fault isolation: The module’s hardwired fault assertion logic operates independently of software, ensuring power fault events are captured and propagated to the LCN historian within 10 ms — regardless of controller load or scan cycle state.
• Redundancy-ready architecture: Designed for N+1 parallel operation within TDC 3000 card files; load sharing is passive and requires no configuration, reducing commissioning complexity in redundant power topologies.
• Low conducted EMI output: Linear regulation topology keeps DC bus ripple below 50 mV peak-to-peak, protecting co-resident communication and I/O modules from noise-induced data errors.
• Thermal derating transparency: Published thermal curves allow maintenance engineers to calculate remaining thermal margin at any ambient condition, supporting predictive maintenance scheduling without guesswork.
• Revision-controlled compatibility: The -100 suffix is tracked in Honeywell’s hardware compatibility matrix, enabling unambiguous cross-referencing against system firmware release notes and eliminating substitution risk during planned outages.
• Backplane signal integrity: Dedicated power and ground planes in the four-layer PCB reduce ground bounce and supply noise coupling to adjacent module logic circuits, maintaining LCN communication BER within specification.
• Extended capacitor life rating: 105°C-rated input filter capacitors with 5,000-hour MTBF at operating temperature reduce unplanned failure probability during long inter-maintenance intervals typical of continuous process plants.
• Diagnostic transparency: The POWER FAULT discrete output is directly readable by the TDC 3000 system manager, enabling alarm annunciation and historian logging without additional wiring or software configuration.
• Drop-in mechanical form factor: Single-slot card file footprint with standard Honeywell backplane connector pinout allows replacement without card file modification or re-wiring, minimizing mean time to repair (MTTR) during unplanned outages.
• Broad platform coverage: Compatible across TDC 3000 LCN/UCN and Experion PKS C200/C300 environments (revision-dependent), reducing spare parts inventory complexity for sites operating mixed-generation Honeywell DCS hardware.

Quality Assurance & Global Logistics

Every Honeywell 51307038-100 unit dispatched from our Xiamen, China facility undergoes a structured acceptance protocol before shipment authorization is issued. New OEM units are verified against Honeywell’s original part number label, date code, and packaging seal. Refurbished units complete a full functional test sequence that includes output voltage regulation verification under 25%, 50%, 75%, and 100% rated load, fault assertion logic validation, and thermal cycling across the operating temperature range. Each unit ships with a signed test report documenting measured parameters and pass/fail criteria.

Packaging follows IEC 60068-2-27 shock and IEC 60068-2-64 vibration guidelines for electronic module transport: anti-static bag, foam-lined inner carton, and double-wall export-grade outer carton rated for air and sea freight. For international shipments, commercial invoice, packing list, and certificate of origin are prepared as standard documentation. HS code classification and export licensing compliance are handled in-house, with typical customs clearance documentation turnaround of one business day.

Dispatch lead time for in-stock units is 1–3 business days from order confirmation. International express freight (DHL, FedEx, UPS) to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas typically achieves door-to-door delivery within 3–7 business days. Bulk orders for plant turnarounds or shutdown projects are accommodated with dedicated logistics coordination and guaranteed dispatch scheduling.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days from fault confirmation, minimizing plant downtime exposure.
