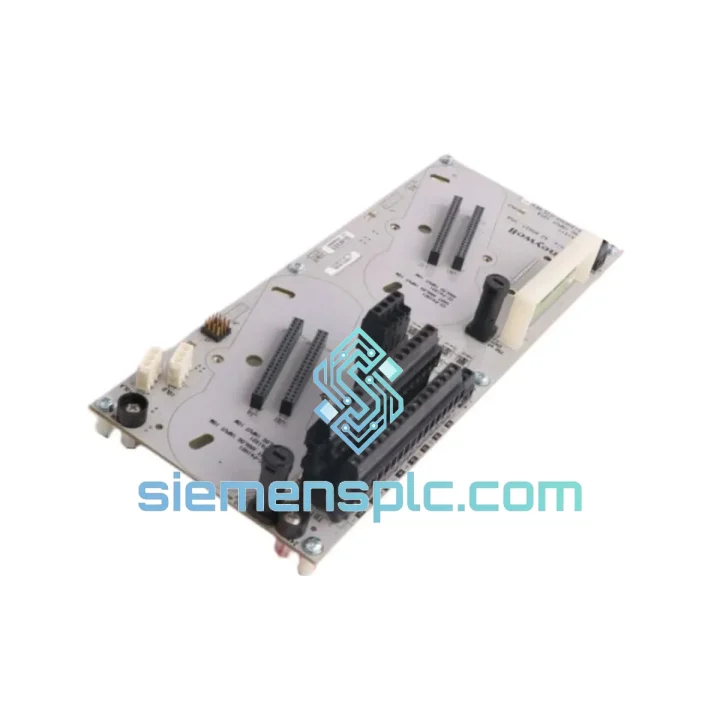

Honeywell 51308363-175 CC-TAIX01 Analog Input Module – Experion PKS C300 Series

Honeywell 51308363-175 CC-TAIX01 – 8-Channel Analog Input Module for Experion PKS C300 Distributed Control Architecture

The Honeywell 51308363-175 CC-TAIX01 is an 8-channel analog input module engineered for deployment within the Honeywell Experion PKS distributed control system, specifically interfacing with the C300 Controller via the Field Interface Module (FIM) backplane. Its primary function in a control loop is signal conditioning and digitization of field-level analog measurements — converting 4–20 mA current loops, 0–10 V voltage signals, thermocouple millivolt outputs, and RTD resistance values into 16-bit digital representations that the C300 Controller processes for closed-loop regulation, alarm management, and historian archiving.

In a typical Experion PKS architecture, the CC-TAIX01 occupies a slot on the IOTA (Input/Output Termination Assembly) base, which provides both mechanical retention and electrical connectivity to the FIM backplane bus. The FIM aggregates I/O data from multiple IOTA-mounted modules and transmits it to the C300 Controller over a deterministic, time-division-multiplexed backplane protocol. This architecture decouples field wiring from controller logic, enabling hot-swap module replacement without process interruption — a critical operational requirement in continuous-process industries such as refining, petrochemicals, and power generation.

Each of the eight input channels on the CC-TAIX01 is individually configurable through Honeywell Control Builder software, allowing engineers to assign signal type, engineering unit range, filter time constant, and alarm thresholds on a per-channel basis. The module’s 16-bit analog-to-digital converter delivers a resolution of approximately 0.0015% of full scale, which translates to sub-milliamp discrimination on a 4–20 mA span — sufficient for precision flow, pressure, and temperature measurement in tightly regulated process loops.

The CC-TAIX01 draws its operating power entirely from the IOTA backplane, eliminating the need for external field power supplies to the module itself. This simplifies panel design and reduces the number of potential failure points in the power distribution architecture. The module’s operating temperature range of 0°C to 60°C and humidity tolerance of 5–95% RH (non-condensing) align with standard industrial control room and marshalling cabinet environments.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CC-TAIX01’s internal architecture is organized around three functional layers: field-side signal conditioning, galvanic isolation, and backplane-side digital processing.

Optical Isolation Architecture: Each input channel passes through a dedicated optocoupler stage before reaching the A/D conversion circuitry. This channel-to-channel isolation — rated to withstand transient voltages typical of industrial field wiring environments — prevents ground loop currents from propagating between channels and eliminates common-mode interference induced by long cable runs in electrically noisy plant environments. The isolation barrier also protects the backplane bus from field-side fault conditions, including wiring short circuits and transient overvoltage events.

Signal Conditioning Front-End: Before digitization, each analog input passes through a programmable gain amplifier (PGA) and a low-pass anti-aliasing filter. The PGA scales the input signal to the full dynamic range of the 16-bit ADC regardless of the configured input type (mA, V, thermocouple mV, or RTD Ω), maximizing conversion accuracy across all signal ranges. The anti-aliasing filter attenuates high-frequency noise components above the Nyquist frequency of the sampling rate, preventing spectral folding artifacts in the digitized output.

EMC Design: The module’s PCB layout employs a multi-layer stackup with dedicated ground planes separating analog and digital circuit domains. Ferrite bead filters are placed at the backplane connector interface to suppress high-frequency conducted emissions. The module housing provides shielding continuity through the IOTA base chassis, contributing to the system’s overall IEC 61000-4-3 radiated immunity performance. These design choices are particularly relevant in substations and motor control centers where variable-frequency drives generate significant broadband electromagnetic interference.

Backplane Communication Protocol: The CC-TAIX01 communicates with the FIM over a synchronous serial protocol operating on the C300 backplane bus. Data transfer is scheduled within fixed time slots allocated by the FIM’s bus arbiter, ensuring deterministic latency from field measurement to controller scan. The module’s local microcontroller buffers digitized channel data and responds to FIM polling cycles without introducing jitter — a requirement for control loops with scan periods in the 100–500 ms range.

Open-Circuit and Over-Range Detection: The module implements hardware-level diagnostics for each channel, detecting open-circuit conditions on 4–20 mA loops (signal below 3.8 mA threshold) and over-range inputs exceeding the configured span. These fault states are reported as module status bits readable by the C300 Controller and surfaceable in Experion PKS operator displays, enabling maintenance personnel to identify field instrument faults without physical inspection of the marshalling cabinet.

System Integration Benefits

• Zero-Configuration Backplane Discovery: Upon insertion into a powered IOTA base, the CC-TAIX01 is automatically recognized by the FIM and registered in the Experion PKS hardware tree without requiring manual address configuration or DIP switch settings, reducing commissioning time per module to under five minutes.
• Per-Channel Engineering Unit Scaling: Control Builder allows engineers to define linear or square-root scaling functions, engineering unit labels, and decimal precision for each channel independently, eliminating the need for external signal conditioners or scaling transmitters in most applications.
• Integrated Alarm Management: High-high, high, low, and low-low alarm thresholds are configured and stored within the module’s parameter database, with alarm state changes transmitted to the C300 Controller in the same scan cycle as the process value — ensuring alarm response latency is bounded by the controller scan period rather than by communication polling overhead.
• Hot-Swap Capability: The IOTA base design allows the CC-TAIX01 to be removed and reinserted while the system remains powered and the process continues running. The FIM detects module removal, sets affected channel values to a configurable fault state (hold last value or go to defined safe value), and automatically resumes normal data acquisition upon module reinsertion — without requiring a controller restart.
• Historian Integration: Process values from all eight channels are automatically available to the Experion PKS historian (EHDS) for continuous archiving at configurable compression rates, supporting regulatory compliance data retention requirements in pharmaceutical and chemical manufacturing environments.
• Diagnostic Transparency: The module exposes a structured set of diagnostic parameters — including channel fault status, A/D conversion quality flags, and module internal temperature — accessible through standard Experion PKS system displays and exportable via OPC DA/UA interfaces to third-party asset management systems.
• Firmware Compatibility Span: The CC-TAIX01 is supported across six major Experion PKS firmware releases (R400 through R520), providing a long service horizon for installed base systems and reducing the risk of forced hardware replacement during DCS software upgrades.
• Hazardous Area Suitability: FM Class I Division 2 certification permits installation of the associated IOTA base in Zone 2 / Division 2 classified areas when used with appropriately rated enclosures, expanding the module’s applicability to offshore platforms, tank farms, and chemical plant field junction boxes.

Quality Assurance & Global Logistics

Every Honeywell 51308363-175 CC-TAIX01 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Incoming stock is inspected against Honeywell’s published hardware revision markings and date codes to confirm authenticity and exclude counterfeit or remarked components — a documented risk in the industrial automation aftermarket. Each module is powered on and subjected to a functional channel scan across all eight inputs using calibrated signal sources, verifying A/D conversion accuracy against the ±0.05% specification before packaging.

Units are shipped in anti-static packaging with foam cushioning rated for the module’s weight and form factor, consistent with Honeywell’s original factory packaging standards. Traceability documentation — including certificate of conformance, functional test report, and serial number record — is included with each shipment and available in digital format upon request for quality management system (QMS) compliance purposes.

From Xiamen, we dispatch via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–5 business days to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas. For time-critical plant shutdowns or emergency maintenance scenarios, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. All shipments are fully insured and tracked end-to-end, with proactive status updates provided to the buyer’s procurement contact.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days from fault confirmation, minimizing plant downtime exposure for our customers.
